0.7mm SPST Right-Angle Micro Tactile Switch
- Cat No:
- SP0604
Sold as:1 Each
In Stock$1.20
Description
Normally open SPST right-angled micro tactile switch.
Actuating force: 130gf
Specifications
- Switch Type
- Tactile Pushbutton
- Throws / Positions
- 1.0 pos
- Switch Function
- Momentary
- Contact Resistance
- 100.0 mΩ
- Poles / Contacts
- 1.0 pole
- Insulation Resistance
- 100.0 MΩ
- Dielectric Strength
- 100.0 V
- Mechanism Material
- Plastic
- Switch Connection
- Solder Legs
- Switch Colour Coded
- Black
- Actuator Height
- 0.7 mm
- Pole Throw Type
- SPST
- Actuator Diameter
- 3.4 mm
- DC Voltage
- 12.0 V
- DC Current Rating
- 50.0 mA

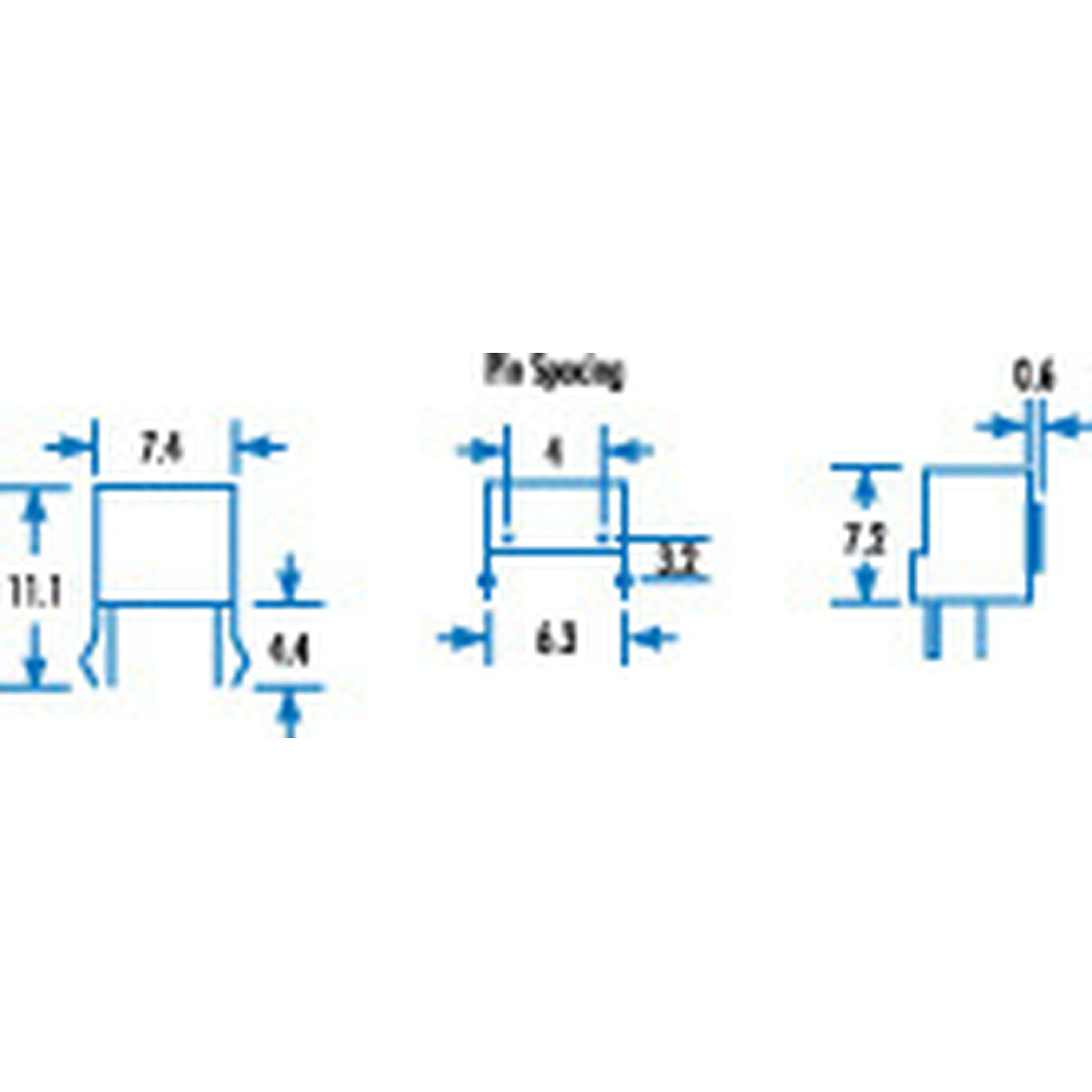

- Width
- 7.4mm
- Height
- 7.2mm
- Depth
- 6.2mm
- Switch Type
- Tactile Pushbutton
- Pole Throw Type
- SPST
- Poles / Contacts
- 1.0 pole
- Throws / Positions
- 1.0pos
- Switch Function
- Single Action Momentary
- Switch Connection
- Solder Legs
- Switch Colour Coded
- Black
- Contact Resistance
- 100.0mΩ
- Insulation Resistance
- 100.0mΩ
- Dielectric Strength
- 100.0V
- Mechanism Material
- Plastic
- Actuator Height
- 0.7mm
- Actuator Diameter
- 3.4mm
- DC Voltage
- 12.0V
- DC current rating
- 50.0mA
- Packaged Dimensions
- 0.5cm(Length) x 0.5cm(Width) x 1.0cm(Height)
