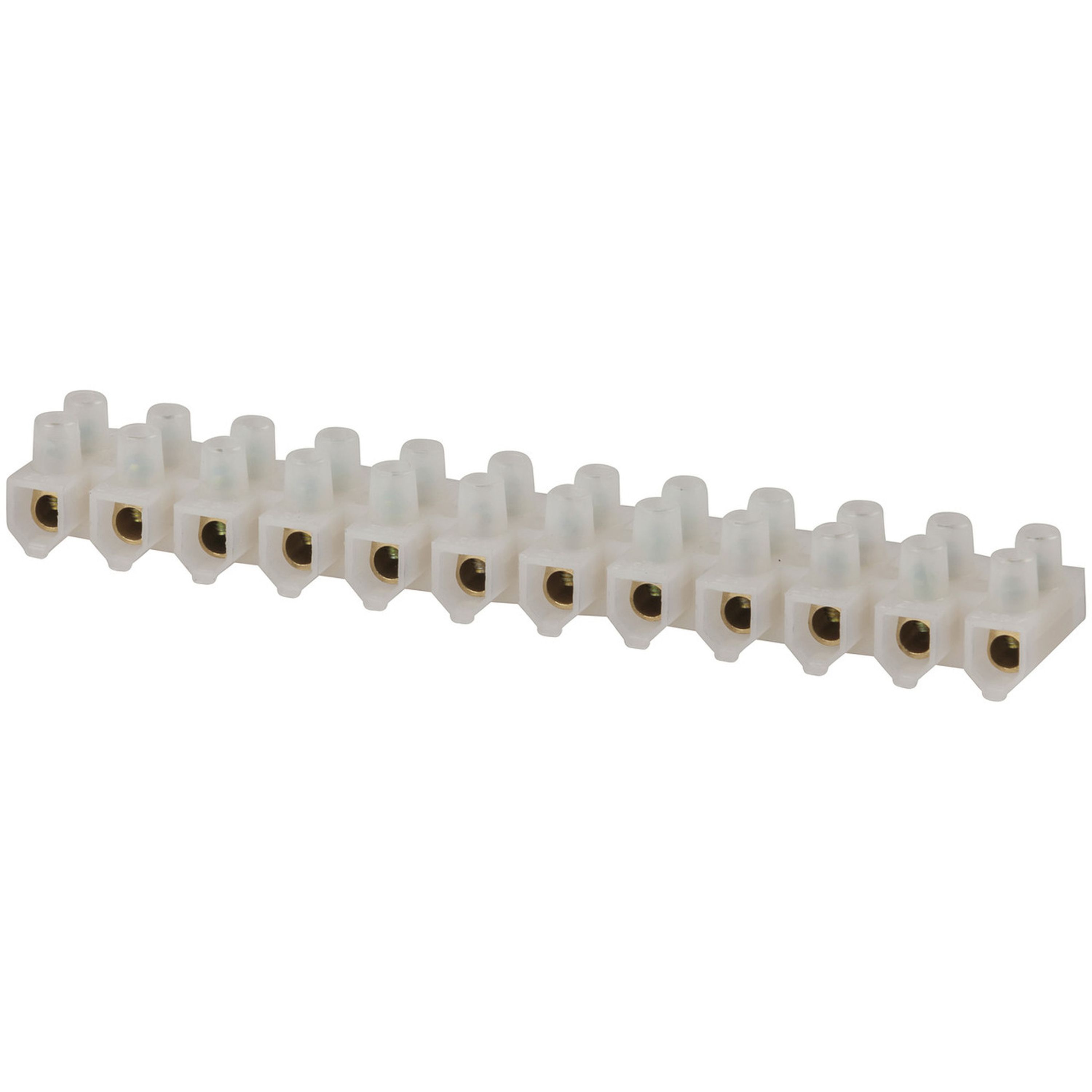

10 Amp 12-way Screw Terminal Strip

Cat No:: HM3196

Sold as:1 Each

In Stock

Select Variant

$2.90

Description

12 way & capable of being divided with a sharp knife. Each terminal block has a sturdy mounting hole on a fixed pitch.

Temperature: -35°C ~ 110°C

CurrentCable dia.LengthPitchCat No.6A3.3mm114.5mm10mmHM-319410A4.2mm128.8mm11mmHM-319615A4.5mm136.8mm12mmHM-320030A5.6mm164.5mm15mmHM-319860A6.6mm193mm16.3mmHM-3204

Specifications

Type: Screw Terminal
Device: Joining Terminal
Attachment Method: Screw Terminals
Cable Entry Diameter: 4.2mm
Number of Contacts: 12.0pc
Terminal Spacing: 11.0mm
Body Material: Nylon
AC Voltage rating: 250.0V,450.0V
AC current rating: 10.0A
Type: Terminal Block
Device: PCB Mount
Length: 15mm
Number of Contacts: 3.0
Terminal Spacing: 5.0mm
Attachment Method: Solder
Body Material: Polyamide
Contact Material: Brass
AC Voltage Rating: 250V
AC Current Rating: 10A
Insulation Dielectric Voltage Rating: 1500V AC
Insulation Resistance: 500MΩ
Length: 128.8mm
Packaged Dimensions: 13.2cm(Length) x 2.1cm(Width) x 1.7cm(Height)
