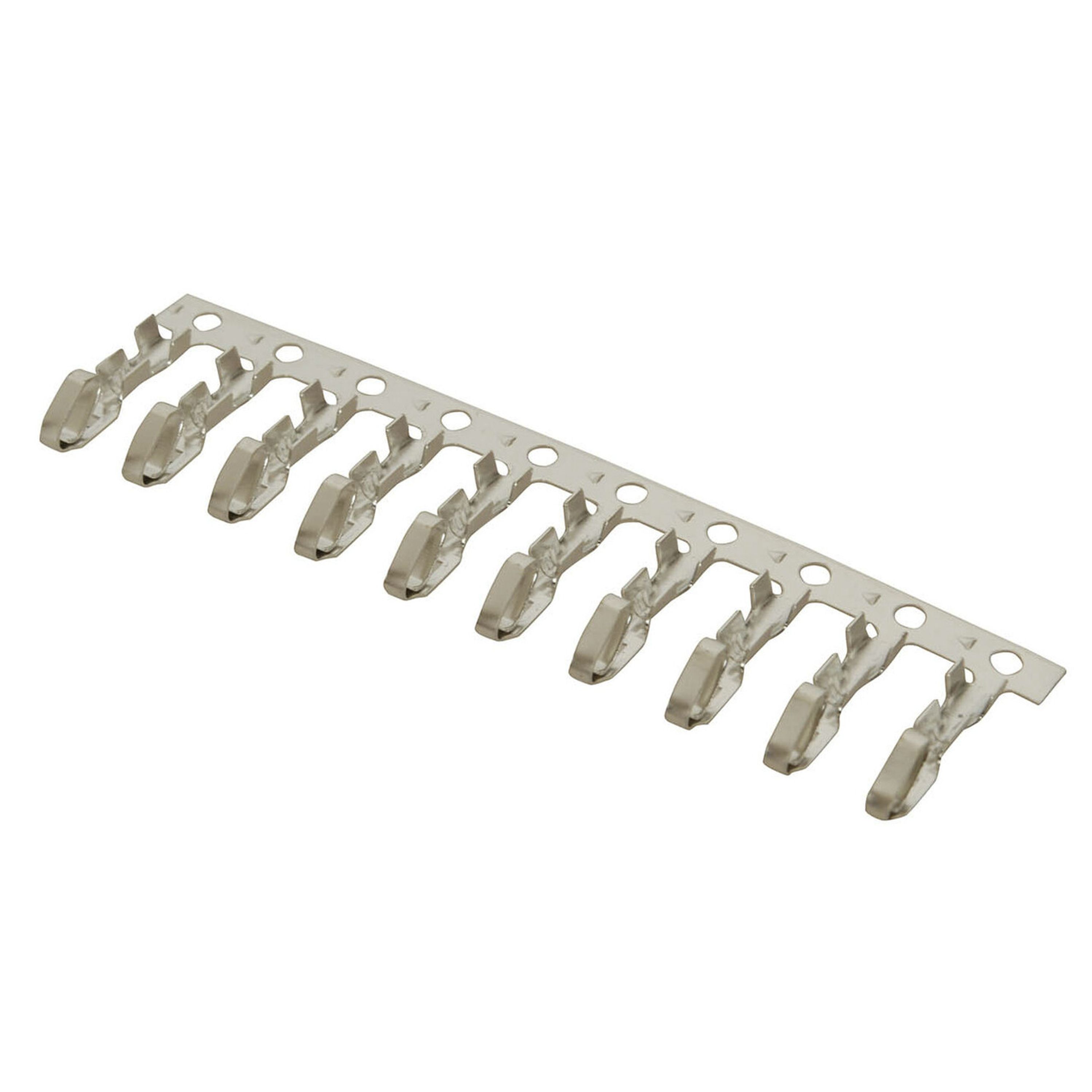

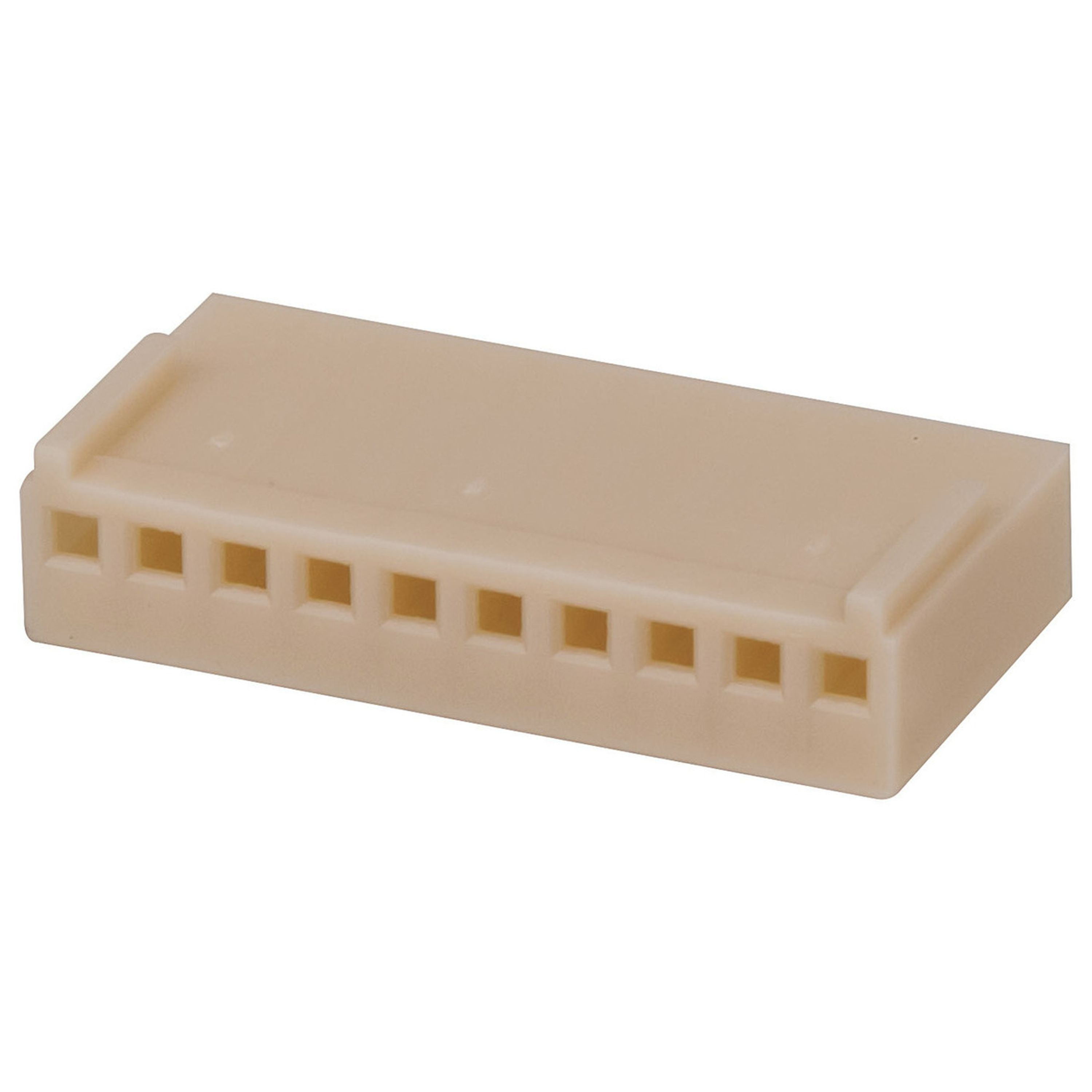

10 Pin 0.1in Header with Crimp Pins - 2.54mm Pitch

Description

A range of connectors for PCB mounting that allow circuit boards to be plugged together at right angles or end-to-end, or cables to be plugged onto circuit boards at right angles or end-on at the edge of the PCB. Both plugs and sockets may be butted up end-to-end to form connectors with any number of ways from 2 upwards.

Both plugs are wafer design into which square, tin-plated brass pins have been inserted. These pins protrude 3.4mm on one side, and should be soldered to the PCB. The nylon wafer sits on the PCB and is 3.3mm thick. The back provides locking and polarising.

Features:
Normal force: 200g min
Housing: UL 94v-0 white nylon
Temperature: 0 to +75°C

Specifications

Type: Single Row Header
Device: Socket
Attachment Method: Crimp
Pack Quantity: 1.0pc
Number of Pins: 10.0pc
Pin Spacing: 2.54mm (0.1")
Pin Size: 0.9mm
Insulation Dielectric Voltage Rating: 1500.0V
Insulation Resistance: 50.0MΩ
header locking: true
header polarised: true
Mating Force: 199.0g
Contact Insertion Force: 681g
Contact Retention to Housing: 3.63kg
Operating Temperature: 75.0°C
DC Voltage: 250.0V
DC current rating: 2.5A
Type: Single Row Header
Pack Quantity: 1 pc
Number of Pins: 10.0
Pin Spacing: 2.54mm
Device: Socket
Attachment Method: Crimp
Pin Size: 0.9mm
Insulation Dielectic Voltage Rating: 1500V
Insulation Resistance: 50MΩ
Operating Temperature: 75°C
Header Locking: Yes
Header Polarised: Yes
Contact Retention to Housing: 3.63kg
Mating Force: 199g
Contact Insertion Force: 681g
Length: 7.6mm
Width: 12.9mm
Height: 6.3mm
Packaged Dimensions: 7.0cm(Length) x 5.0cm(Width) x 0.5cm(Height)
