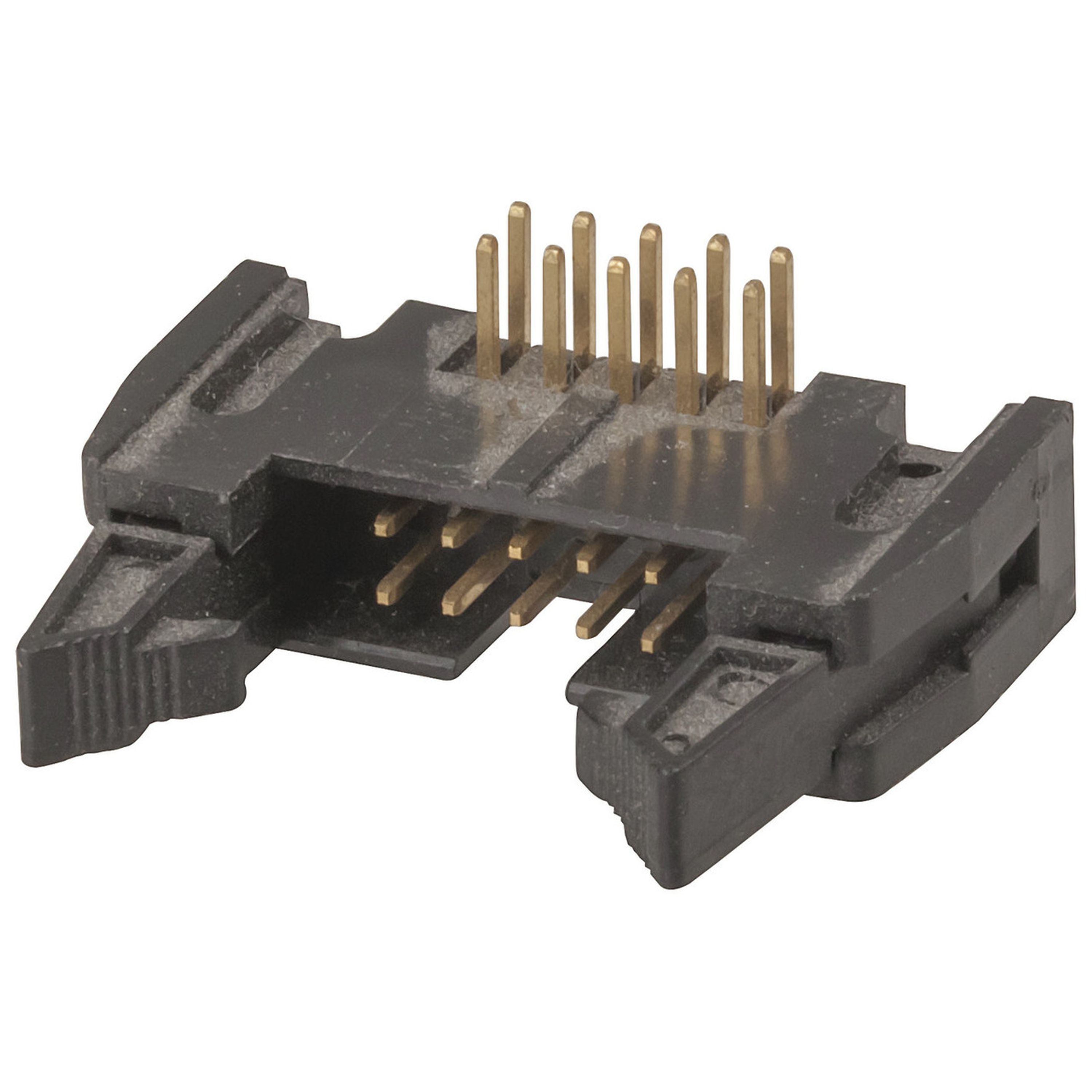

10 Pin IDC Locking Right Angle Header
- Cat No:
- PP1150
In Stock
$1.80
Description
Horizontal facing 10 pin IDC plug, suitable for PCB mounting. Includes locking mechanism.
Specifications
- Type
- Double Row Header
- Device
- Plug
- Attachment Method
- Solder Tag
- Number of Pins
- 10.0pc
- Pin Spacing
- 2.54mm (0.1")
- Pin Material
- Gold Plated
- Right Angle Mount
- true
- header locking
- true
- Type
- Double Row Header
- Pack Quantity
- 1 pc
- Number of Pins
- 10.0
- Pin Spacing
- 2.54mm
- Pin Size
- 0.64mm*
- Insulation Dielectic Voltage Rating
- 500V*
- Insulation Resistance
- 1000MΩ*
- Device
- Plug
- Attachment Method
- IDC
- Header Locking
- Yes
- Operating Temperature
- 105°C*
- Mating Force
- 200g*
- Header Polarised
- Yes
- Packaged Dimensions
- 3.0cm(Length) x 2.5cm(Width) x 1.0cm(Height)
