POWERTECH

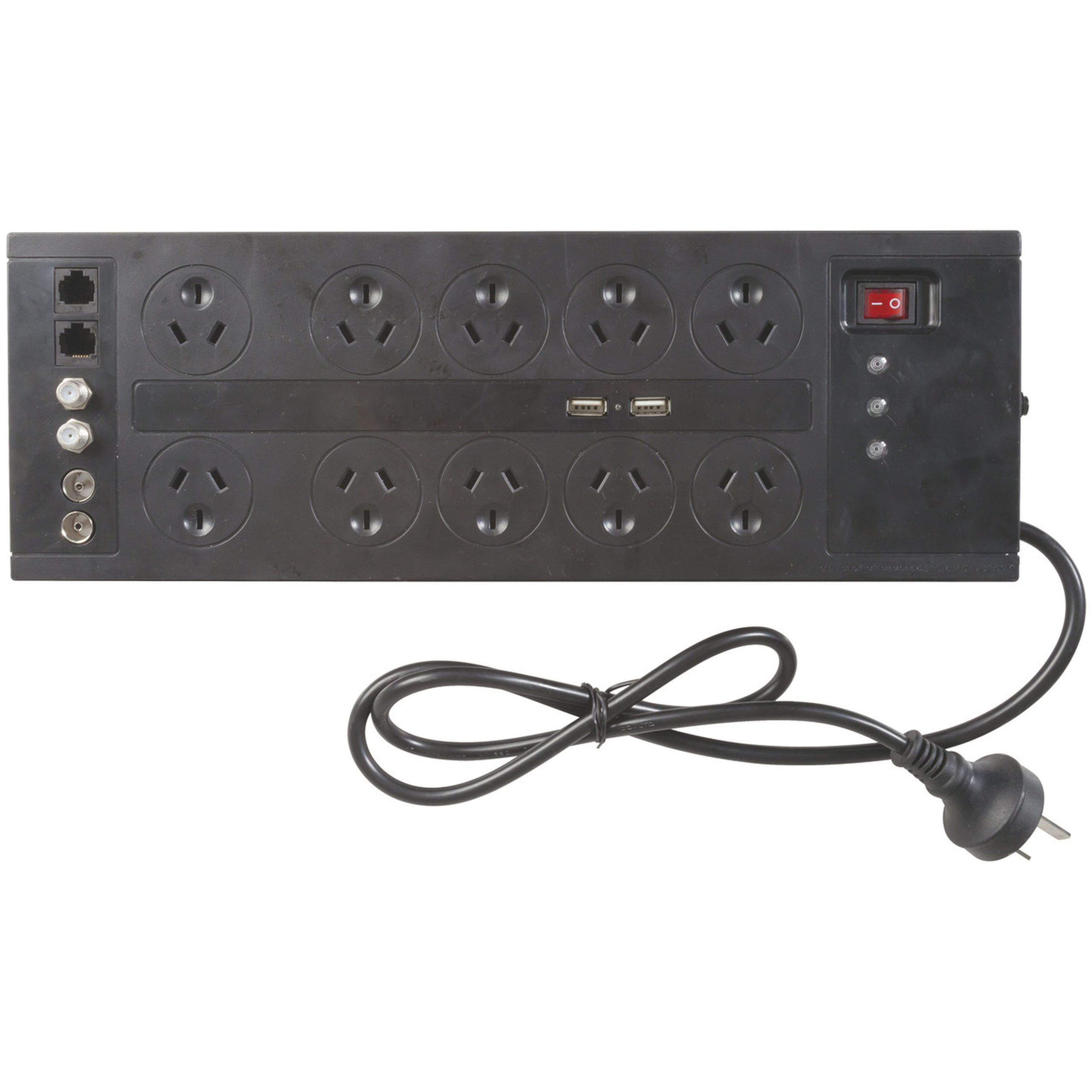

10 Way Home Theatre Surge Protected Powerboard
- Cat No:
- MS4033
Sold as:1 Each
In Stock$139.00
Description
This is the perfect addition to your home theatre, music gear or home office setup. This powerboard features 10 surge and spike protected sockets, including 2 wide sockets for large power adaptors. It also includes 2 USB ports for charging smartphones and tablets. Surge protection and EMI/RFI filtering protect against mains power fluctuations, with each socket protected three ways: active, neutral and earth. Additional protection is provided by the built-in circuit breaker. This powerboard also has telephone and data protection (for a network connection), satellite/cable TV video protection, and protection for your TV antenna.
Features:
- Separate Telephone/Data Line and TV Antenna/Cable TV Protection
- 144,000A Surge Protection
- 2 USB Charging Sockets
- 2 Extra Wide Sockets
Power Filter:
- Surge Protection: Metal Oxide Varistors
- Supply Voltage: 250VAC
- Current Rating: 10A max. 2500W
- Protection Mode: A-N, N-E, E-A
- Max Surge Current: 144,000A
- Typical Capacitance: 400pF
- Clamping Voltage (at 50A): <775V
- Energy Absorption: 4300 joules
- Response Time: <2ns
- Filtration: EMI/RFI
Telephone Line:
- Filter Type: Gas Tube Arrestor
- Surge Current: 1200A (1kV/µs)
- Impulse Discharge Current: 10kA (8/20µs)
- Capacitance: <5pF
- Clamping Voltage: 600V
- TV Surge Protection: Gas Tube Arrestor
- DC Strike Voltage: 230V to max. 600V
- Surge Current: 4500A
- Energy Dissipation: 225 joules
- Response Time: <10ns
Included:
- 1 x 1.8m TV Coax Plug to TV Coax Plug
- 1 x 1.8m RJ45 to RJ45
- 1 x 1.8m RJ12 to RJ12
- 1 x 1.8m F61 Plug to F61 Plug
- 2 x RJ45 to RJ12 reducers
Specifications
- USB Voltage Output Range
- 1.0V,5.0V,1.0V
- USB Current Output
- 1.0A,2.0A
- Mains Voltage Range
- 230.0V,240.0V
- Frequency
- 50.0Hz-50.0Hz-50.0Hz
- Mains Max Current
- 10.0A
- Max Input Power
- 2.0W
- Mains Item connection
- Mains AU/NZ 3 Pin
- Mains Lead Length
- 1.0m
- Type of adaptor
- Power Board
- Number of Sockets
- 10.0pc
- Input Type
- Mains AU/NZ 3 Pin
- Input Connection
- Plug
- Output Type
- Mains AU/NZ 3 Pin
- Output Connection
- Socket
- Output Quantity
- 10.0pc
- Lead Length
- 1.0m
- Input Type
- Mains AU/NZ 3 Pin
- Input Connection
- Plug
- Output Type
- Mains AU/NZ 3 Pin
- Output Quantity
- 10.0pc
- Output Connection
- Socket
- USB Charge Port
- 2.0pc
- Additional Surge Protection
- RJ12
- Additonal Filter Type
- Metal Oxide Varistor
- Surge Current
- 1.0A
- Imulse Discharge Current
- 10.0A
- Capacitance
- 5.0pF
- Clamping Voltage
- 600.0V
- Protection Device
- Metal Oxide Varistor
- Maximum Surge Current
- 144.0A
- Clamp Voltage
- 775.0V
- Energy Absorption
- 1550.0J
- Response Time
- 2.0ns
- Supported USB Standards
- USB 2.0
- Number of USB ports
- 2.0pc
- Reset Method
- Manual Pushbutton,Manual Pushbutton
- Overload Trip Current
- 10.0A,10.0A,10.0A,10.0A
- Length
- 360.0mm
- Width
- 125.0mm
- Height
- 32.0mm
- Packaged Dimensions
- 45.5cm(Length) x 24.6cm(Width) x 5.3cm(Height)
