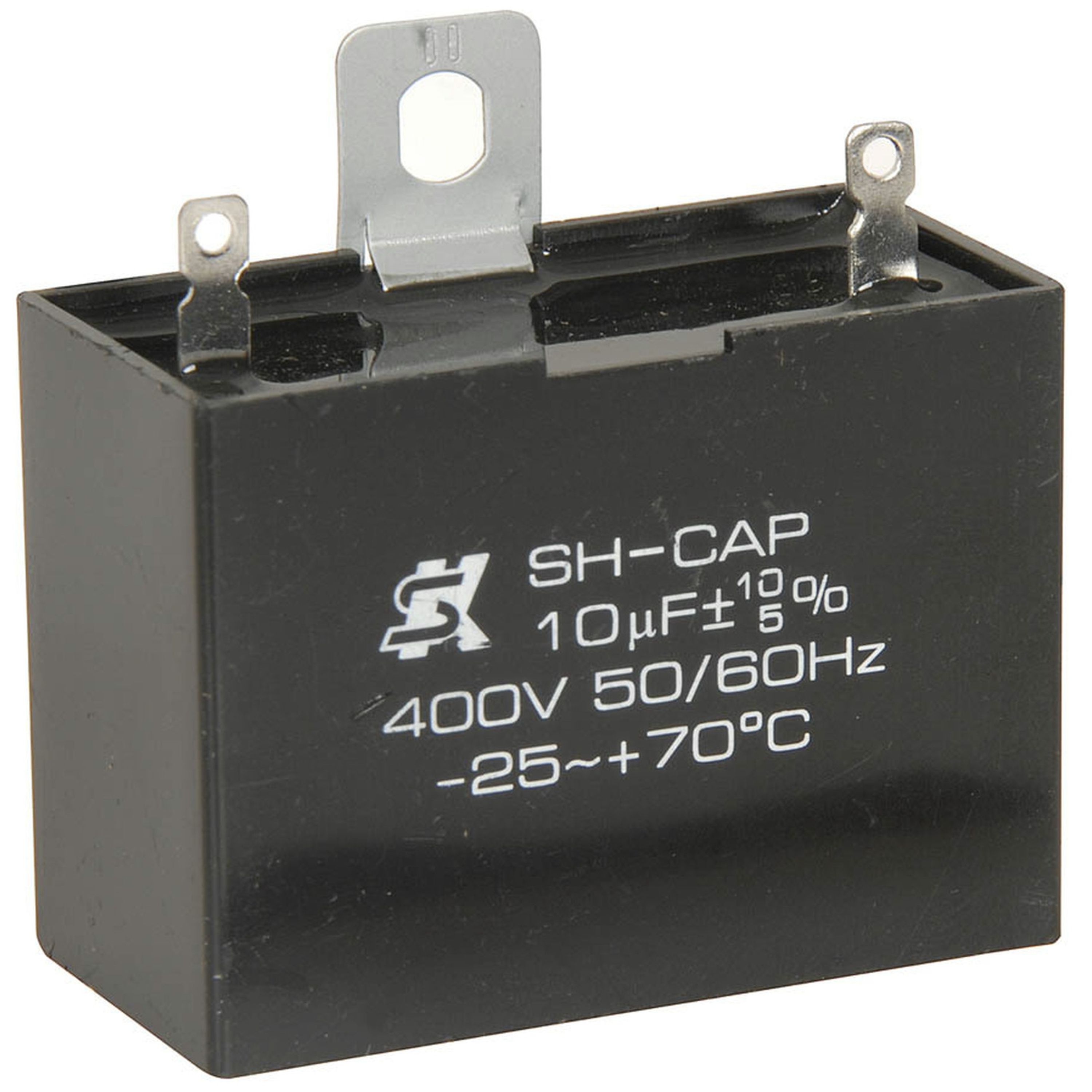

10uF 400VAC Run Start Capacitor

Cat No:
RU6602
Sold as:1 Each
In Stock

$19.90

Description

These capacitors are designed to replace the original capacitor that has failed. You must replace the part as the motor may simply not work, draw excessive current or have porr torque.

These are suitable for motors operating at up to 400VAC and common values are offered here. Please note it is important to choose the correct value for the motor otherwise the starting torque of the motor will change.

Specifications

Capacitor type
Motor start
Component Type
Polypropylene Capacitor
Pack Quantity
1.0pc
Passive mount type
Chassis
Passive connector type
Spade Terminals
Component package
Square pack
Passive number of legs
2.0 count
Passive marking code
Printed
DC Voltage
400.0V
Item capacitance
10.0µF
Capacitance tolerance
20.0%
Width
50.0mm
Height
36.0mm
Depth
25.0mm
Packaged Dimensions
5.0cm(Length) x 2.4cm(Width) x 4.8cm(Height)
