Clearance
12V - 30V, 65VA, 6A Multi-Tapped/Dual Type 2170 Transformer
- Cat No:
- MM2015
Sold as:1 Each
Out of Stock$47.90
Description

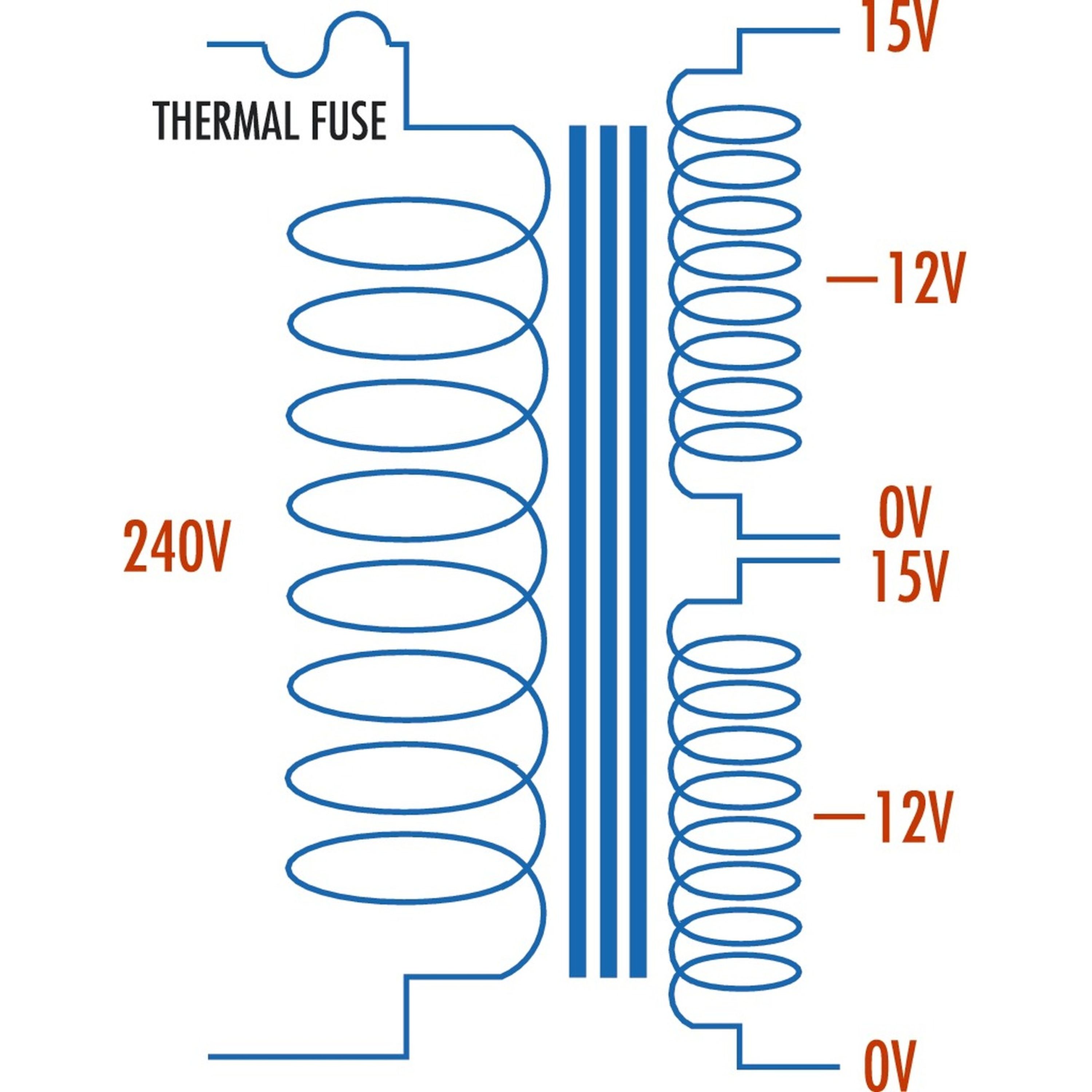

Traditional laminated iron core transformers suitable for new projects, hobby projects or as a replacement in existing equipment. They have a thermal fuse built into the primary winding for added safety and a wide variety is available to suit your specific needs.
Twin outputs may be wired in series to increase voltage or in parallel (in phase only) to increase current.
• Primary Connection: 200mm Fly Leads
Twin outputs may be wired in series to increase voltage or in parallel (in phase only) to increase current.
• Primary Connection: 200mm Fly Leads
Specifications
- Type of Transformer
- Laminated Core
- Case Type
- 2170.0
- Primary Winding Connection
- Flyleads
- Secondary Winding Connection
- Solder Tags
- Secondary Winding Configuration
- Multi-tapped
- Temperature Rise Above Ambient at Rated Power
- 70.0°C
- Regulation
- 7.0%
- Core Material
- Laminated Iron
- Magnetising Current
- 80.0mA

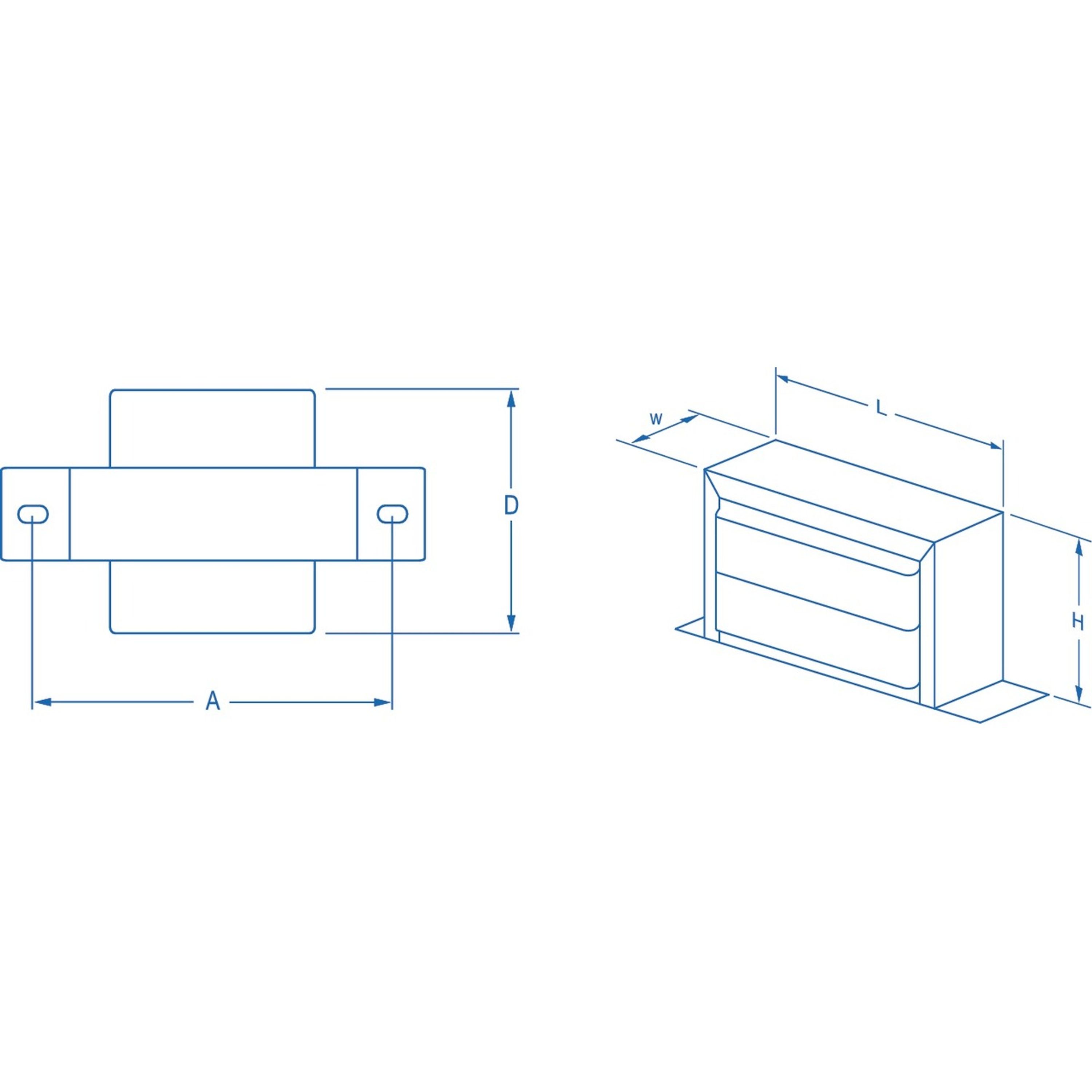

- Mount Spacing (A)
- 91.0mm
- Core Winding Depth (D)
- 76.0mm
- Case Length (L)
- 80.0mm
- Case Width (W)
- 44.0mm
- Case Height (H)
- 68.0mm
- Mains Voltage Range
- 240.0V
- Max Input Power
- 65.0VA
- AC Voltage rating
- 12.0V,12.0V,15.0V,15.0V
- AC current rating
- 2.2A,2.2A
- Type of converter or transformer
- laminated/toroidal transformer
- Weight
- 1600.0g
- Packaged Dimensions
- 10.8cm(Length) x 8.2cm(Width) x 8.1cm(Height)
