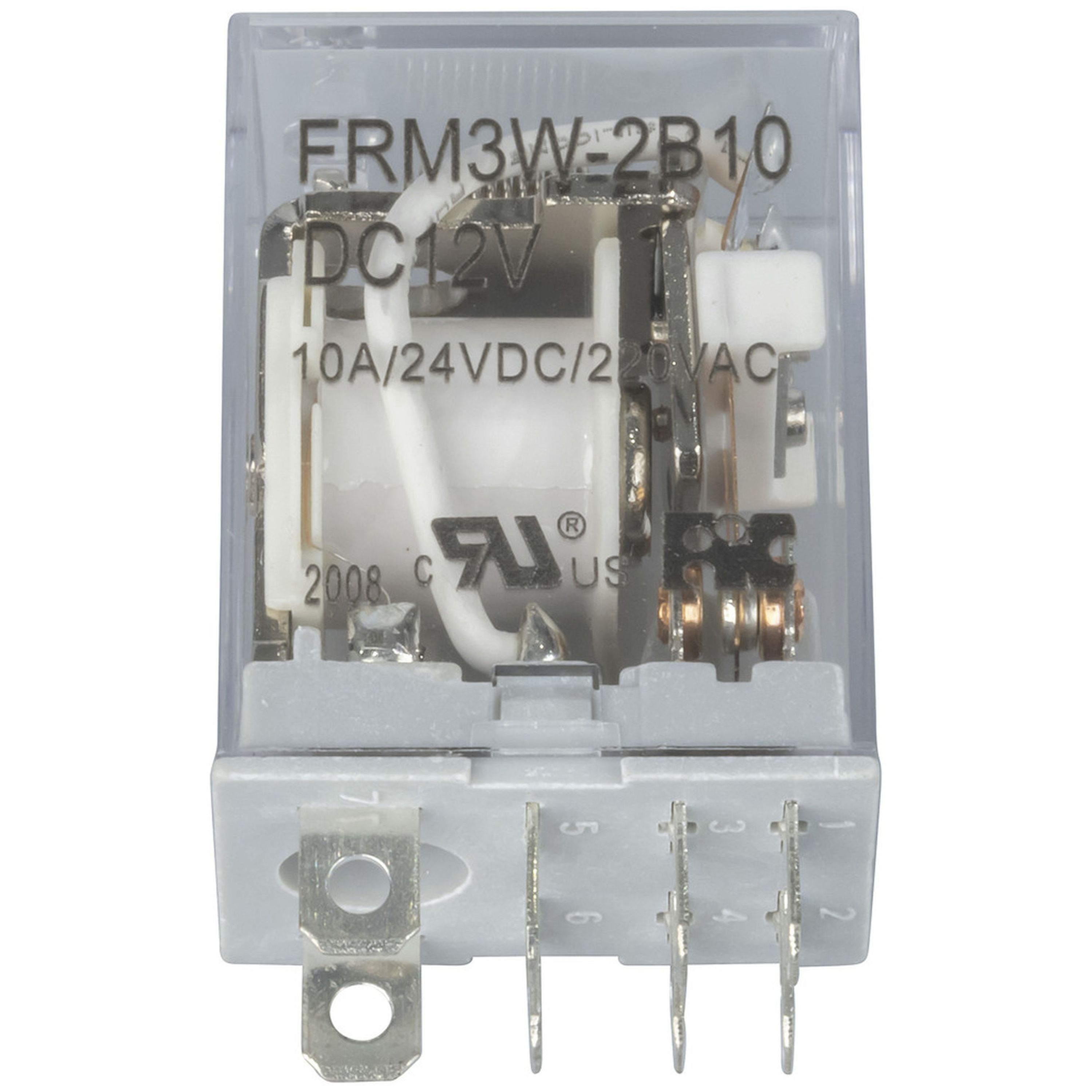

12V DPDT Power Relay - 10A 240VAC/24VDC Contacts

Cat No:
SY4065
Sold as:1 Each
Carton size:500
In Stock

$11.90

Description

High power DPDT relay suitable for switching loads up to 10A. Designed to suit the SY-4064 DIN rail mounting cradle. Can also be installed with direct connection using 5mm spade lugs.

Specifications

Device Type
Cradle Mounting Relay
Input
DC

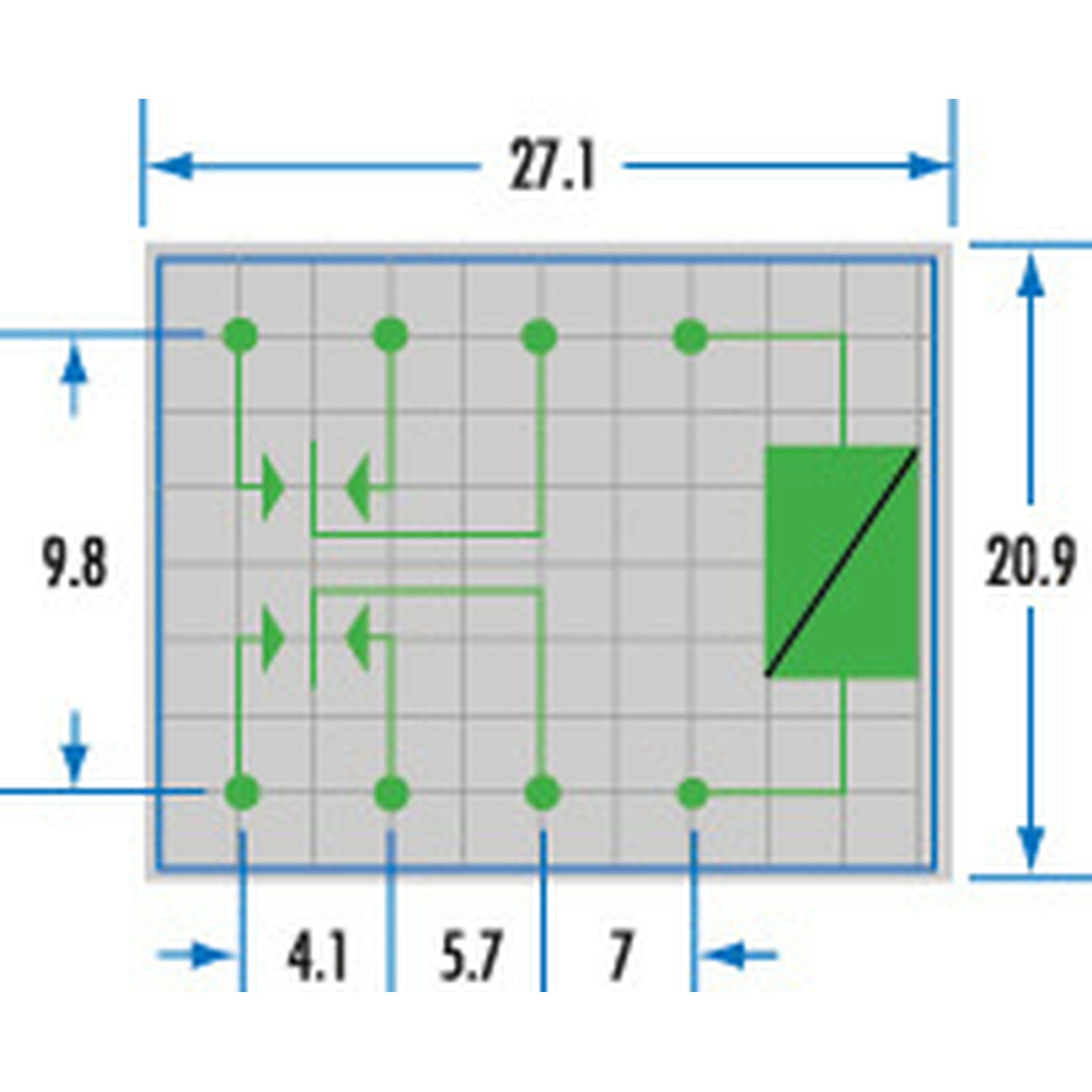

Contact format
DPDT
Nominal Voltage
12V
Coil Resistance
160Ω
Coil Current
75mA
AC Contact Voltage
240V, 240V
AC Switching Current (Opening)
10A - 10A
DC Contact Voltage
24V, 24V
DC Switching Current (Opening)
10A
Operation Time
25ms
DC Voltage
12V
DC Current Draw
75mA
Item connection
Spade Terminals

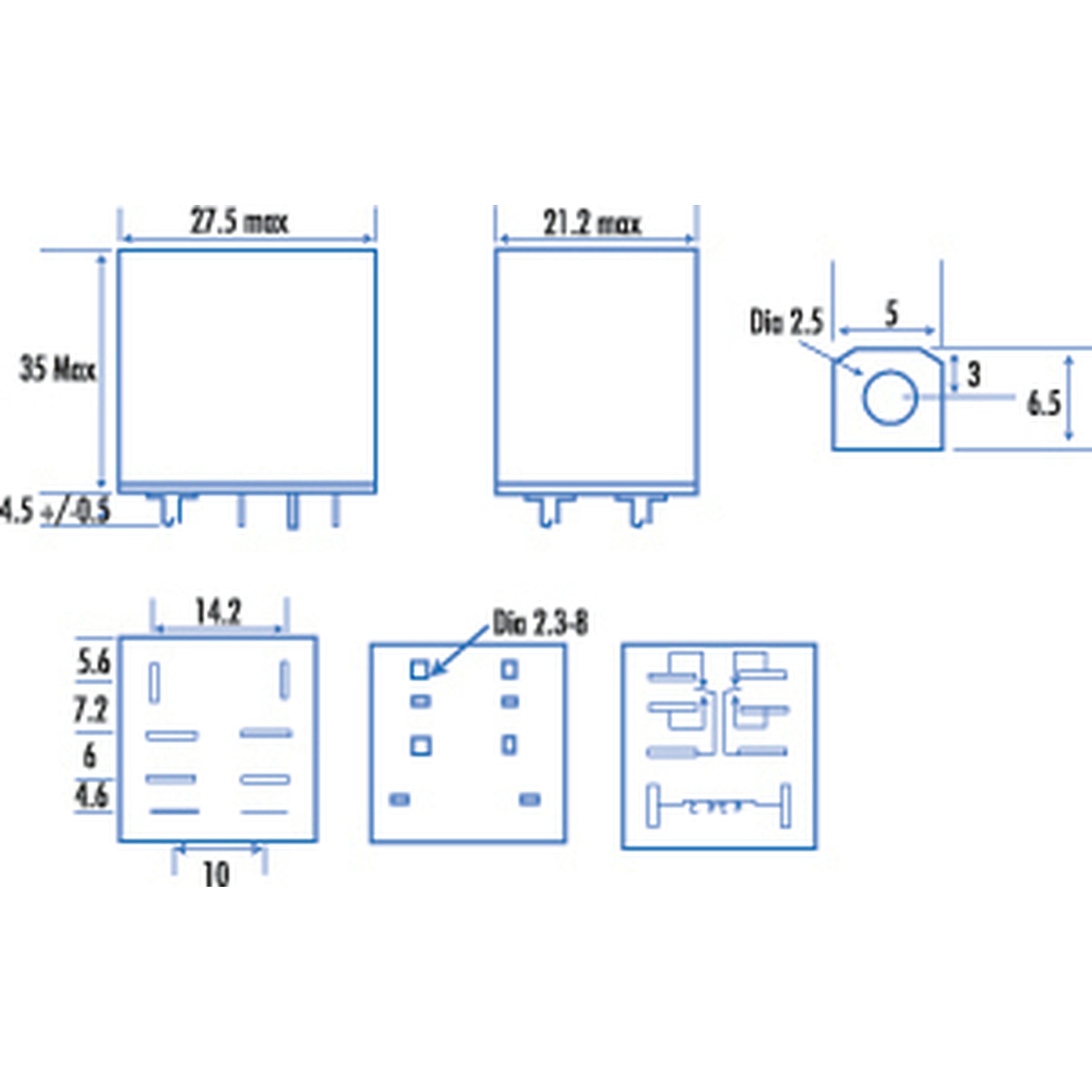

Length
20mm
Width
27mm
Height
35mm
Packaged Dimensions
2.5 x 2 x 4.5 cm
