Digitech

1500VA/900W 230VAC LCD Line Interactive UPS with USB

Cat No:
MP5207
Sold as:1 Each
In Stock

$419.00

Description

Critical systems should ideally be connected to some form of backup power in the event of a blackout, power surge or brownout. A fault at the grid may drop the voltage at the mains, which could cause some systems to shutdown, reset, lose data or worse, resulting in thousands of dollars of damage (both material and immaterial).


These line interactive units give you a good balance between real time system protection and power redundancy when mains electricity is down or experiencing reliability issues. During mains voltage sags both units will deliver a steady voltage, keeping critical systems running properly. For a total power blackout the units can keep your systems running long enough to save important data or cleanly shutdown connected devices. Other important features include an auto shutdown when no load is detected, audible alarms for low battery, self diagnosis on boot, and intelligent battery management.

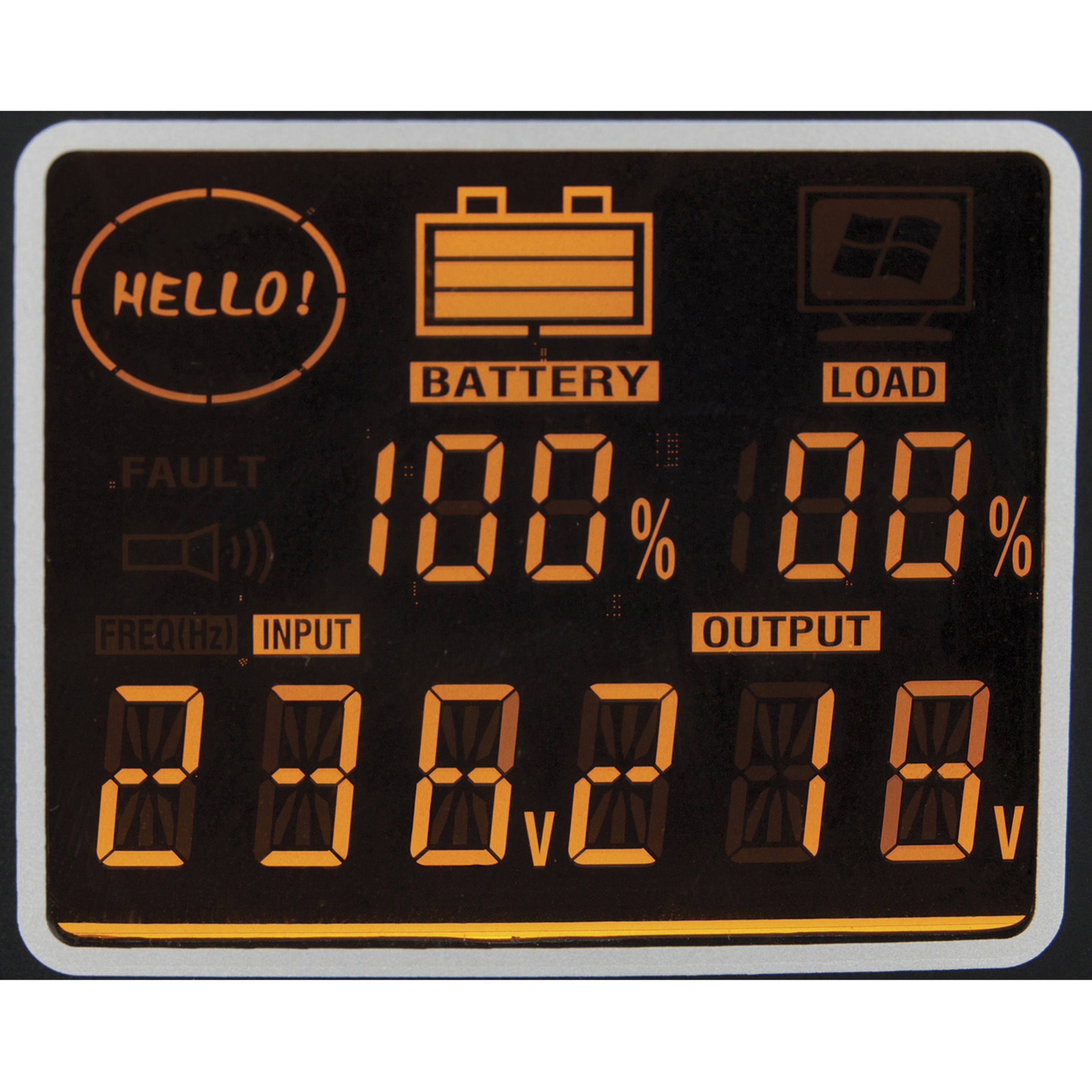

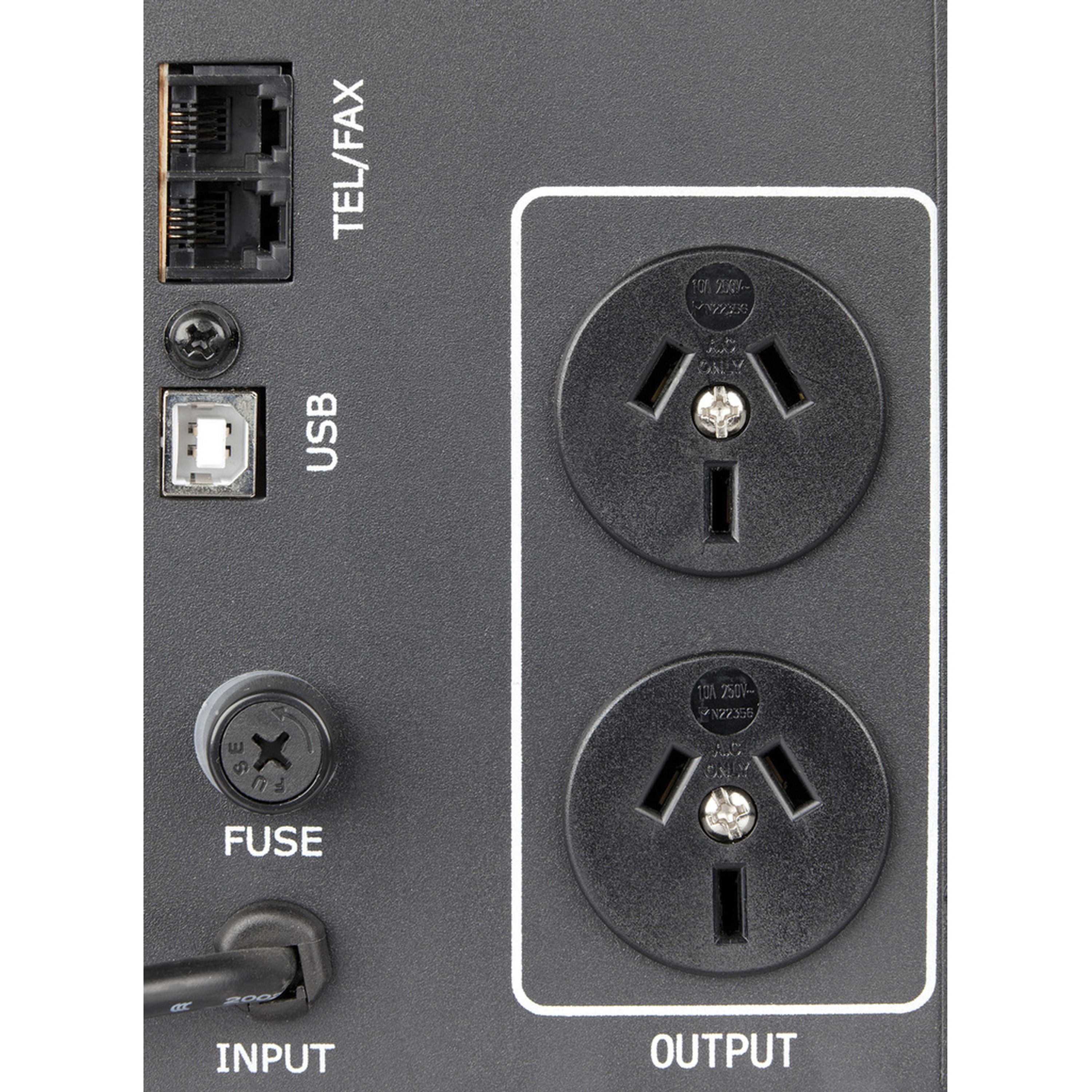

Both models feature an easy to read LCD which displays battery and load values as a percentage and input/output voltages. At the rear of the unit are 2 x RJ11 sockets for Telephone/Fax protection and a USB socket for connection to your PC for use with the power management software.

Features:

• Mains connections: 2 (input and output)


Note: Must be powered from the mains or a pure sinewave source (inverter,etc)

Please note: Software will ask for serial number during installation. The number is printed on the cd sleeve.

For all software compatibility check the installation disk.

Specifications

Length
400.0mm
Width
125.0mm
Height
220.0mm
Weight
11.5kg
Volt Amps
1500VA
Watts
900W
Nominal Backup Time
94 min
Switch Over Time
10ms
Recharge Time
8 hr
Output Waveform
Interactive
Output Frequency
Modified Sine Wave
Display
Basic LCD
Data Connection
RJ11
Number of Batteries
2 x 12V 9Ah SLA
Backup Time - Light Load (70W)
94 Minutes
Backup Time - Moderate Load (140W)
49 Minutes
Backup Time - Standard Load (200W)
31 Minutes
Mains Voltage Range
180.0V,230.0V
Battery Chemical Composition
Sealed Lead Acid (SLA)
Battery usage
Rechargeable
Amp Hour Rating
9.0Ah
Packaged Dimensions
39.3cm(Length) x 18.6cm(Width) x 30.1cm(Height)
