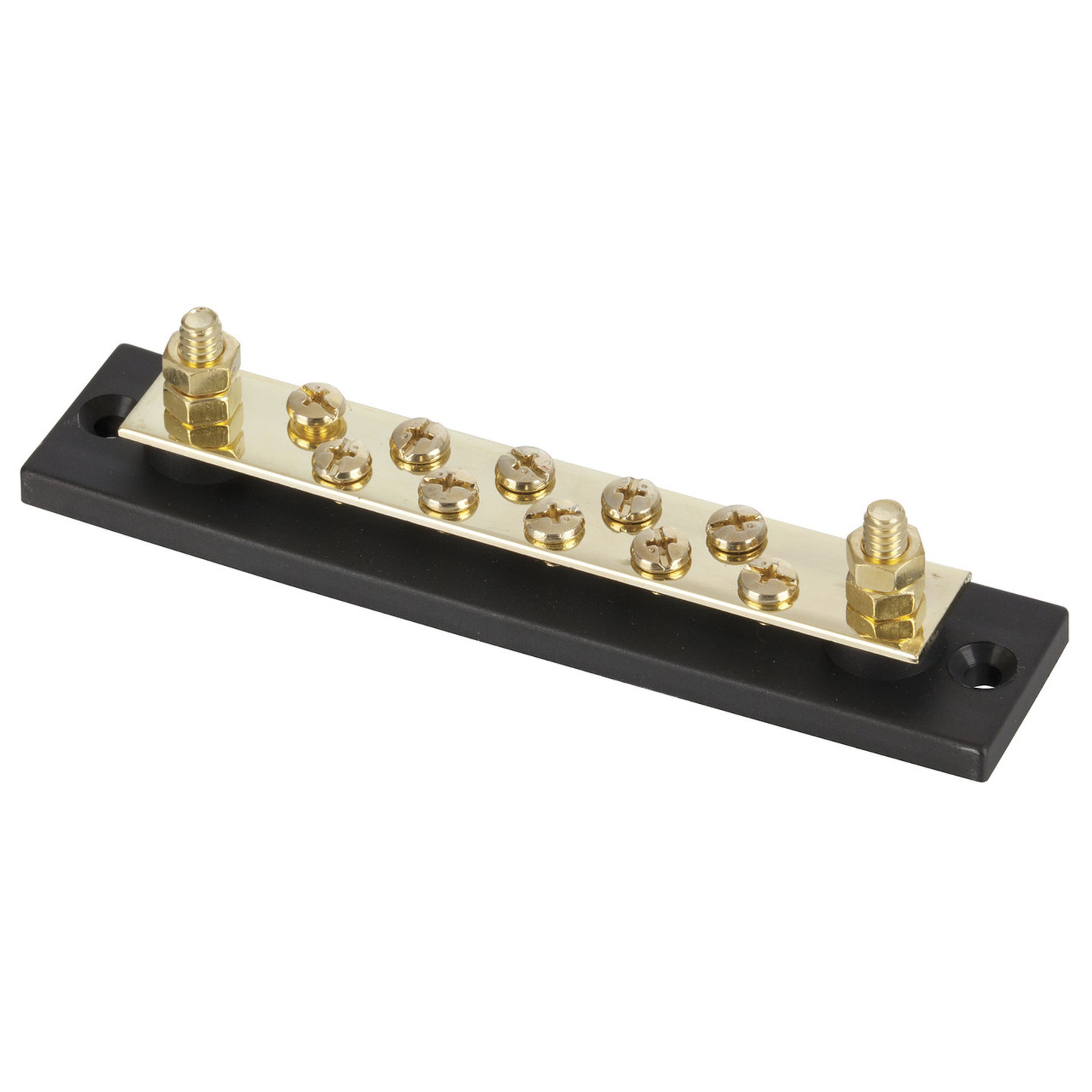

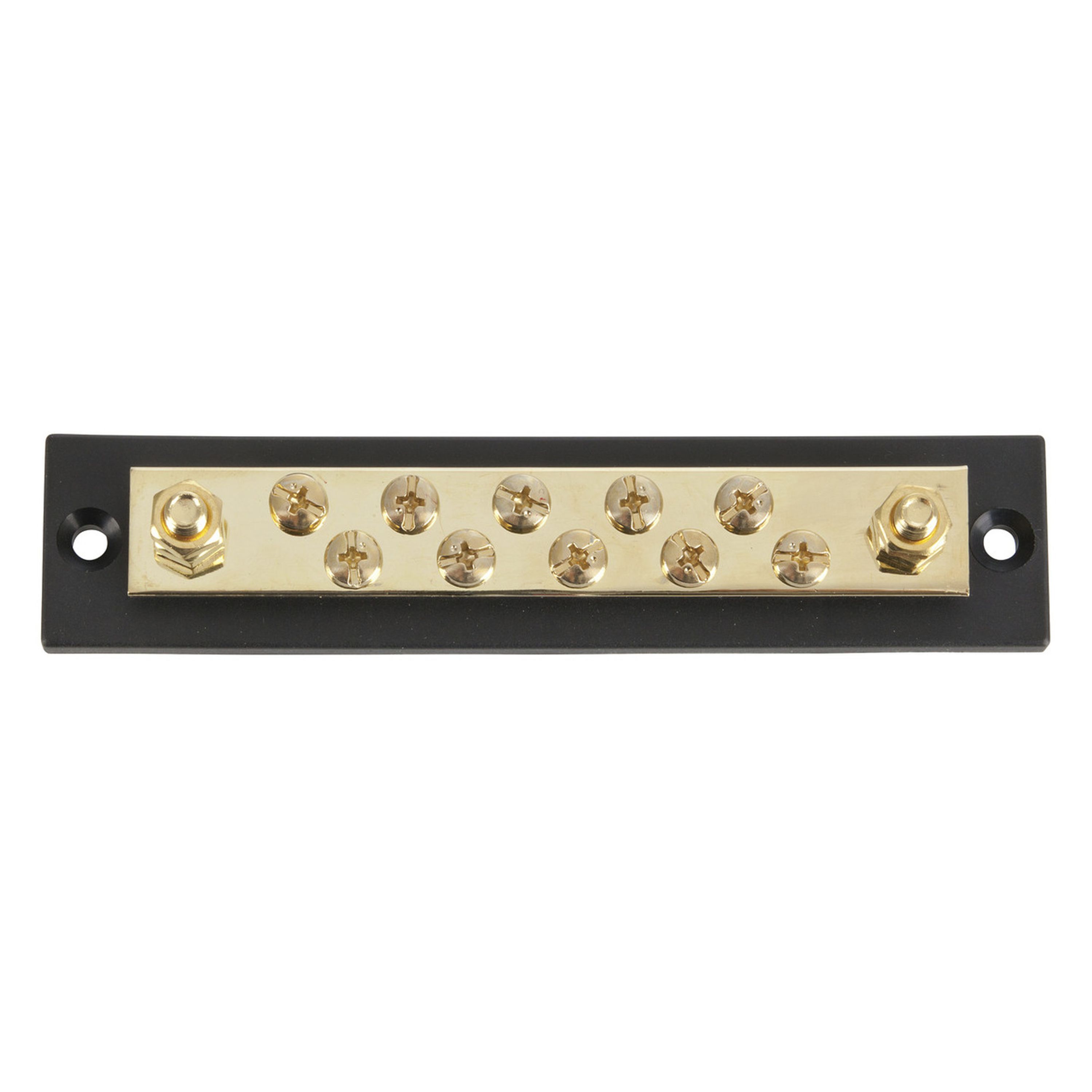

150A Insulated Busbar

Cat No:: SZ2012

In Stock

$23.90

Description

This quality bus bar features a raised insulating base that isolates the bus bar from earthed or other live chassis. It features 2 x 5mm bolted terminals for connecting main power feeds, and 10 screw terminals for connecting lower current feeds of up to 10A each. Total current capacity is 150A, and is suitable for 12-32V wiring. 2 countersunk screw holes for 5mm metric fasteners.

• Dimensions: 145(L) x 30(W) x 40(H)mm

Specifications

Length: 145.0mm
Width: 30.0mm
Height: 40.0mm
Packaged Dimensions: 14.5cm(Length) x 3.2cm(Width) x 3.0cm(Height)
