15A Panel Mount Thermal Circuit Breaker (CBE)
- Cat No:
- SF2315
Sold as:1 Each
In Stock$11.90
Description

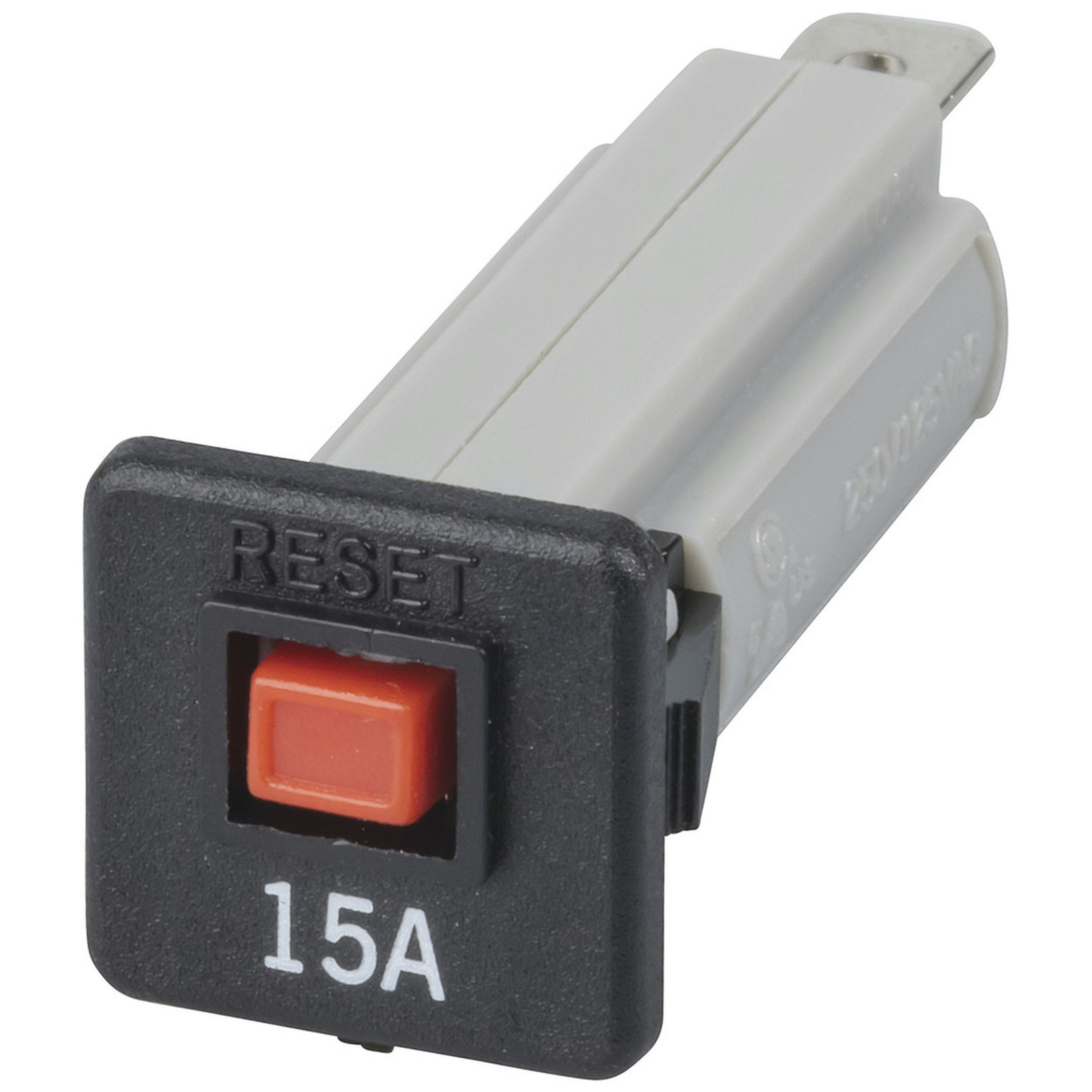

These attractive looking units feature a black 19mm square facade with a centrally mounted bright red `trip' button. When tripped, the red button extends and to reset simply push button back in (once fault has been cleared). It's slow response time ideal for inductive/reactive loads. IEC 934 TYPE R/TO.
Features:
- Hold Current: 100% load indefinitely
- Trip current:
Within 1 hour at 135% load
Within 1 min at 200% load - Contact Resistance: 0.16 ohms
Specifications
- Circuit Breaker Type
- PCB Mount
- Circuit Breaker Current
- 15.0A
- Circuit Breaker AC Voltage
- 125.0V,250.0V
- Circuit Breaker DC Voltage
- 32.0V
- Circuit Breaker Resistance
- 0.008Ω
- Circuit Breaker Di-electric Strength
- 1500VAC 1 Minute
- Circuit Breaker Contact Endurance
- >500 cycles @ 150% of contact rating
- Circuit Breaker Pole Count
- 1.0 pole
- Packaged Dimensions
- 5.2cm(Length) x 2.0cm(Width) x 2.0cm(Height)
