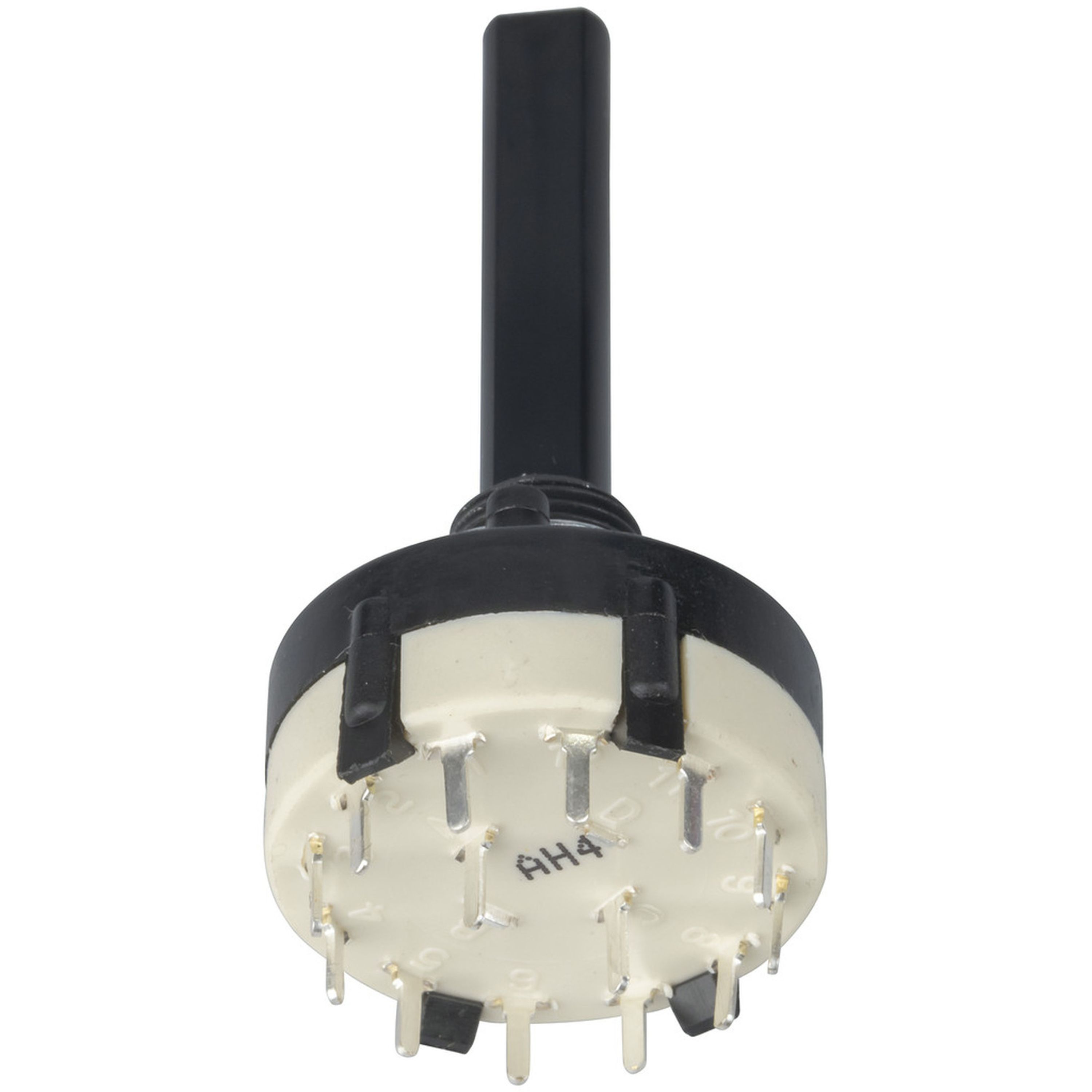

2 Pole Sealed PCB Rotary
- Cat No:
- SR1212
In Stock
$5.90
Description
These switches have a removable ring with tab which can be inserted into the switch several ways to your particular requirements. For example, if you purchased a 1 pole x 12 way (max) switch you could convert it to, say, 1 pole 7 way between stops. They have a standard 1/4 shaft.
From 2 pole 2 position to 2 pole 6 position
From 2 pole 2 position to 2 pole 6 position
Specifications
- Poles / Contacts
- 2.0 pole
- Switch Type
- Rotary
- AC Current Rating
- 150.0 mA
- Throws / Positions
- 6.0 pos
- Break / Make Function
- Break Before Make (BBM)
- Switch Connection
- Spade Terminals
- AC Voltage Rating
- 240.0 V
- Switch Type
- Rotary
- Poles / Contacts
- 2.0 pole
- Throws / Positions
- 6.0pos
- Switch Connection
- Spade Terminals
- Break/Make Function
- Break Before Make (BBM)
- AC Voltage rating
- 240.0V
- AC current rating
- 150.0mA
- Packaged Dimensions
- 2.5cm(Length) x 2.5cm(Width) x 5.5cm(Height)
