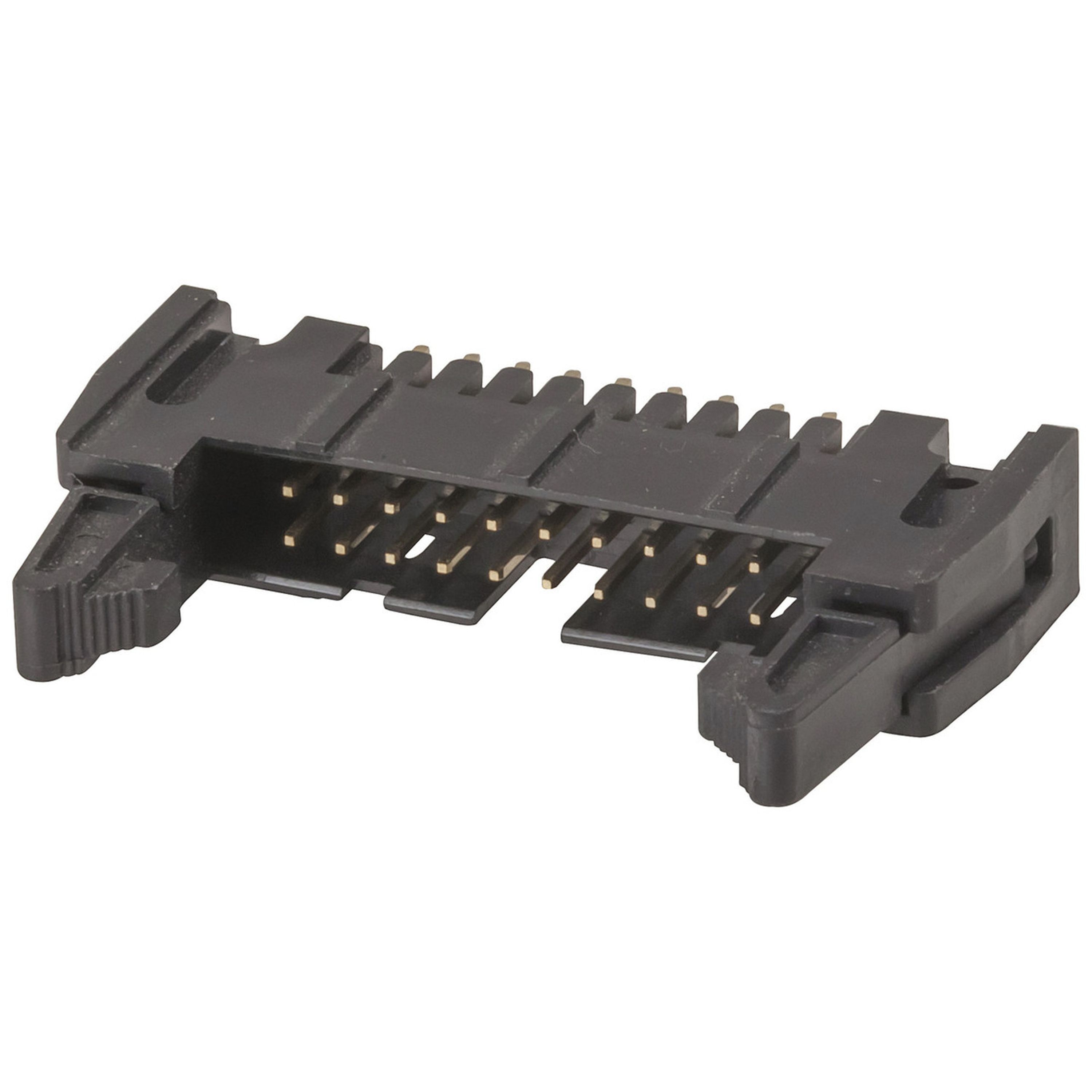

20 Pin IDC Locking Vertical Header
- Cat No:
- PP1140
In Stock
$2.00
Description
Vertical facing 20 pin IDC plug, suitable for PCB mounting. Includes locking mechanism.
Specifications
- Type
- Double Row Header
- Device
- Plug
- Attachment Method
- IDC
- Number of Pins
- 20.0pc
- Pin Spacing
- 2.54mm (0.1")
- Pin Material
- Gold Plated
- header locking
- true
- Type
- Double Row Header
- Pack Quantity
- 1 pc
- Number of Pins
- 20.0
- Pin Spacing
- 2.54mm
- Pin Size
- 0.64mm*
- Insulation Dielectic Voltage Rating
- 500V*
- Insulation Resistance
- 1000MΩ*
- Operating Temperature
- 105°C*
- Device
- Plug
- Attachment Method
- IDC
- Header Locking
- Yes
- Header Polarised
- Yes
- Mating Force
- 200g*
- Packaged Dimensions
- 4.5cm(Length) x 3.0cm(Width) x 0.09cm(Height)
