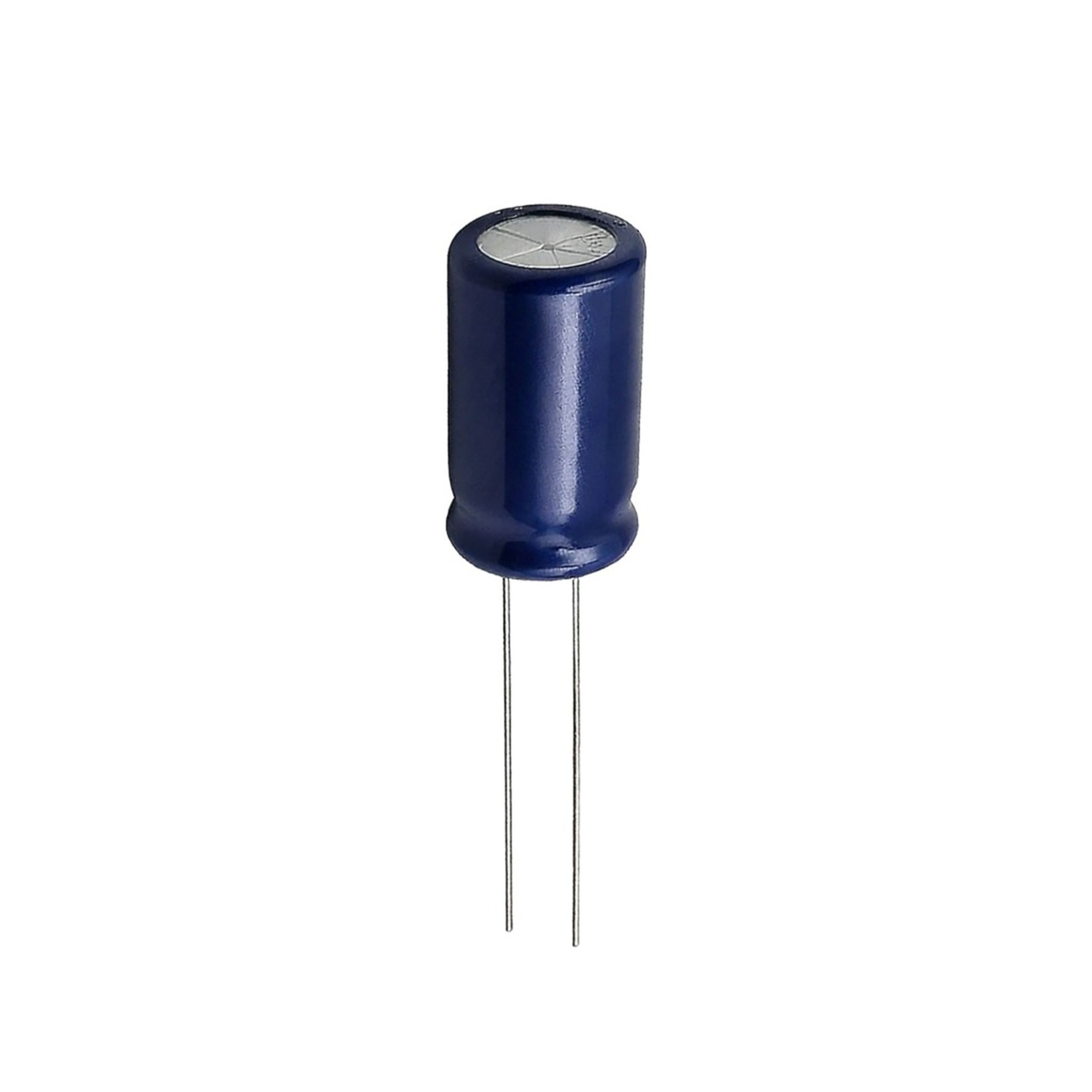

2200uF 50VDC Electrolytic RB Capacitor
- Cat No:
- RE6241
Sold as:1 Each
In Stock$3.80
Description
An electrolytic capacitor uses an electrolyte (a liquid or gel containing a high concentration of ions) to achieve a large capacitance than the other capacitor types. These electrolytic capacitors are polarized, meaning that the voltage on the positive terminal must always be greater than the voltage on the negative terminal. They are commonly used as filters in devices in various power supplies to reduce the voltage ripple as well as input and output smoothing as an LPF.
Features:
Ripple Current mA: 1230
Mounting: RB - PC Mount
Specifications
- Capacitor type
- Electrolytic
- Component Type
- Electrolytic Capacitor
- Pack Quantity
- 1.0pc
- Pitch
- 7.5mm
- Passive mount type
- Through Hole
- Passive connector type
- Solder Legs
- Component package
- Radial
- Passive number of legs
- 2.0 count
- Passive marking code
- Printed
- Operating Temperature
- 105.0°C-105.0°C-105.0°C
- DC Voltage
- 50.0V
- Item capacitance
- 2200.0µF
- Height
- 35.0mm
- Diameter
- 16.0mm
- Packaged Dimensions
- 5.5cm(Length) x 1.6cm(Width) x 1.6cm(Height)
