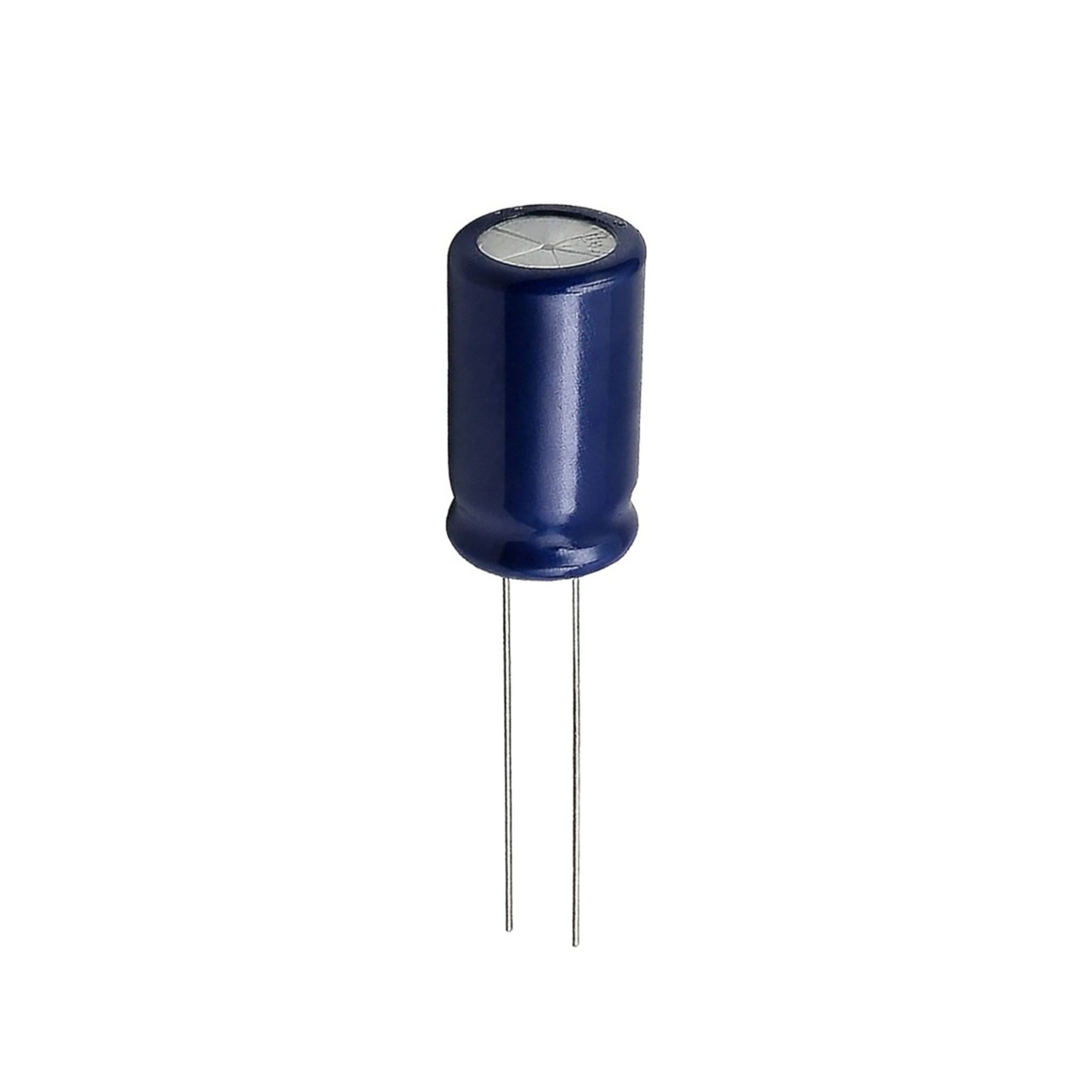

22uF 35VDC Electrolytic RB Capacitor
- Cat No:
- RE6092
In Stock
$0.40
Description
An electrolytic capacitor uses an electrolyte (a liquid or gel containing a high concentration of ions) to achieve a large capacitance than the other capacitor types. These electrolytic capacitors are polarized, meaning that the voltage on the positive terminal must always be greater than the voltage on the negative terminal. They are commonly used as filters in devices in various power supplies to reduce the voltage ripple as well as input and output smoothing as an LPF.
Features:
Ripple Current mA: 80
Mounting: RB - PC Mount
Specifications
- Capacitor type
- Electrolytic
- Polarised Capacitor
- true
- Pitch
- 5.0mm
- Component Type
- Electrolytic Capacitor
- Passive mount type
- Through Hole
- Pack Quantity
- 1.0pc
- Passive connector type
- Solder Legs
- Component package
- Radial
- Passive number of legs
- 2.0 count
- Passive marking code
- Printed
- Operating Temperature
- 105.0°C
- DC Voltage
- 35.0V
- Item capacitance
- 22.0µF
- Component Package
- Solder Legs
- Capacitor Type
- Electrolytic
- Polarised Capacitor
- TRUE
- Passive Mount Type
- Through Hole
- Passive Connector Type
- Radial
- Passive Number of Legs
- 2.0
- Passive Marking Code
- Printed
- Pitch
- 2.5mm
- Component Type
- Capacitor
- Pack Quantity
- 1.0
- DC Voltage
- 25V
- Item Capacitance
- 47µF
- Height
- 11.0mm
- Diameter
- 5.0mm
- Packaged Dimensions
- 3.1cm(Length) x 0.5cm(Width) x 0.5cm(Height)
