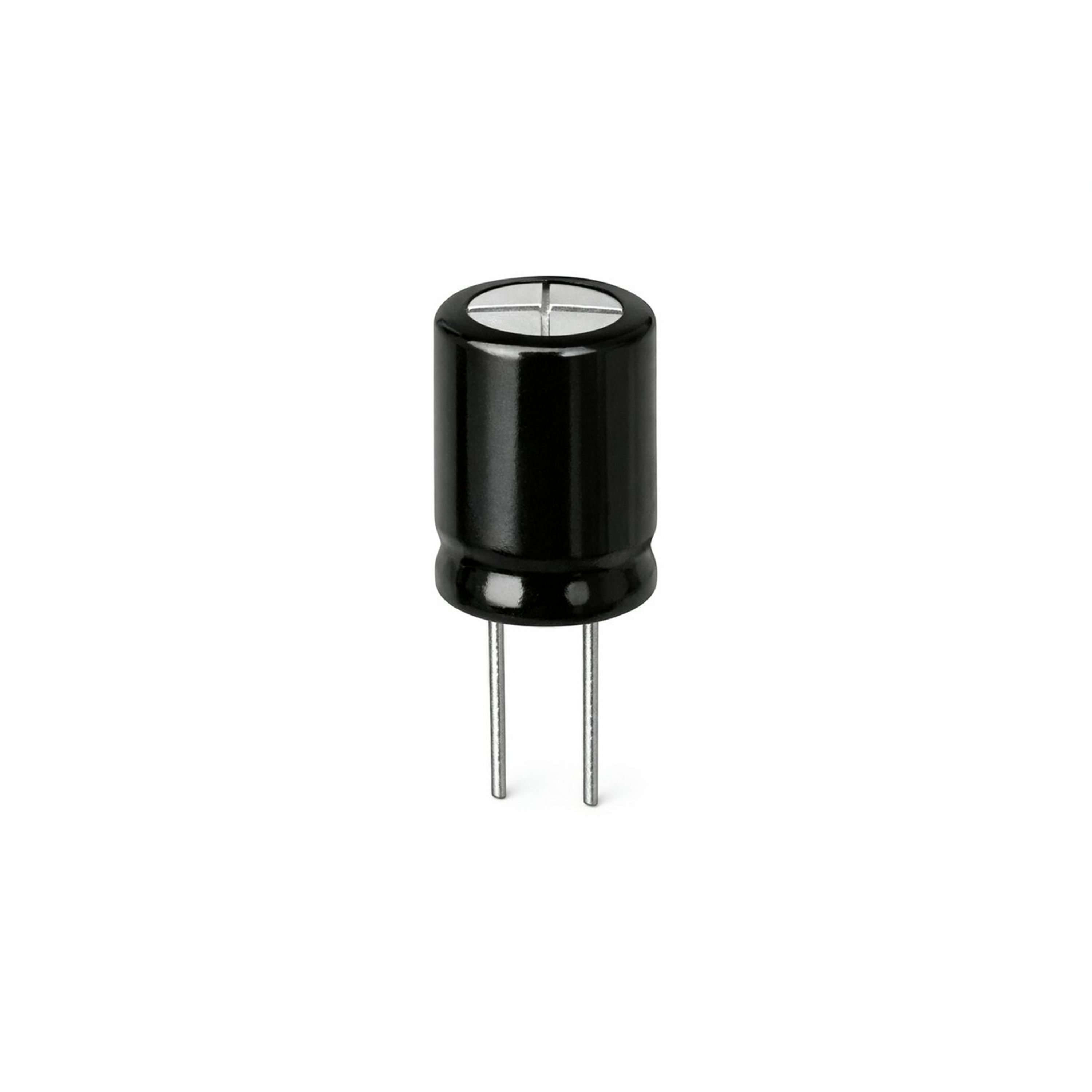

22uF 50V Bipolar Electrolytic Capacitor
- Cat No:
- RY6816
Sold as:1 Each
In Stock$1.20
Description
Bipolar RB Electrolytic capacitors (non-polarised capactiors) which may be operated with either polarity are special constructions with two anodes connected in series. Ripple: 82mA
Specifications
- Capacitor type
- Electrolytic
- Polarised Capacitor
- false
- Component Type
- Electrolytic Capacitor
- Pack Quantity
- 1.0pc
- Pitch
- 3.5mm
- Passive mount type
- Through Hole
- Passive connector type
- Solder Legs
- Component package
- Radial
- Passive number of legs
- 2.0 count
- Passive marking code
- Printed
- Operating Temperature
- 85.0°C
- DC Voltage
- 50.0V
- Item capacitance
- 22.0µF
- Height
- 11.0mm
- Diameter
- 8.0mm
- Packaged Dimensions
- 0.6cm(Length) x 0.6cm(Width) x 3.6cm(Height)
