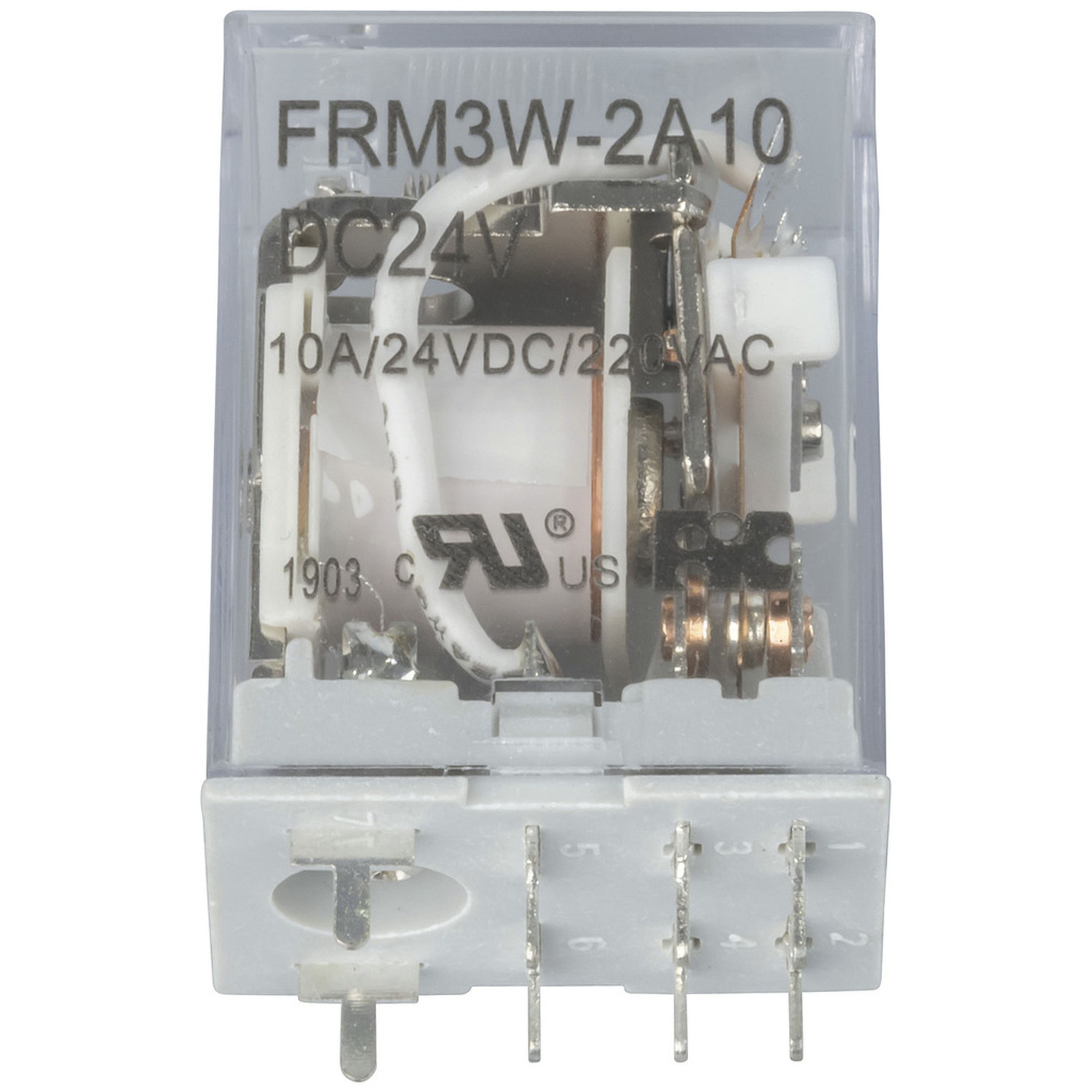

24VDC DPDT Relay - 10A 240VAC/24VDC Contacts
- Cat No:
- SY4007
Sold as:1 Each
Carton size:500
In Stock$12.90
Description
High power DPDT relay suitable for switching loads up to 10A. Designed to suit the SY-4064 DIN rail mounting cradle it can also be mounted directly into a PCB. Operational life: 20 million cycles
Specifications
- Device Type
- Cradle Mounting Relay
- Input
- DC
- Contact format
- DPDT
- Nominal Voltage
- 24V
- Coil Resistance
- 650Ω
- Coil Current
- 37mA
- AC Contact Voltage
- 240V, 240V
- AC Switching Current (Opening)
- 10A
- DC Contact Voltage
- 24V, 24V
- DC Switching Current (Opening)
- 10A
- Operation Time
- 25ms
- DC Voltage
- 24V
- DC Current Draw
- 37mA
- Length
- 35mm
- Width
- 21.2mm
- Height
- 27.5mm
- Packaged Dimensions
- 2.6 x 2 x 4 cm
