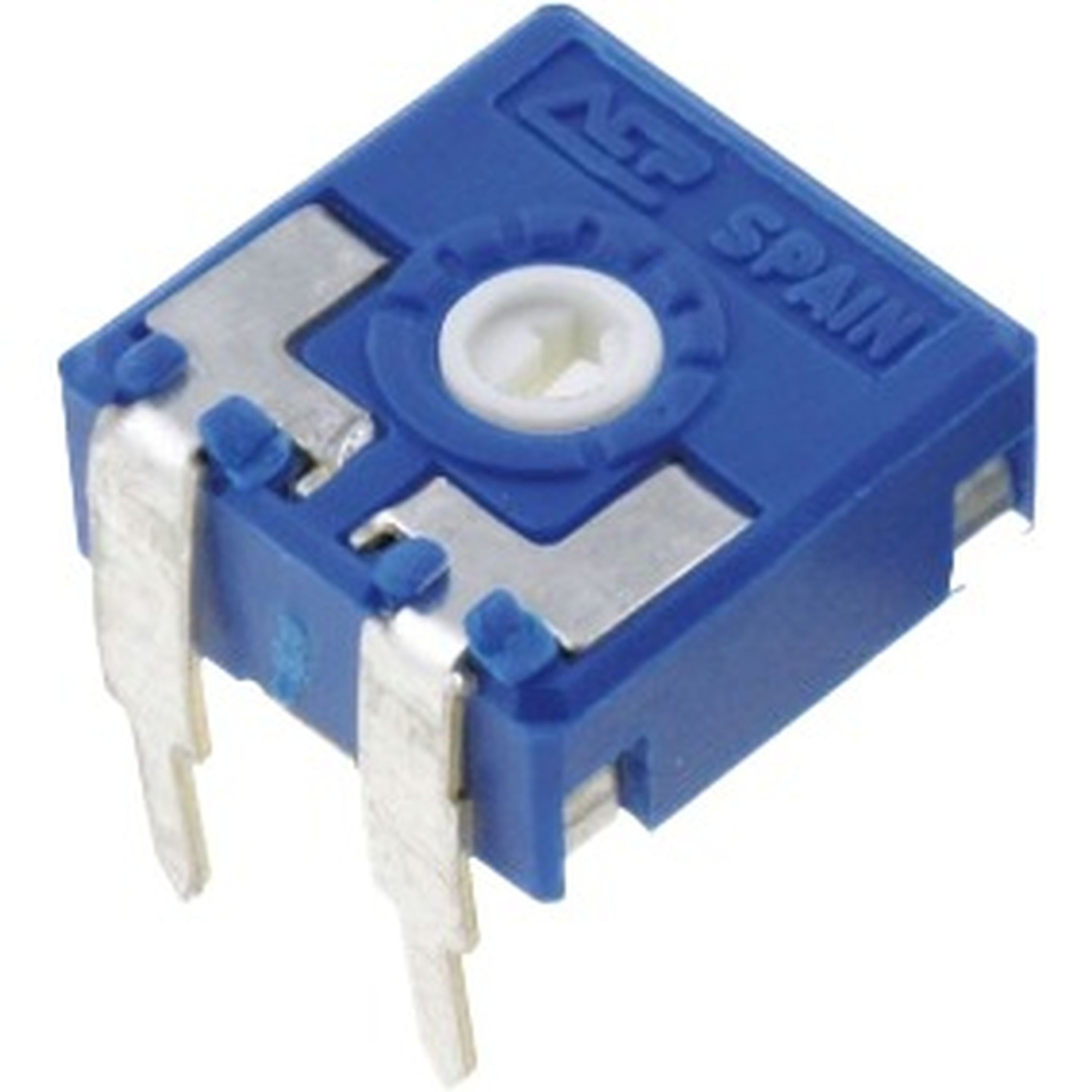

250K ohm Piher Horizontal Trimpot
- Cat No:
- RT4368
Sold as:1 Each
In Stock$1.60
Description
At last, a range of top quality sealed mini, standard sized trimpots.- Dust proof enclosure - Polyester substrate - Wiper positioned at 50% - Accidental rotor movement protected.Specifications: - Max voltage 100V - Nom power 0.1W - Linear curve - Tolerance +/- 30% - End resistance 10.Value250K ohm
Specifications
- Trim Pot Type
- Horizontal
- Trimpot Scredriver Slot
- Philips
- Trimpot Turns
- 1.0 units
- AC Voltage rating
- 100.0V
- Pack Quantity
- 1.0pc
- Passive mount type
- Through Hole
- Passive connector type
- Solder Legs
- Component package
- Square pack
- Passive number of legs
- 3.0 count
- Passive marking code
- Number code
- Resistance level
- 250.0kΩ
- Continuous Power
- 0.1W
- Packaged Dimensions
- 1.2cm(Length) x 0.7cm(Width) x 0.8cm(Height)
