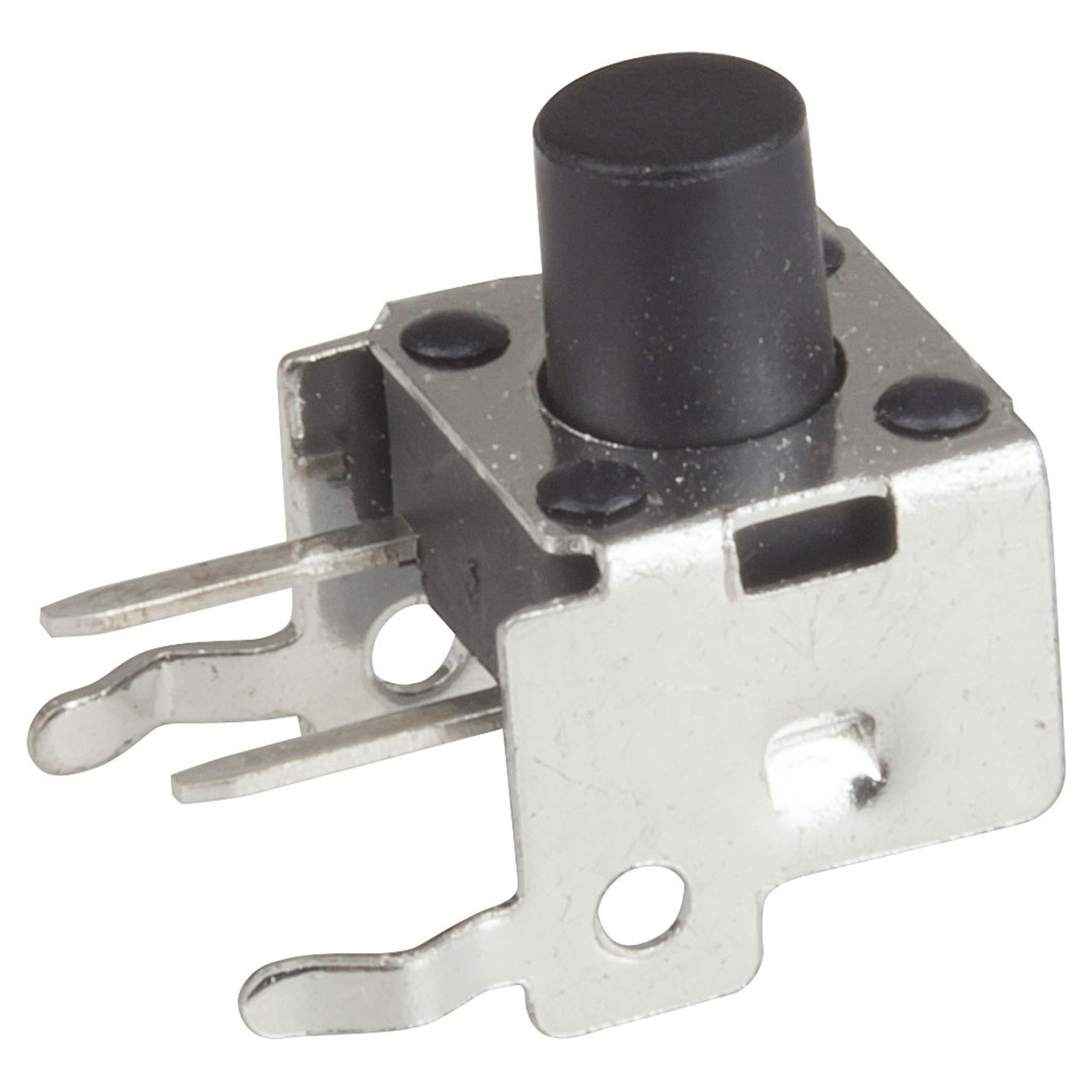

3.5mm SPST Right-Angle Micro Tactile Switch
- Cat No:
- SP0606
In Stock
$1.20
Description
Normally open SPST right-angled micro tactile switch.
Specifications
- Width
- 7.4mm
- Height
- 7.2mm
- Depth
- 6.2mm
- Switch Type
- Tactile Pushbutton
- Pole Throw Type
- SPST
- Poles / Contacts
- 1.0 pole
- Throws / Positions
- 1.0pos
- Switch Function
- Single Action Momentary
- Switch Connection
- PCB Pins
- Switch Colour Coded
- Black
- Switch at Right Angles to Mount
- true
- Contact Resistance
- 100.0mΩ
- Insulation Resistance
- 100.0mΩ
- Dielectric Strength
- 100.0V
- Mechanism Material
- Plastic
- Actuator Height
- 3.5mm
- Actuator Diameter
- 3.4mm
- DC Voltage
- 12.0V
- DC current rating
- 50.0mA
- Packaged Dimensions
- 1.0cm(Length) x 1.0cm(Width) x 1.2cm(Height)
