HIRSCHMANN

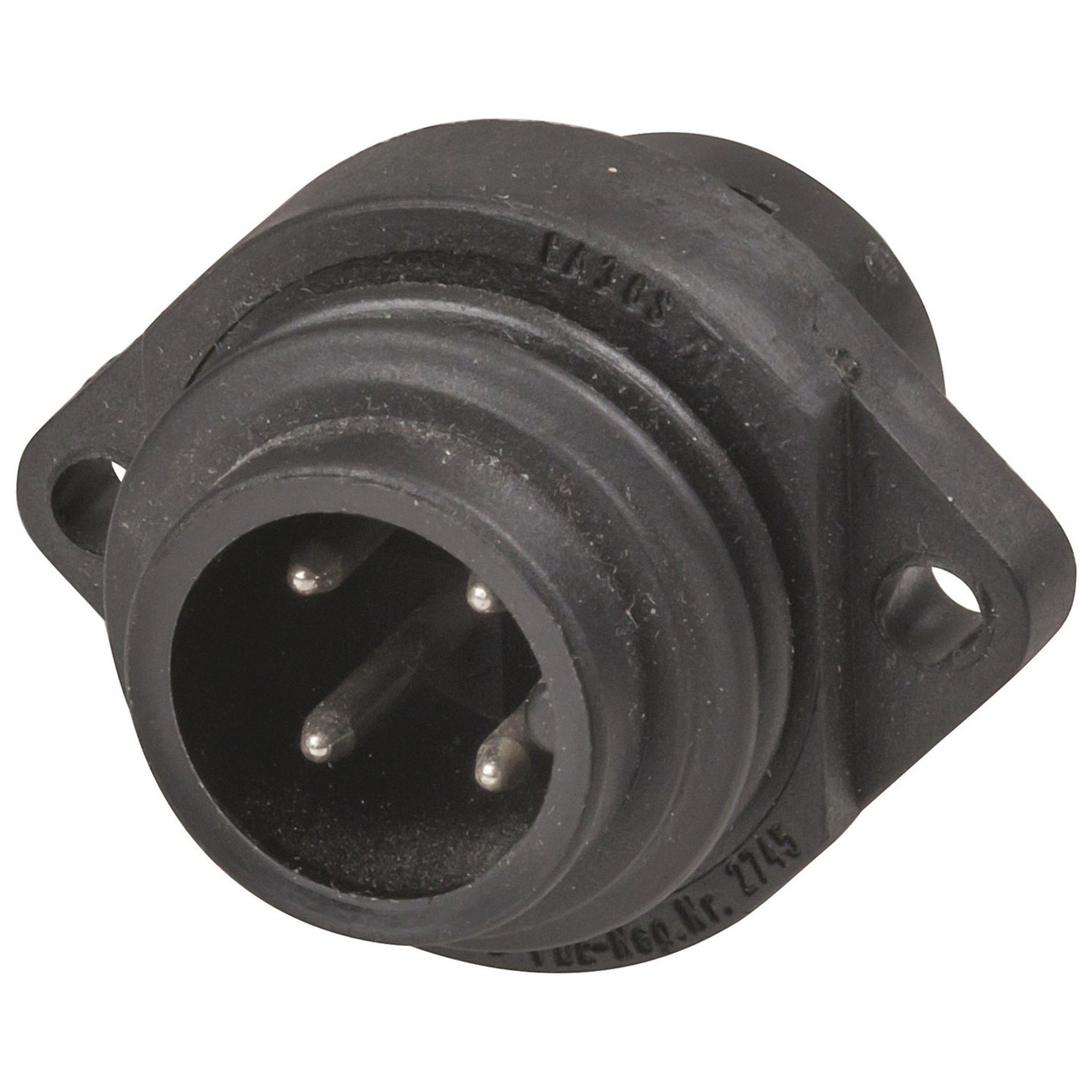

3 Pole and Pre-earth CA Series Panel Plug
- Cat No:
- PP1008
- MPN:
- 932-322-100
Sold as:1 Each
In Stock$17.90
Description
Hirschmann C16-1 Series or similar connectors offer 4 or 7 way (3 and 6 with plus a P.E. - or pre-engaging - earth contact). The mating parts securely screw together to form environmental protection to IP-67. For further technical information see specifications. A quality industry-standard connector.
Features
- Electrical: 3 Pole + PE
- Contact Resistance: ≤5mohm
- Suitable for panel mount.
Environmental:
- Temperature range: -40°C to + 100°C
- Housing: Polyamide 6.6
- Strain Relief: Screw clamp/Ring & Gland Nut (9mm)
Specifications
- Plug or Socket Type
- C16-1 Series
- Device
- Plug
- Attachment Method
- Solder Tag
- Pack Quantity
- 1.0pc
- Contacts / Pins
- 3.0pc
- Case Material
- Plastic
- Contact Material
- Plated Metal
- Insulation resistance
- 10.0GΩ
- Cable Entry Diameter
- 0.9mm,0.9mm
- AC Voltage rating
- 380.0V
- DC Voltage
- 450.0V
- DC current rating
- 16.0A
- IP Rating
- IP67
- IP Rating certificate
- true
- Packaged Dimensions
- 4.0cm(Length) x 3.0cm(Width) x 3.0cm(Height)
