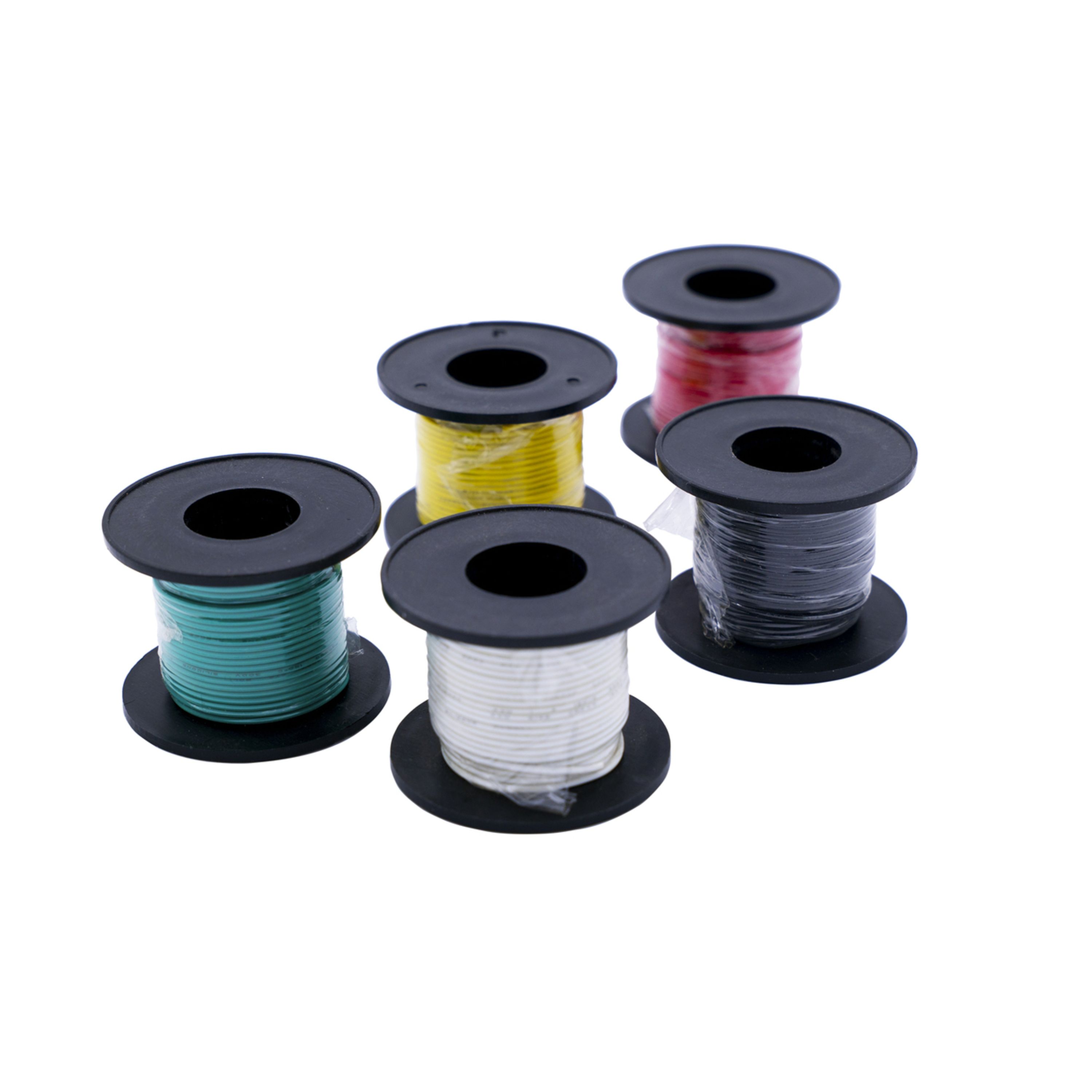

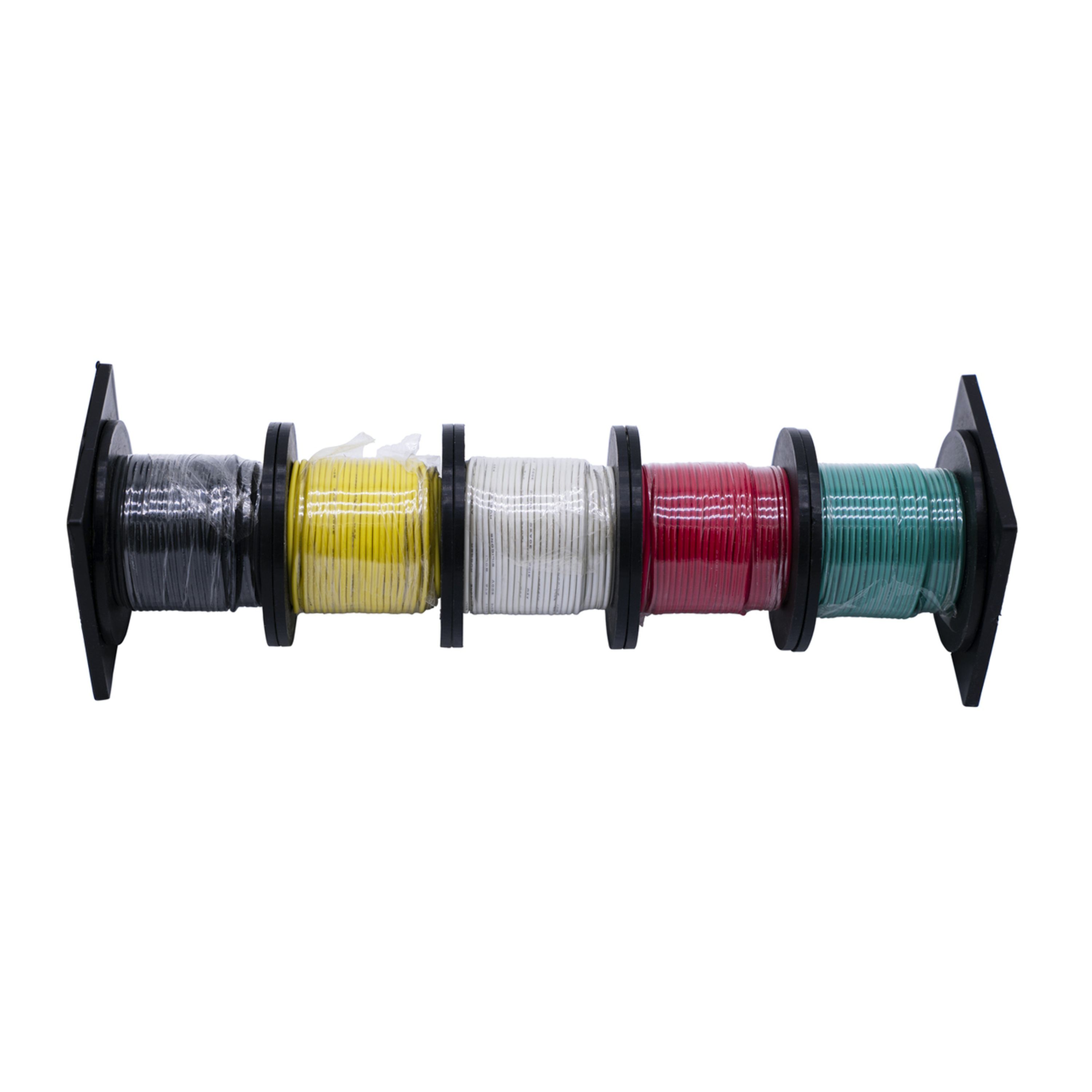

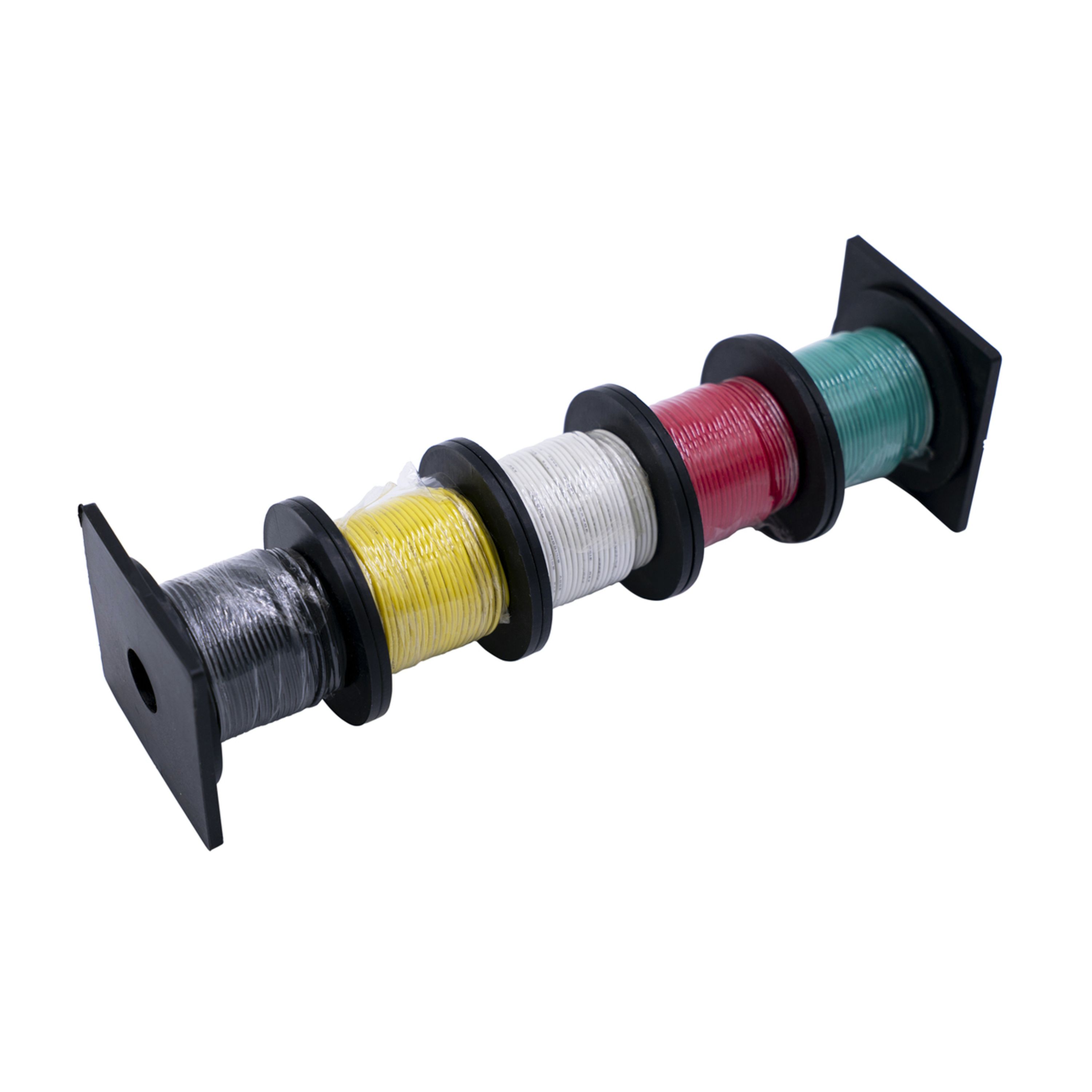

30 Gauge Silcon Hookup Wire - 5 colours - 10m Roll
- Cat No:
- WH3026
Sold as:1 Each
In Stock$18.90
Description
Five 10m rolls of ultra-flexible 30AWG wire in black, red, green, yellow, and white, perfect for clean, organised signal wiring and electronics projects.
Specifications:
- Conductor: Stranded tinned copper
- Gauge: 30AWG (0.05mm²)
- Length per roll: 10 metres
- Insulation: Silicone rubber
- Temperature rating: -60°C to +200°C
- Voltage rating: 300V max
- DC Current rating: 0.75A
- DC Peak Current rating: 1A under 300 mins.
- Resistance: 35.42 Ω/100M
- Stranding: Flexible Silicon rubber + 7x0.1mm TC
- Material: Tinned Copper
- Outer Diameter: 1.2mm
- Colour set: Black, Red, Green, Yellow, White
Features:
Includes five 10m rolls in black, red, green, yellow and white
Flexible 30AWG stranded tinned copper for easy routing
Silicone insulation rated for high temperatures and harsh environments
Ideal for signal-level wiring and internal electronic connections
Supplied in a compact carton with feed-through opening for organised storage
Carton has colour-coded feed holes and a ruler
Specifications
- Length
- 220.0mm
- Width
- 6.0mm
- Height
- 6.0mm
- Diameter
- 6.0mm
- Weight
- 0.5kg
- Packaged Dimensions
- 22.1cm(Length) x 6.0cm(Width) x 6.3cm(Height)
