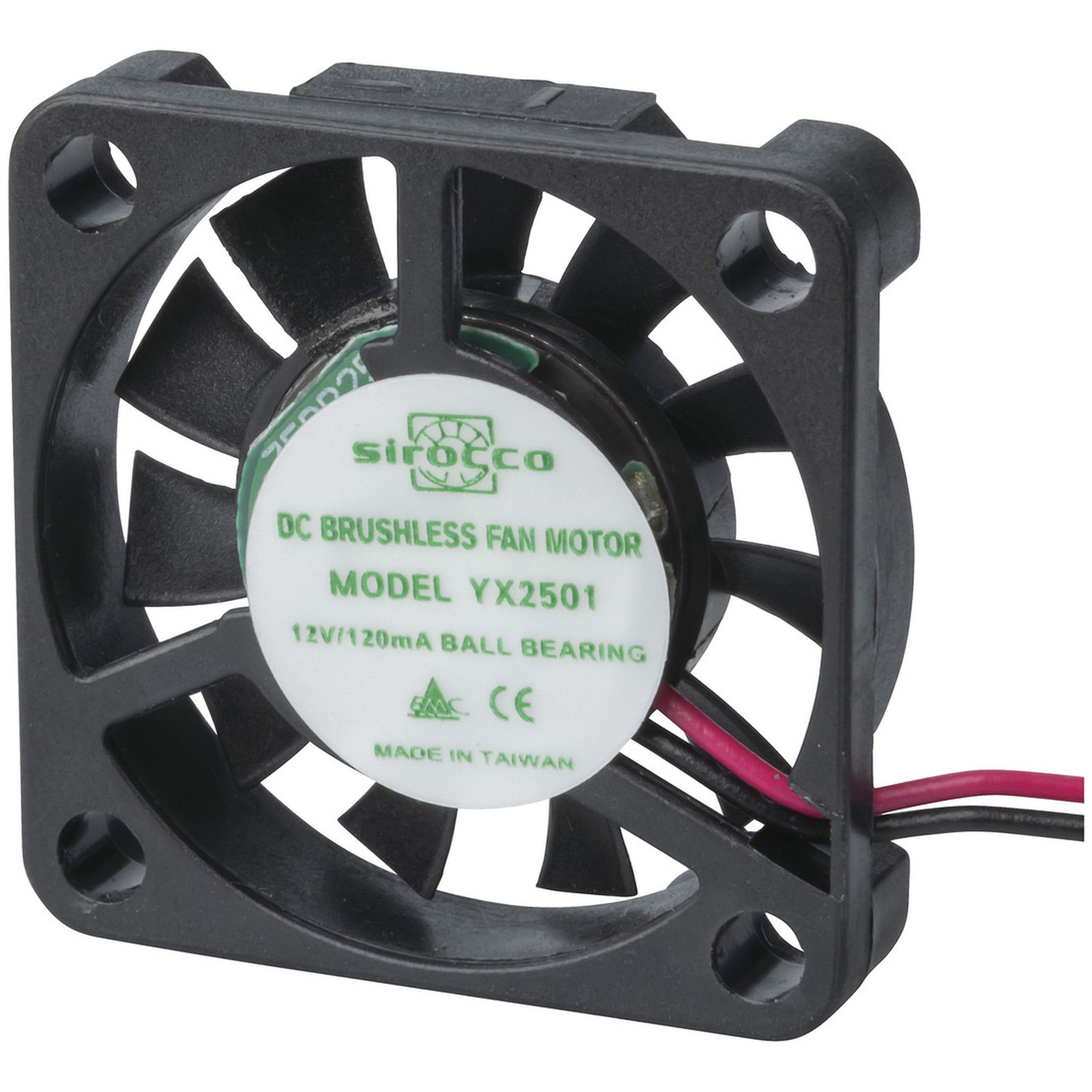

30mm Thin 12VDC 2 Wire Fan
- Cat No:
- YX2501
In Stock
$28.90
Description
Suitable for computers, office machinery, appliances, copying machines, power units, amplifiers, automatic vending machines, air conditioning, medical machines etc.
- Long life - 60,000 hours @ 25degC, 30,000 hours @ 40degC
- Ball bearing: 100,000 hours @ 25degC
- Can be mounted on suction or discharge side
- Wiring will not burn out, even if rotating parts are restricted.
Specifications
- type of fan
- Axial
- fan air volume cubic metres
- 0.108m³/min
- fan air volume cubic feet
- 3.09ft³/min
- fan RPM
- 8000.0RPM
- fan noise
- 21.0dB
- fan bearing type
- Ball
- fan housing material
- Plastic
- fan impeller material
- Plastic
- Fan Operational Life at 25°C
- 40000.0hr
- fan number of wires
- 2.0pc
- fan connector type
- Flyleads
- DC Plugpack Voltage
- 12.0V
- DC Current Draw
- 100.0mA
- Item Connection
- Flyleads
- Length
- 30.0mm
- Width
- 6.0mm
- Height
- 30.0mm
- Packaged Dimensions
- 6.5cm(Length) x 6.3cm(Width) x 3.0cm(Height)
