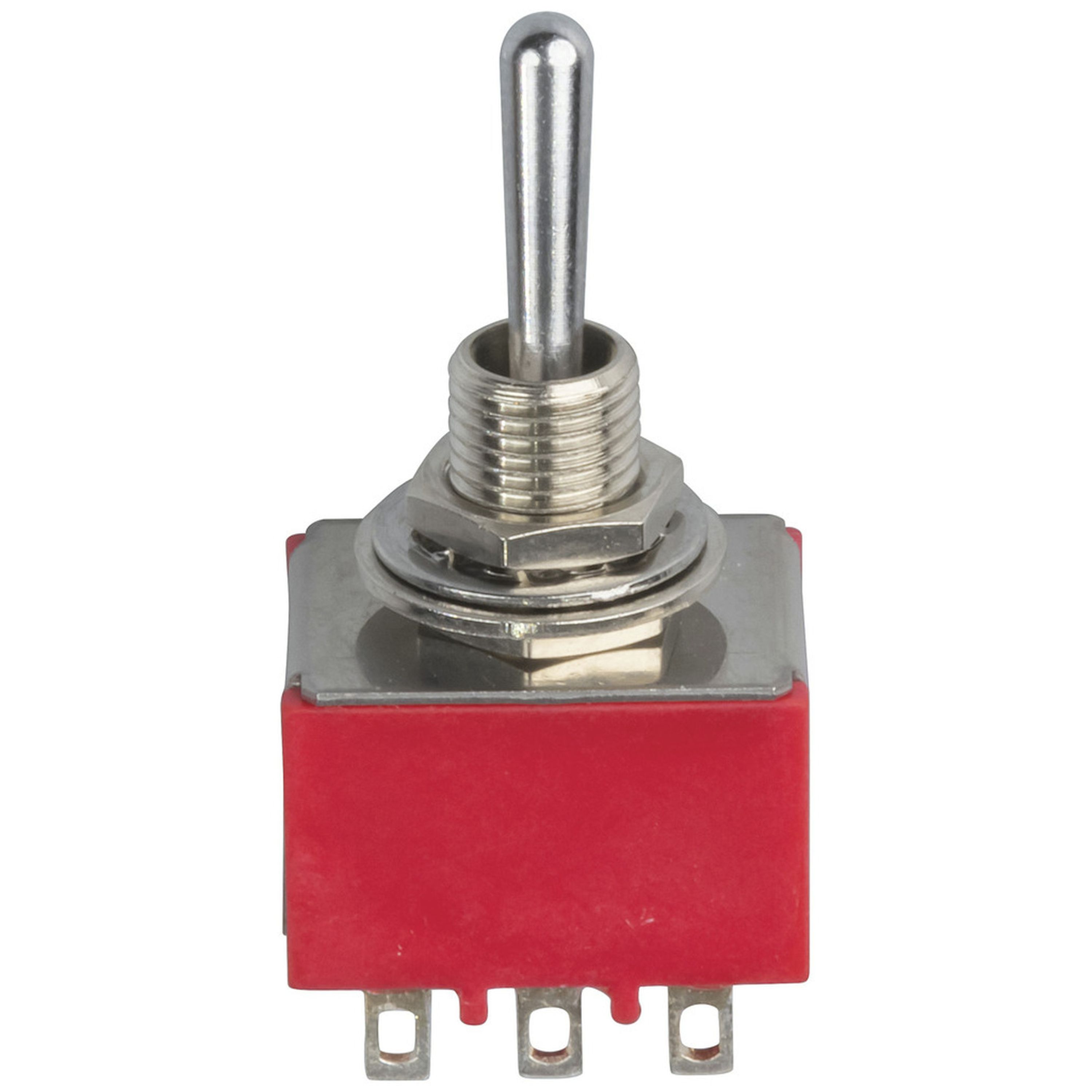

3PDT Mini Toggle Switch
- Cat No:
- ST0505
In Stock
$8.20
Description
3DPT miniature toggle switch
Specifications
- Switch Type
- Toggle
- Poles / Contacts
- 3.0 pole
- Throws / Positions
- 1.0pos
- Cycle Life
- 40000.0 cycles
- Contact Resistance
- 10.0MΩ
- Insulation Resistance
- 1000.0MΩ
- Dielectric Strength
- 1000.0V
- Actuator Length
- 16.51mm
- Actuator Width
- 12.7mm
- AC Voltage rating
- 250.0V
- AC current rating
- 2.0A
- DC Voltage
- 28.0V
- DC current rating
- 5.0A
- Packaged Dimensions
- 1.8cm(Length) x 3.5cm(Width) x 1.2cm(Height)
