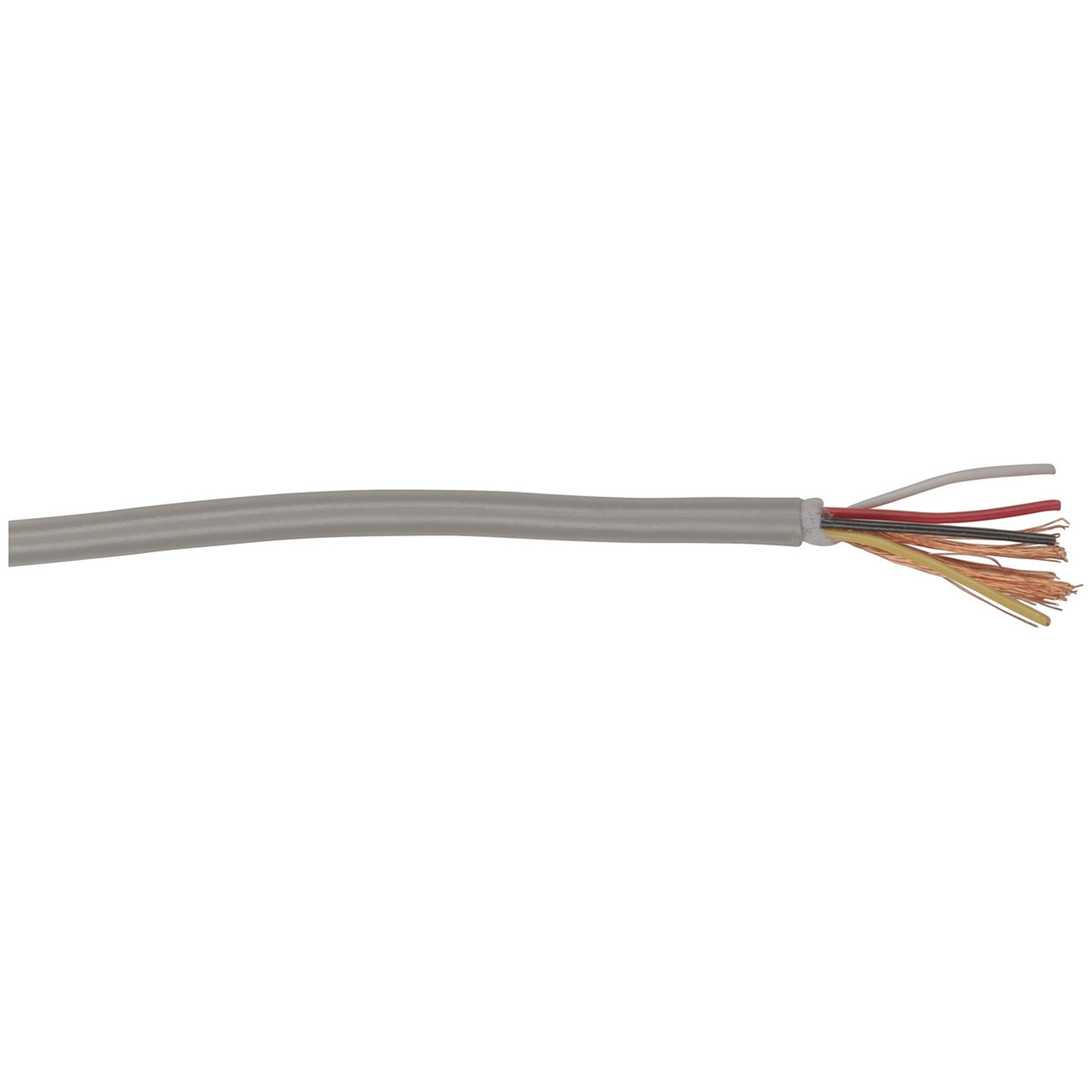

4-core Round Screened Audio Cable

Cat No:
WB1510
Sold as:Roll (100 Metre)
Carton size:400
In Stock

$3.00

Description

Light duty round audio signal cable. Includes four conductors for dual stereo audio signal, two way audio feed, or similar. Single screen for common ground connection with grey PVC insulation.

Specifications

Retail Sales Unit
Metre
Roll Length
100m
Cross Sectional Area
0.08mm²
Individual Conductor Strand Diameter
0.12mm
Number of Conductor Strands
28pc
Resistance per Linear Metre
224.5mΩ
AWG
28.0 x 4 CORES
Colour
Light Grey
Wire Category
Round Screened
Individual Conductor Strand Diameter
0.12mm
Retail Sales Unit
Metre
Roll Length
100m
AWG
28.0 x 4 CORES
Conductor Overall Diameter
1mm OD with PVC x 4 cores
Number of Conductor Strand
7.0 pc x 4 CORES
Resistance Per Linear Metre
224.5 mΩ
Cross Sectional Area
0.08 mm² x 4 CORES
Colour
Light Grey Outer
Cable length
100m
Packaged Dimensions
100 x 0.28 x 0.28 cm
