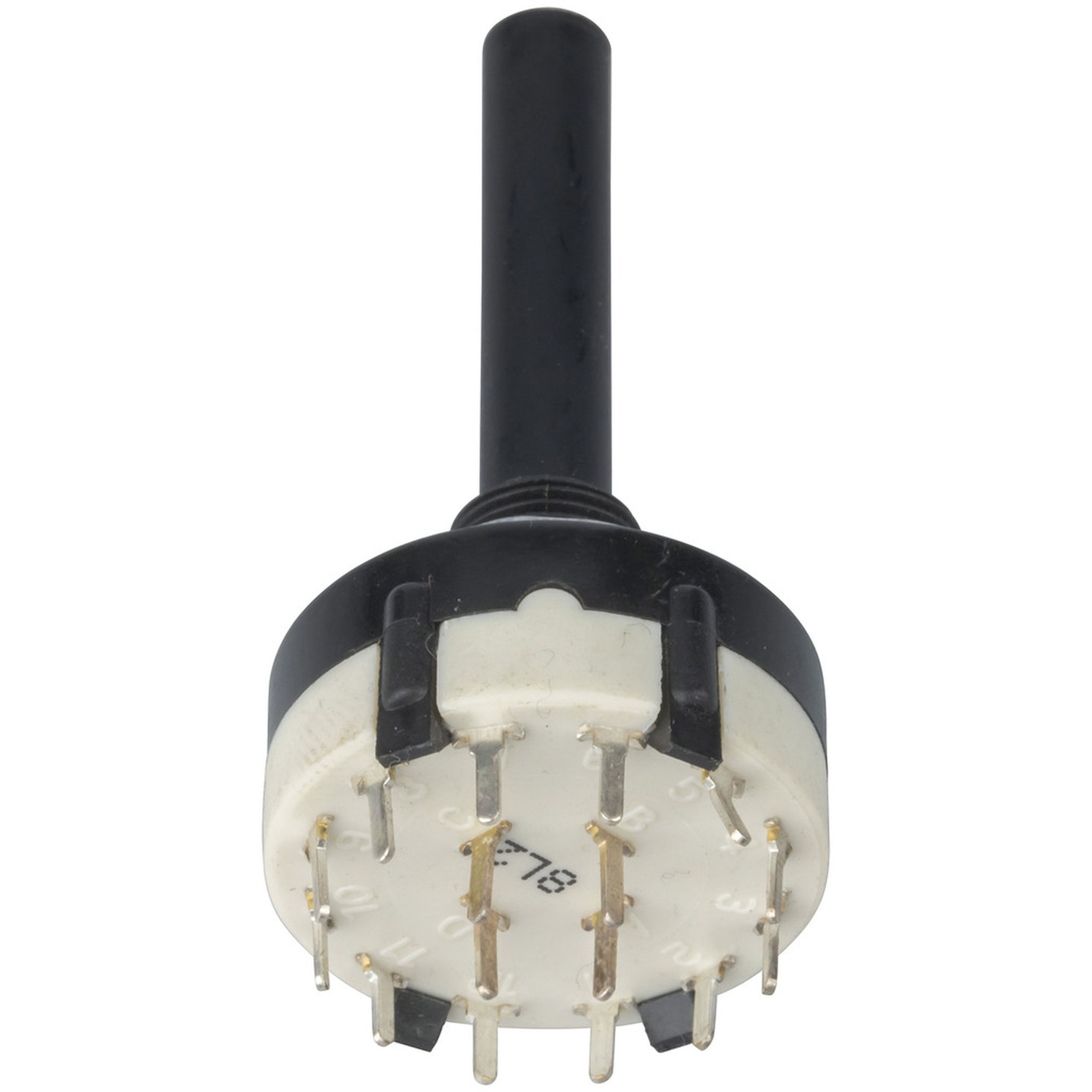

4 Pole Sealed PCB Rotary
- Cat No:
- SR1216
In Stock
$5.90
Description
These switches have a removable ring with tab which can be inserted into the switch several ways to your particular requirements. For example, if you purchased a 1 pole x 12 way (max) switch you could convert it to, say, 1 pole 7 way between stops. They have a standard 1/4 shaft.
4 pole, 2 and 3 position
4 pole, 2 and 3 position
Specifications
- Poles / Contacts
- 4.0 pole
- Throws / Positions
- 3.0 pos
- AC Current Rating
- 150.0 mA
- Break / Make Function
- Break Before Make (BBM)
- AC Voltage Rating
- 240.0 V
- Switch Type
- Rotary
- Switch Connection
- Spade Terminals
- Switch Type
- Rotary
- Poles / Contacts
- 4.0 pole
- Throws / Positions
- 3.0pos
- Switch Connection
- Spade Terminals
- Break/Make Function
- Break Before Make (BBM)
- AC Voltage rating
- 240.0V
- AC current rating
- 150.0mA
- Packaged Dimensions
- 8.0cm(Length) x 10.8cm(Width) x 5.8cm(Height)
