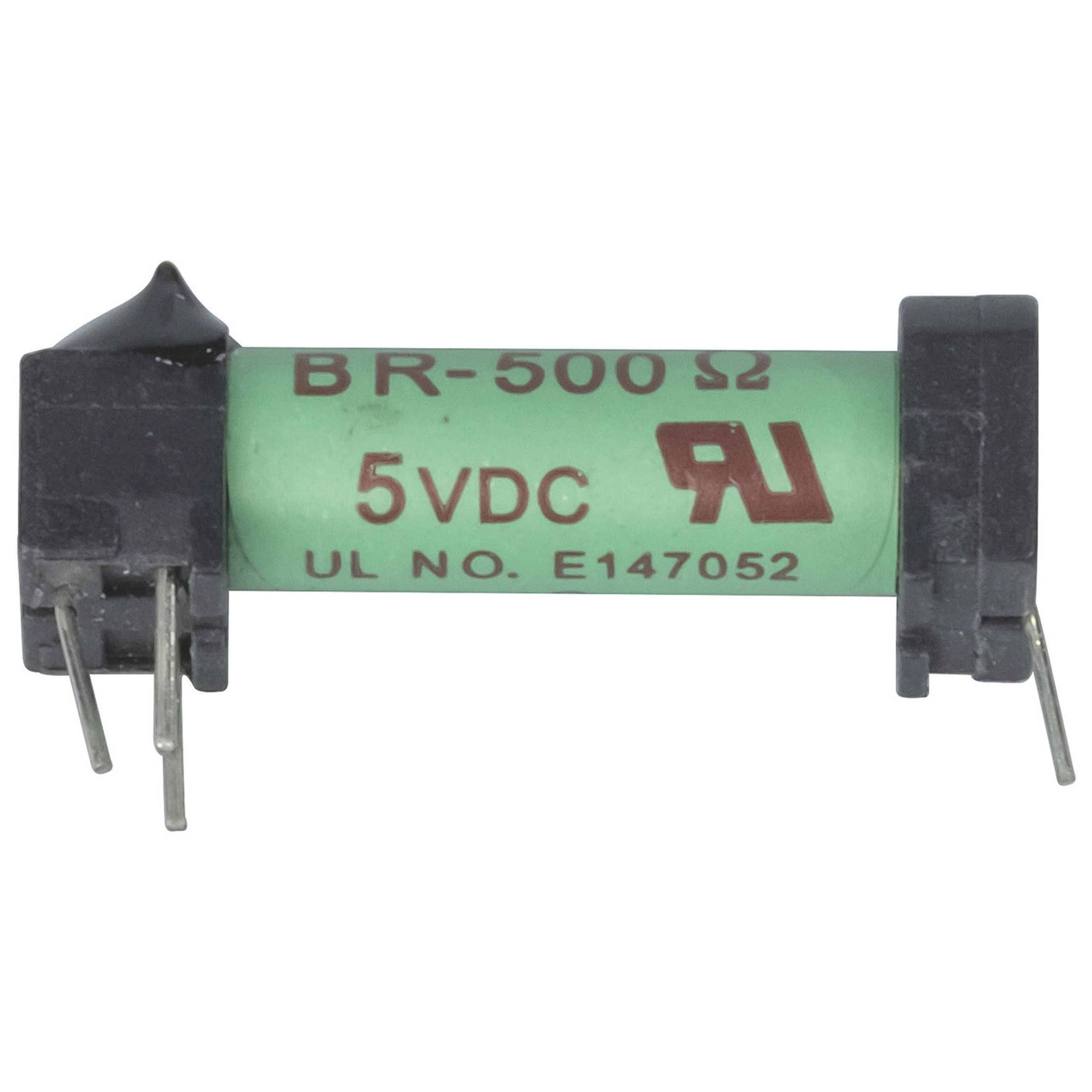

5V SPST DIL Reed Relay

Cat No:
SY4036
Sold as:1 Each
Carton size:2000
In Stock

$4.90

Description

Small and light weight.

Features:

- Pickup Voltage: 3.5V DC
- Allowable Voltage: 160%
- Power Consumption (W): 0.1

Specifications

Device Type
Reed Relay
Input
DC
Contact format
SPST
Nominal Voltage
5V
Pickup Voltage
3.5V
Dropout Voltage
0.5V
Coil Resistance
500Ω
Coil Current
20mA
Power Consumption
0.1W
DC Voltage
5V
DC Current Draw
1A
Packaged Dimensions
2.5 x 1.3 x 0.7 cm
