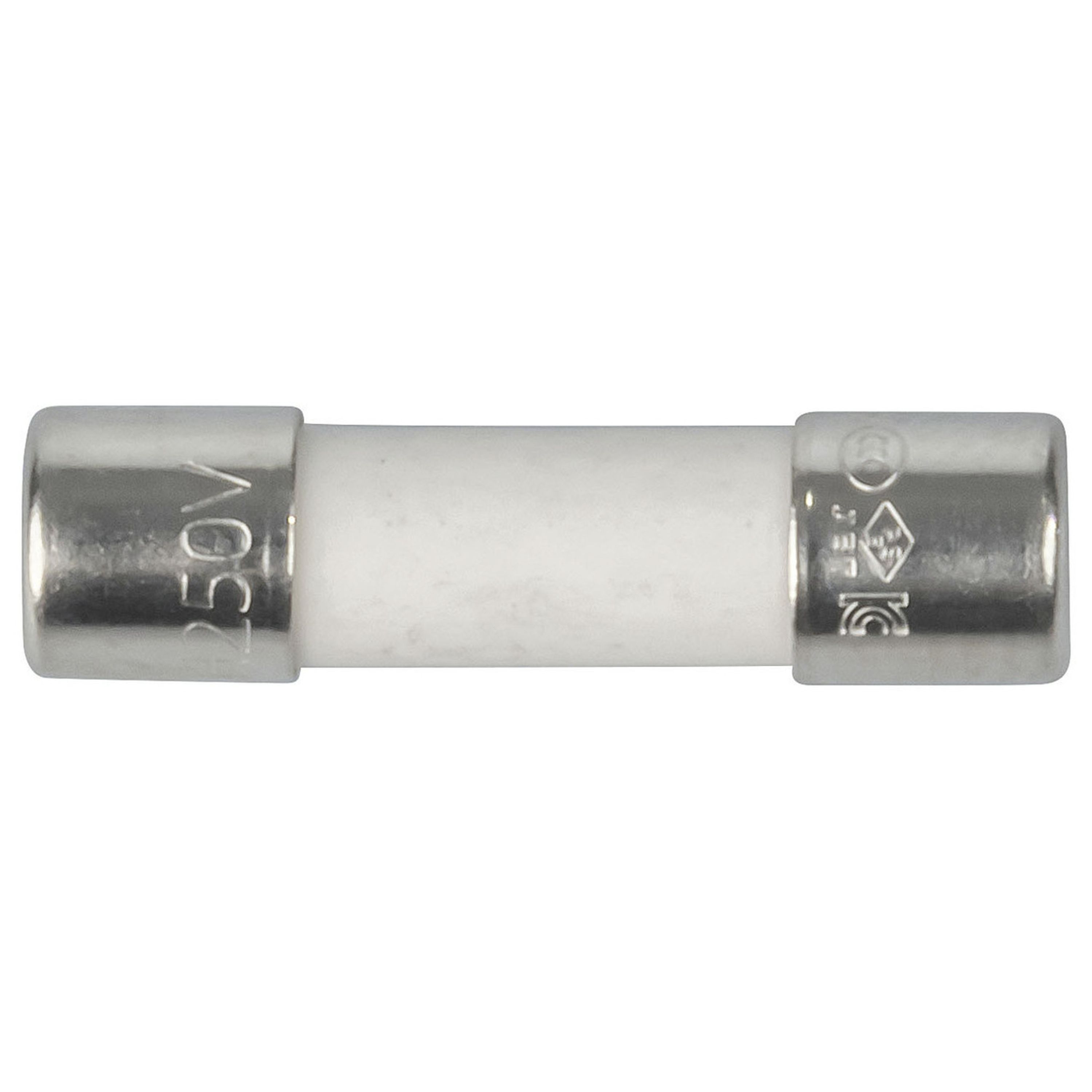

6.3A M205 Ceramic Slow Blow Fuse
- Cat No:
- SF2119
Sold as:1 Each
In Stock$2.20
Description
A ceramic fuse offers better thermal and arc protection during a high current episode compared to a glass fuse with the same specifications. Sometimes marked with an S or T before the current rating (for example T3.15A), these delayed action fuses allow for a temporary current surge without going above the fuse's current rating. Because of this, time delay fuses are most commonly used in applications where a large momentary load is expected such as motors at start-up.
Specifications
- Fuse Type
- M205
- Case Material
- Ceramic
- Blow Speed
- Slow blow
- Rated Current
- 6.3A

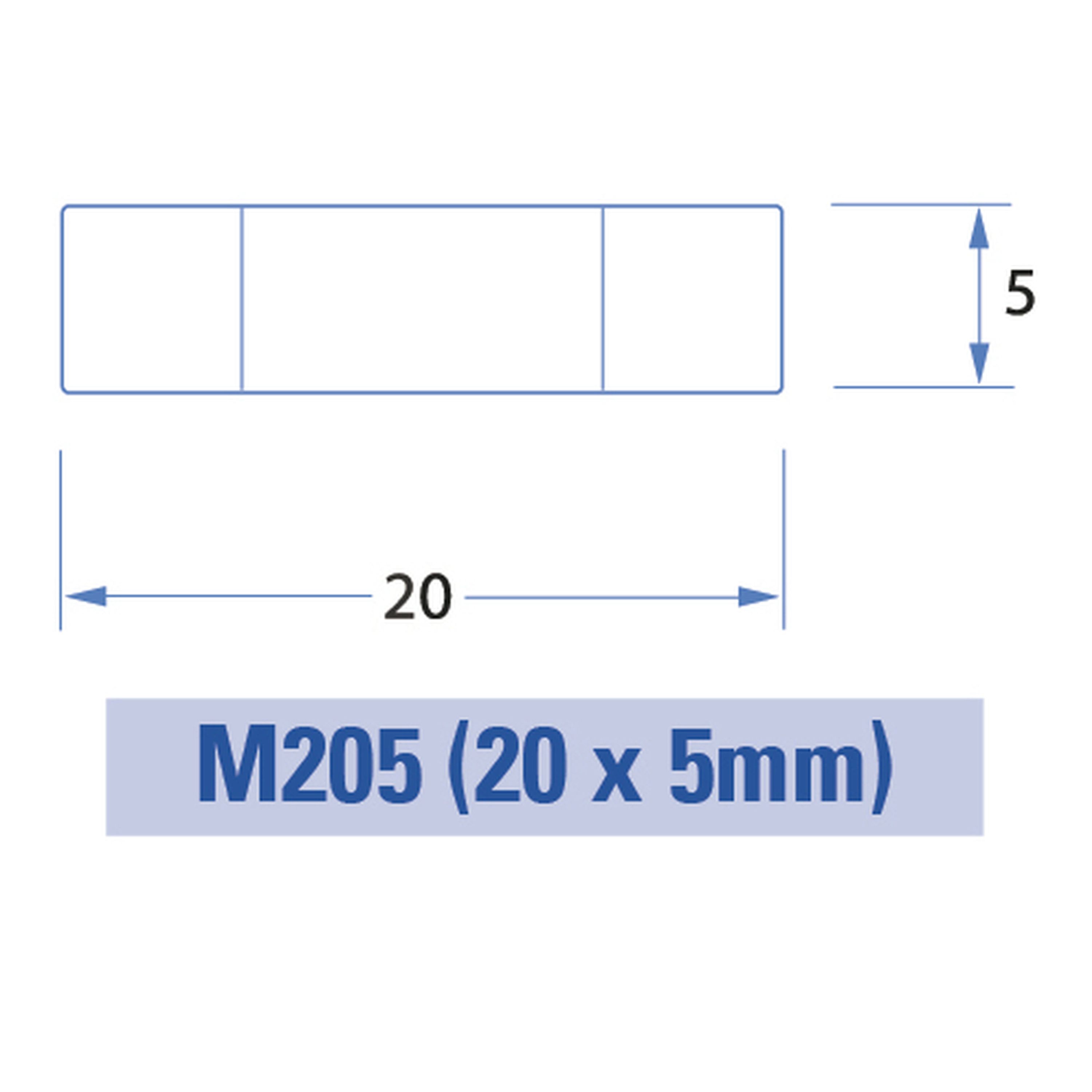

- Packaged Dimensions
- 2.0cm(Length) x 0.5cm(Width) x 0.5cm(Height)
