POWERTECH

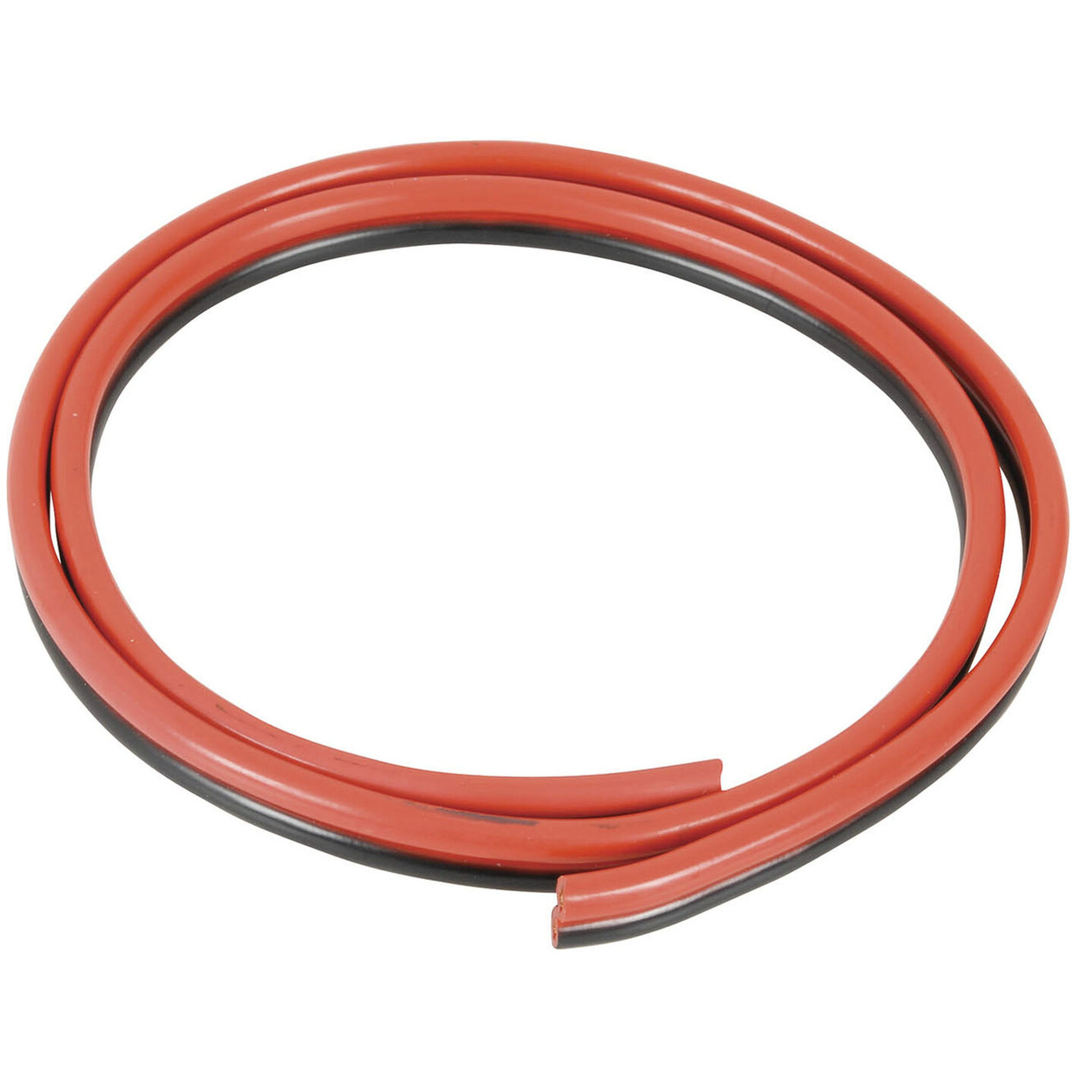

8 Gauge Figure 8 Power Cable - Red Black - Sold as 50m roll
- Cat No:
- WH3063
Sold as:Roll (50 Metre)
In Stock$15.90
Description
For higher current applications where twin core cabling is required. Red & black colour for easy identification.
• Conductor material: OFC
• Insulation material: PVC
• Resistance @ 20°C: 0.00252ohm/m
• Conductor material: OFC
• Insulation material: PVC
• Resistance @ 20°C: 0.00252ohm/m
Specifications
- Wire Category
- Hook up / power
- Retail Sales Unit
- Metre
- Roll Length
- 50.0m
- AWG
- 8.0
- Cross Sectional Area
- 8.0mm²
- Outer Diameter
- 6.7mm
- Conductor Overall Diameter
- 4.05mm
- Individual Conductor Strand Diameter
- 0.12mm
- Number of Conductor Strands
- 707.0pc
- Strand Weave Configuration
- (7x101) x 2
- Resistance per Linear Metre
- 2.4mΩ
- Core Material
- Tin Plated Copper
- Twisted Cores
- false
- OFC wire
- true
- Halogen Free Wire
- false
- UV Resistant Cable
- false
- Oil Resistant Wire
- false
- Number of Conductor Cores
- 2.0pc
- Colour
- Red
- Alternates available
- false
- DC current rating
- 56.0A
- Wire Category
- Power / Figure 8
- AWG
- 8.0
- Outer Diameter
- 6.7 x 13.5mm
- Conductor Overall Diameter
- 4.1mm
- Number of Conductor Strands
- 707.0
- Core Material
- Tinned Copper
- Resistance per Linear Metre
- 2.4Ω
- Retail Sales Unit
- Metre
- Roll Length
- 50m
- Insulation Material
- PVC
- Cable length
- 50.0m
- Packaged Dimensions
- 100.0cm(Length) x 1.36cm(Width) x 0.67cm(Height)
