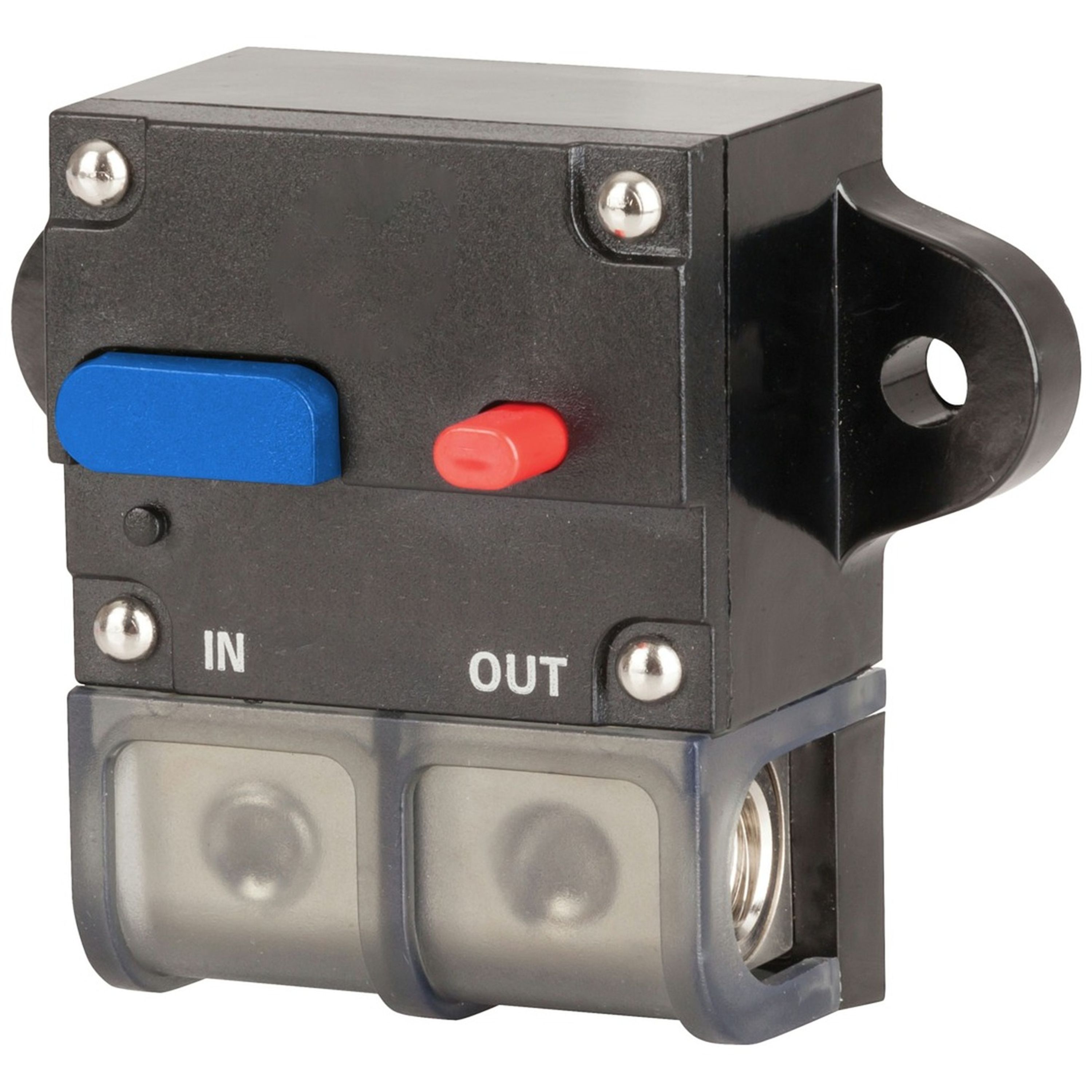

80A 32VDC Panel Mount Circuit Breaker
- Cat No:
- SZ2087
Sold as:1 Each
In Stock$55.90
Description
The reset switch is high grade and will not fail in a short period unlike other units in the market. It has a protective plastic cover to prevent accidental shortage. Incorporates multi-wire gauge inputs and outputs, perfect for high end car audio installations, automotive wiring or solar installations. Terminals are platinum plated. Not IP rated for water or dust protection.
Features:
- Rated maximum 80A current
- Rated maximum voltage 32VDC
- Trip-free operation
- Built-in brass block suits 0AWG wire
- Switchable/manual push-to-trip operation
- Visible trip indication
- Prominent trip/circuit breaker button
Specifications
- Length
- 85.0mm
- Width
- 68.0mm
- Height
- 35.0mm
- Weight
- 210.0g
- Packaged Dimensions
- 13.0cm(Length) x 7.5cm(Width) x 5.0cm(Height)
