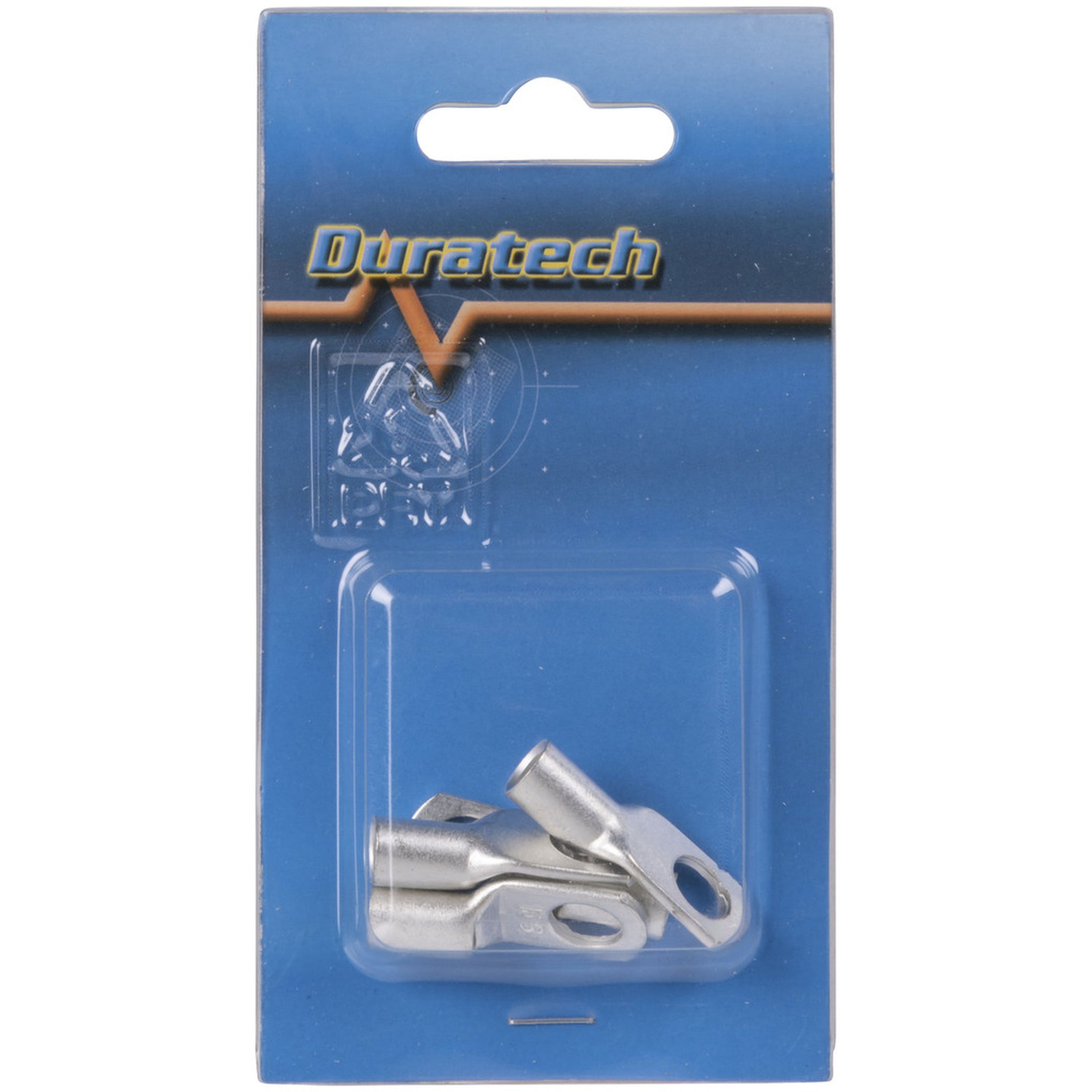

8mm Non-Insulated Eye Terminal 15mm2 6AWG Pack of 4
- Cat No:
- PT4933
In Stock
$7.20
Description
A packet of 8 8mm non-insulated 45A eye terminal connectors for cable sized up to 15mm squared. These lugs are best attached via a specialized crimping tool for optimum conductivity and secure fit.
Suits AWG 6 Cable
Specifications
- Type of quick connector
- Eye
- Terminal Size
- 8.0mm
- Pack Quantity
- 4.0pc
- Contact Material
- Tin Plated Copper
- Insulation
- Non Insulated
- Internal Terminal Size (Eye / Fork)
- 15.2mm
- Wire Diameter
- 10.0mm-10.0mm
- Wire Size (Cross Section)
- 10.0mm²,10.0mm²
- Wire Gauge
- 6.0AWG,6.0AWG
- Cable Entry Diameter
- 6.0mm,6.0mm
- Length
- 31.0mm
- Width
- 12.4mm
- Height
- 7.8mm
- Packaged Dimensions
- 11.9cm(Length) x 6.4cm(Width) x 1.7cm(Height)
