POWERTECHClearance
9-30V, 30VA, 1A Multi-Tapped - Type 2165 Transformer
- Cat No:
- MM2005
Sold as:1 Each
Out of Stock$41.90
Description
Traditional laminated iron core transformers suitable for new projects, hobby projects or as a replacement in existing equipment. They have a thermal fuse built into the primary winding for added safety and a wide variety is available to suit your specific needs.
• Primary Connection: 200mm Fly Leads
• Primary Connection: 200mm Fly Leads
Specifications
- Type of Transformer
- Laminated Core
- Case Type
- 2165.0
- Primary Winding Connection
- Flyleads
- Secondary Winding Connection
- Solder Tags
- Secondary Winding Configuration
- Multi-tapped
- Number of Taps
- 7.0pc
- Temperature Rise Above Ambient at Rated Power
- 60.0°C
- Regulation
- 8.0%
- Core Material
- Laminated Iron
- Magnetising Current
- 60.0mA

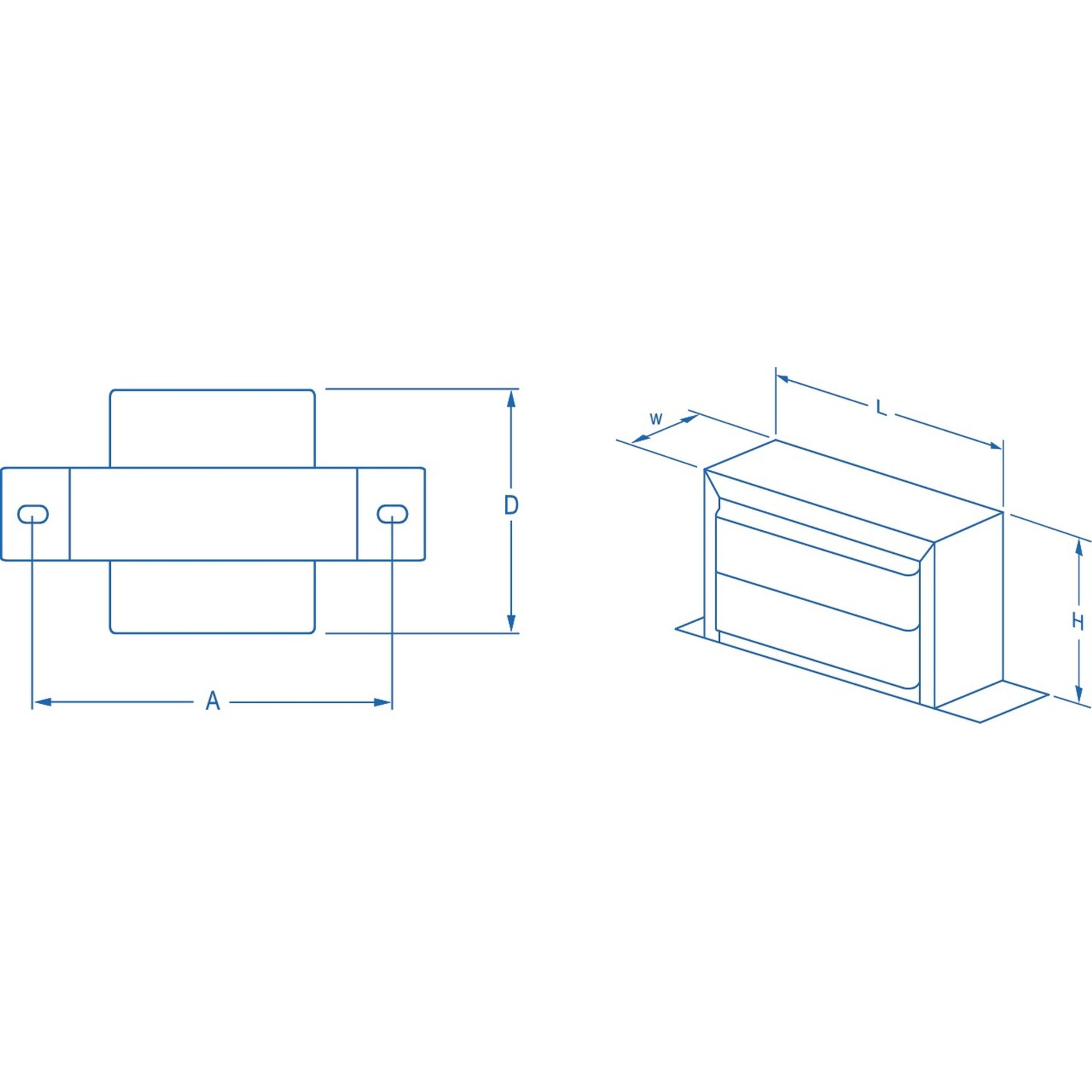

- Mount Spacing (A)
- 85.0mm
- Core Winding Depth (D)
- 65.0mm
- Case Length (L)
- 69.0mm
- Case Width (W)
- 35.0mm
- Case Height (H)
- 59.0mm
- Mains Voltage Range
- 240.0V,240.0V,240.0V
- Max Input Power
- 30.0VA
- AC Voltage rating

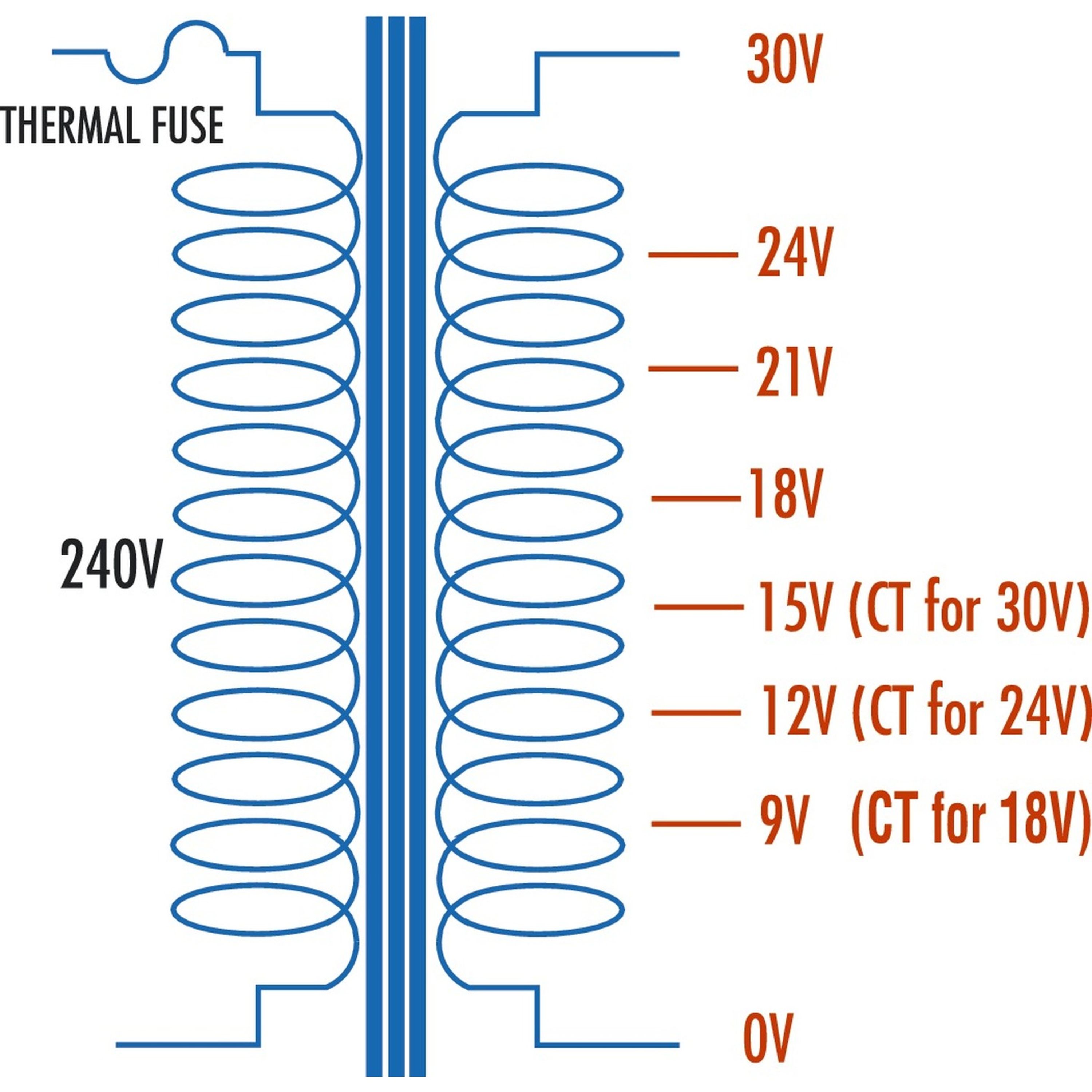

- 9.0V,12.0V,15.0V,18.0V,21.0V,24.0V,30.0V
- AC current rating
- 1.0A
- Type of converter or transformer
- laminated/toroidal transformer
- Weight
- 955.0g
- Packaged Dimensions
- 10.2cm(Length) x 6.4cm(Width) x 6.8cm(Height)
