90W Universal Auto-Switching Laptop Power Supply
- Cat No:
- MP3326
$129.00
Description

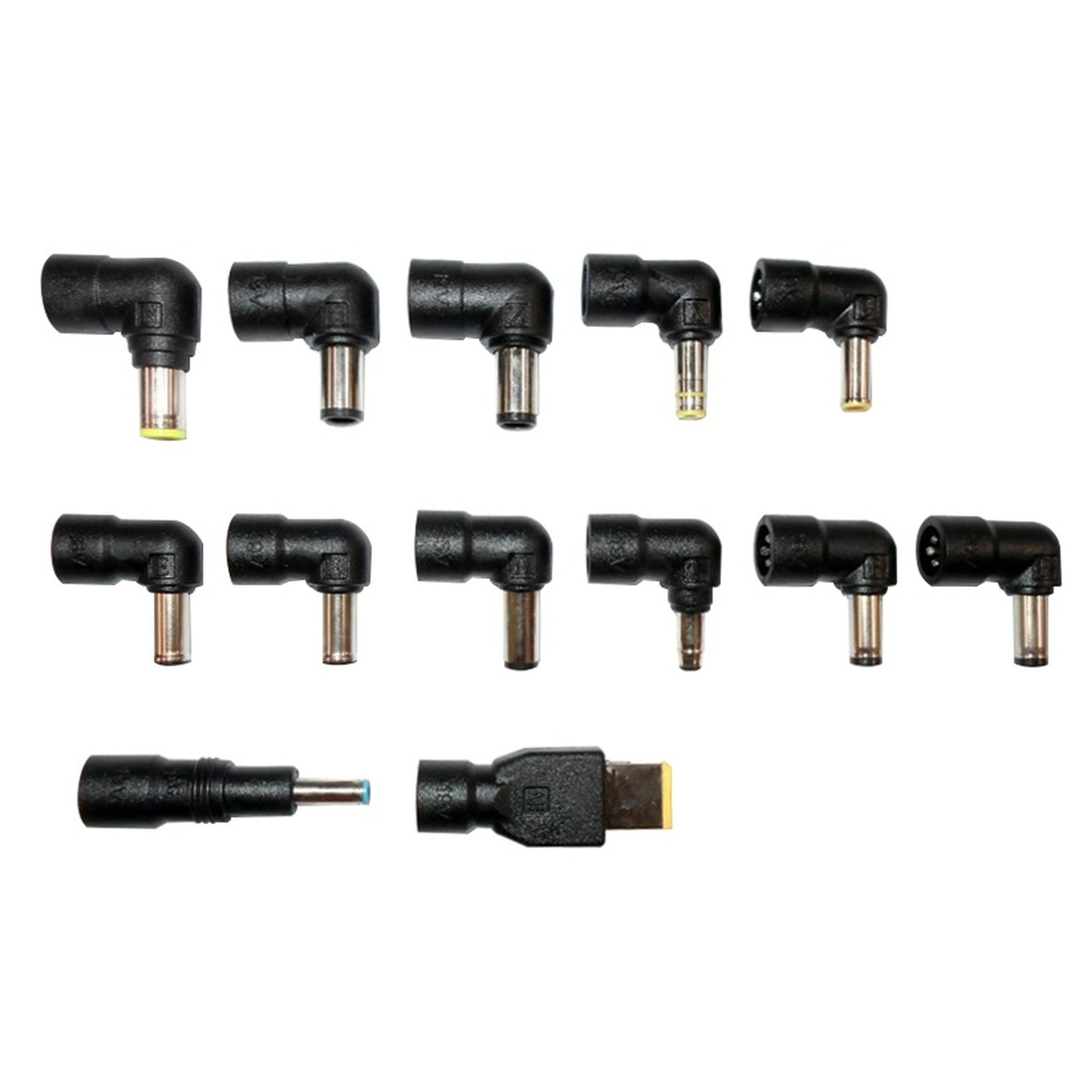

Auto-switching voltage with overload and shortcircuit protection this regulated laptop power supply is compatible with most laptops on the market. The unit features a discrete LCD to show the operating voltage and a USB port for charging your phone or mp3 player. It's supplied with 11 different connectors, including the latest special Dell and HP connectors. Black piano finish for complete awesomeness. Suits most laptops up to 15 screen size.
Outputs:
15/16VDC, 4.74A
19VDC, 4.2A
5VDC, 2.1A (USB Power)

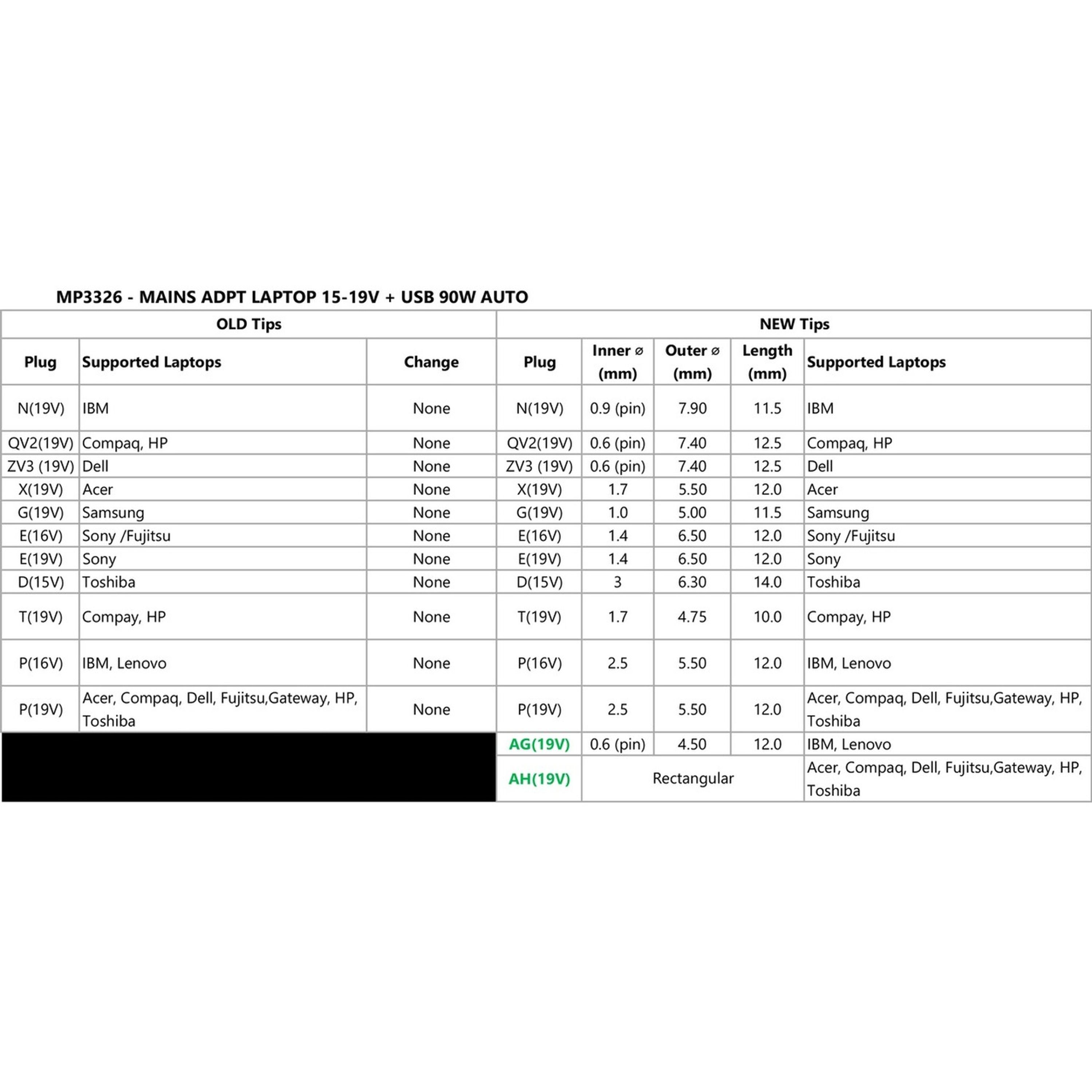

Connector D:
15V, 3.0x6.3mm
Suits: Toshiba
Connector E:
16V, 1.4x6.5mm
Suits: Fujitsu, Sony
Connector E:
19V, 1.4x6.5mm
Suits: Sony
Connector G:
19V, 1.0(pin)x5.0mm
Suits: Samsung
Connector N:
19V, 0.9(pin)x7.9mm
Suits: IBM
Connector P:
16V, 2.5x5.5mm
Suits: IBM, Lenovo
Connector P:
19V, 2.5x5.5mm
Suits: Acer, Compaq, Dell, Fujitsu, Gateway, HP, Toshiba
Connector Q:
19V, 0.6(pin)x7.4mm
Suits: Compaq, HP
Connector T:
19V, 1.7x4.75mm
Suits: Compaq, HP
Connector X:
19V, 1.7x5.5mm
Suits: Acer
Connector Z:
19V, 0.6(pin)x7.4mm
Suits: Dell
Connector AG:
19V, 0.6(pin)x4.5mm
Suits: HP
Connector AH:
19V, Rectangular
Suits: Lenovo
Specifications
- Mains Voltage Range
- 100V, 240V
- Suitable For
- Laptop
- Voltage Selection
- Automatic via plug
- Number of plugs or sockets
- 11pc
- Plugs to Suit
- Hewlett Packard, Toshiba, Dell, Sony, Samsung
- USB Port Current
- 2.1A
- Connection Type
- Multi Plug
- DC Voltage
- 15V, 16V, 19V
- DC current rating
- 4.74A
- Continuous Power
- 90W
- Length
- 126mm
- Width
- 55mm
- Height
- 31mm
- Packaged Dimensions
- 20.5 x 13.5 x 5.1 cm
