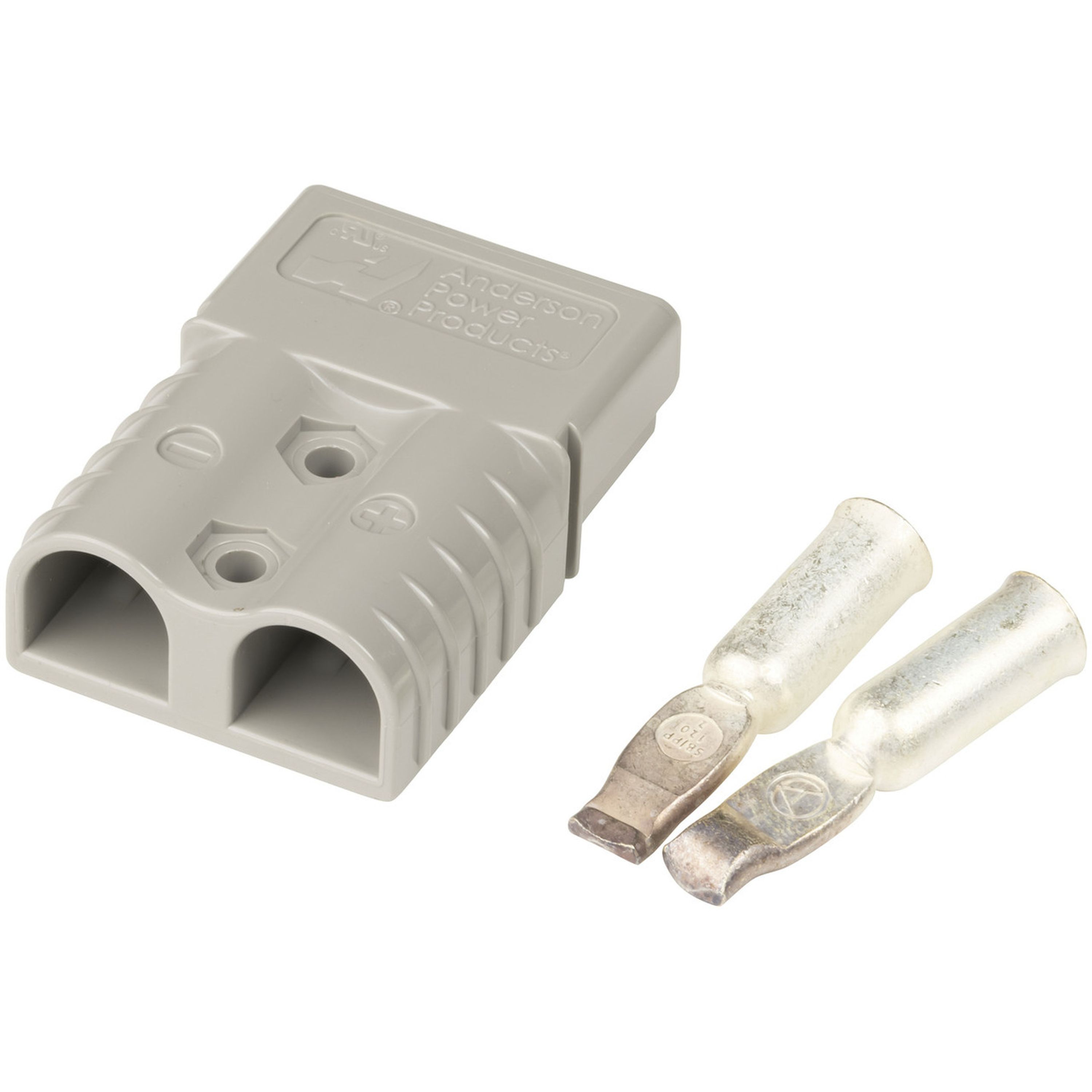

Anderson 120A Power Connector
- Cat No:
- PT4422
In Stock
$24.90
Description
Used widely in both domestic and industry, you'll find this connector in many 4WD applications, boating, automotive and other industries. Supplied individually with a pair of contacts.
Contact Wire Size: 33.6mm2 (2 AWG)
Max Wire Insulation Diameter: 14.6mm
Contact Retention Force: 45.5kg (100lbs)
Operating Temperature: -20 to +125 degrees C
Contact Wire Size: 33.6mm2 (2 AWG)
Max Wire Insulation Diameter: 14.6mm
Contact Retention Force: 45.5kg (100lbs)
Operating Temperature: -20 to +125 degrees C
Specifications
- Operating Temperature
- 125.0°C
- Plug or Socket Type
- Anderson 120A 2 Pole
- Device
- Plug
- Attachment Method
- Crimp
- Pack Quantity
- 1.0pc
- Contacts / Pins
- 2.0pc
- Case Material
- Plastic
- DC Voltage
- 600.0V
- DC current rating
- 120.0A
- Device Type
- Mains Socket
- Plug or Socket Type
- AU/NZ 3-Pin Socket
- Contacts / Pins
- 3-Pin
- Attachment Method
- Screw
- Case Material
- Plastic
- Contact Material
- Brass
- Cable Entry Diameter
- 8mm
- Colour Coded
- Yes (Grey)
- Packaged Dimensions
- 5.8cm(Length) x 9.3cm(Width) x 3.1cm(Height)
