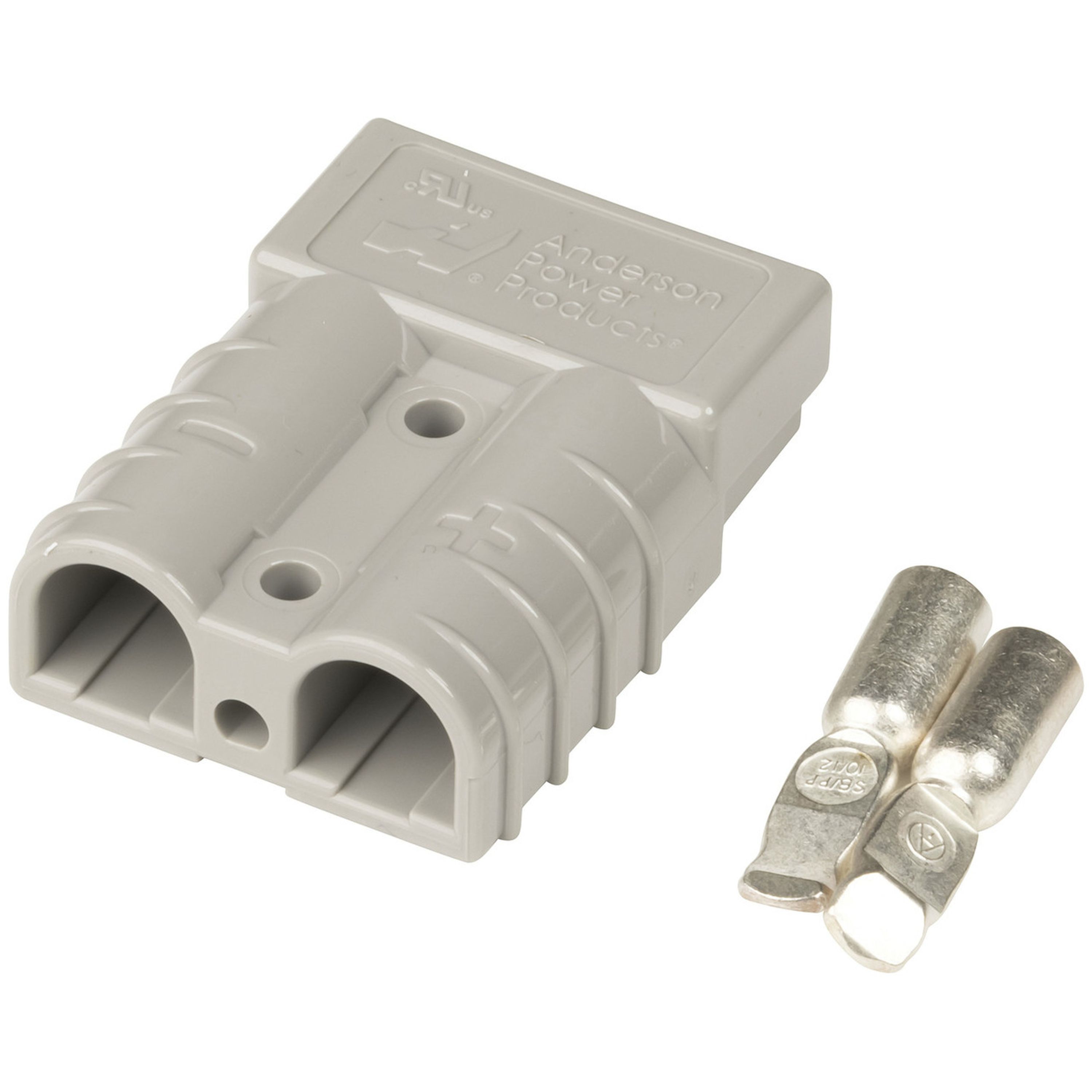

Anderson 50A Power Connector 10-12 Gauge Contacts
- Cat No:
- PT4427
Sold as:1 Each
In Stock$16.90
Description
Used widely in both domestic and industry, you'll find this connector in many 4WD applications, boating, automotive and other industries. Supplied as a moulded 2 pole with contacts.
• Contact Wire Size: #12-10 AWG
• Max Wire Insulation Diameter: 11mm
• Contact Retention Force: 22kg
• Operating Temperature: -20 to +105 degrees C
Specifications
- DC current rating
- 50.0A
- DC Voltage
- 600.0V
- Operating Temperature
- 125.0°C
- Plug or Socket Type
- Anderson 50A 2 Pole
- Device
- Plug
- Attachment Method
- Crimp
- Pack Quantity
- 1.0pc
- Contacts / Pins
- 2.0pc
- Case Material
- Plastic
- Packaged Dimensions
- 9.0cm(Length) x 5.7cm(Width) x 2.7cm(Height)
