Duinotech

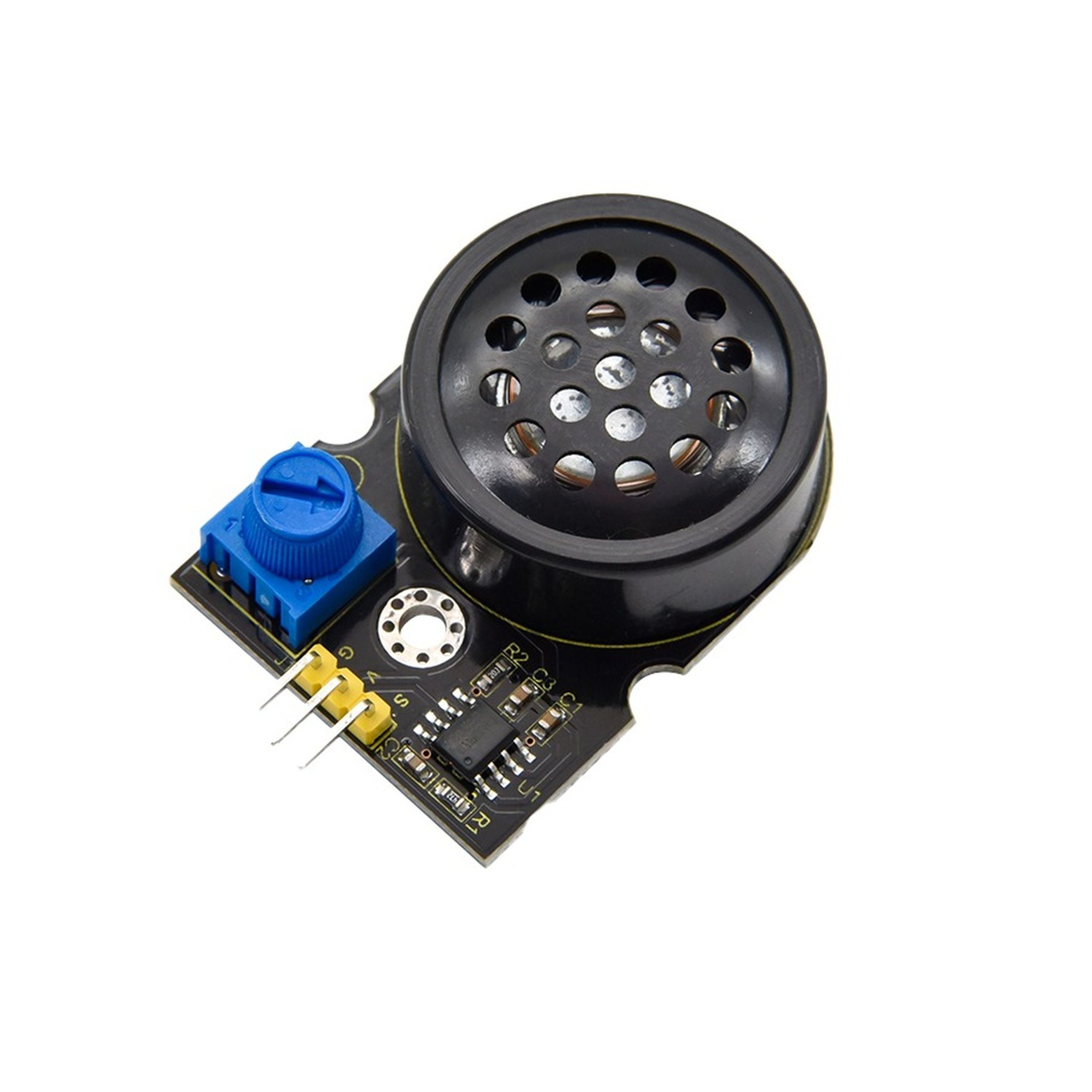

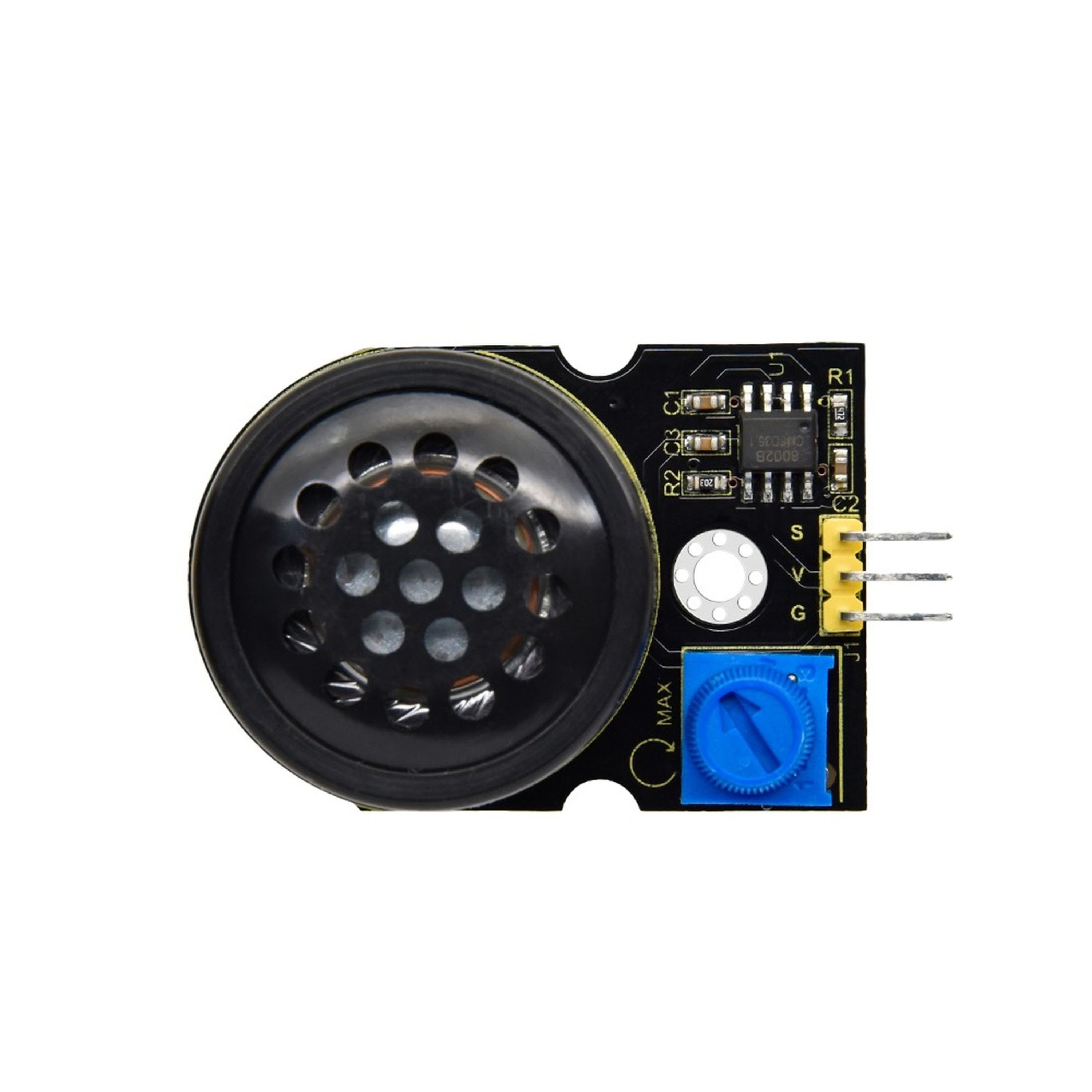

Arduino Compatible Audio Amplifier with Speaker Module
- Cat No:
- XC3744
In Stock
$13.90
Description
An easy way to add audio effects or music to your next project. The compact board measures just 47mmm long
Features:
- 23mm diameter speaker
- 2 watt amplifier
- Volume control trimpot
- Powered by 5 volts
Note: Before use, please adjust the sound volume to minimum to avoid damaging the speaker.
Specifications
- DC current rating
- 500.0mA
- DC Voltage
- 5.0V
- Length
- 47.0mm
- Width
- 30.0mm
- Height
- 13.0mm
- Weight
- 8.4g
- Type of Amplifier
- IC Module
- Number of Channels
- 1.0ch
- Power Per Channel into Low Impedence (WRMS)
- 2.0W
- Speaker Type
- Hobby Speaker
- Nominal Size
- 23.0mm
- RMS Power Rating
- 0.15W
- Frequency Response
- 800.0Hz-4.0Hz
- Sensitivity (SPL@1W, 1m)
- 80.0dB<sub>SPL</sub>
- Packaged Dimensions
- 12.5cm(Length) x 7.4cm(Width) x 1.4cm(Height)
