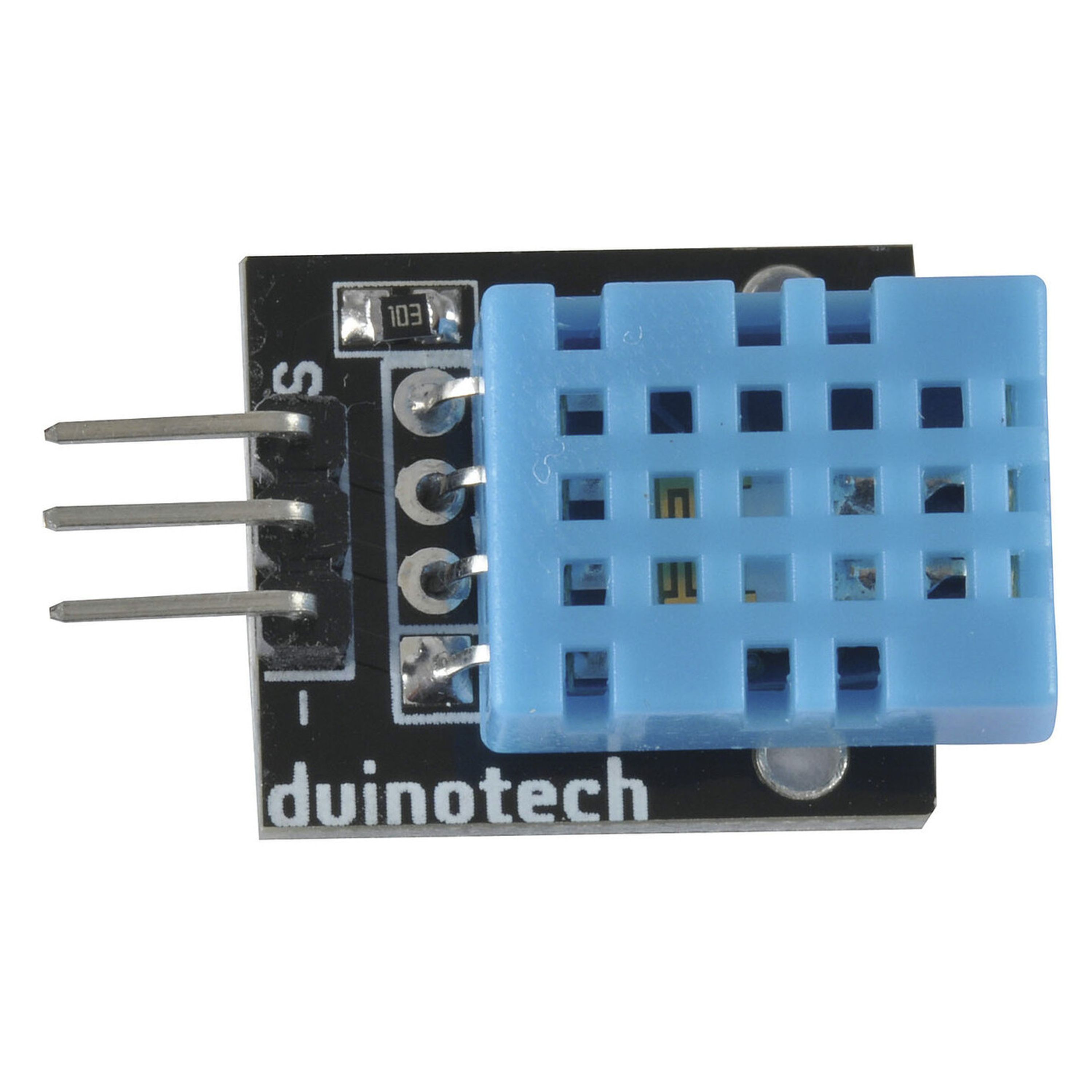

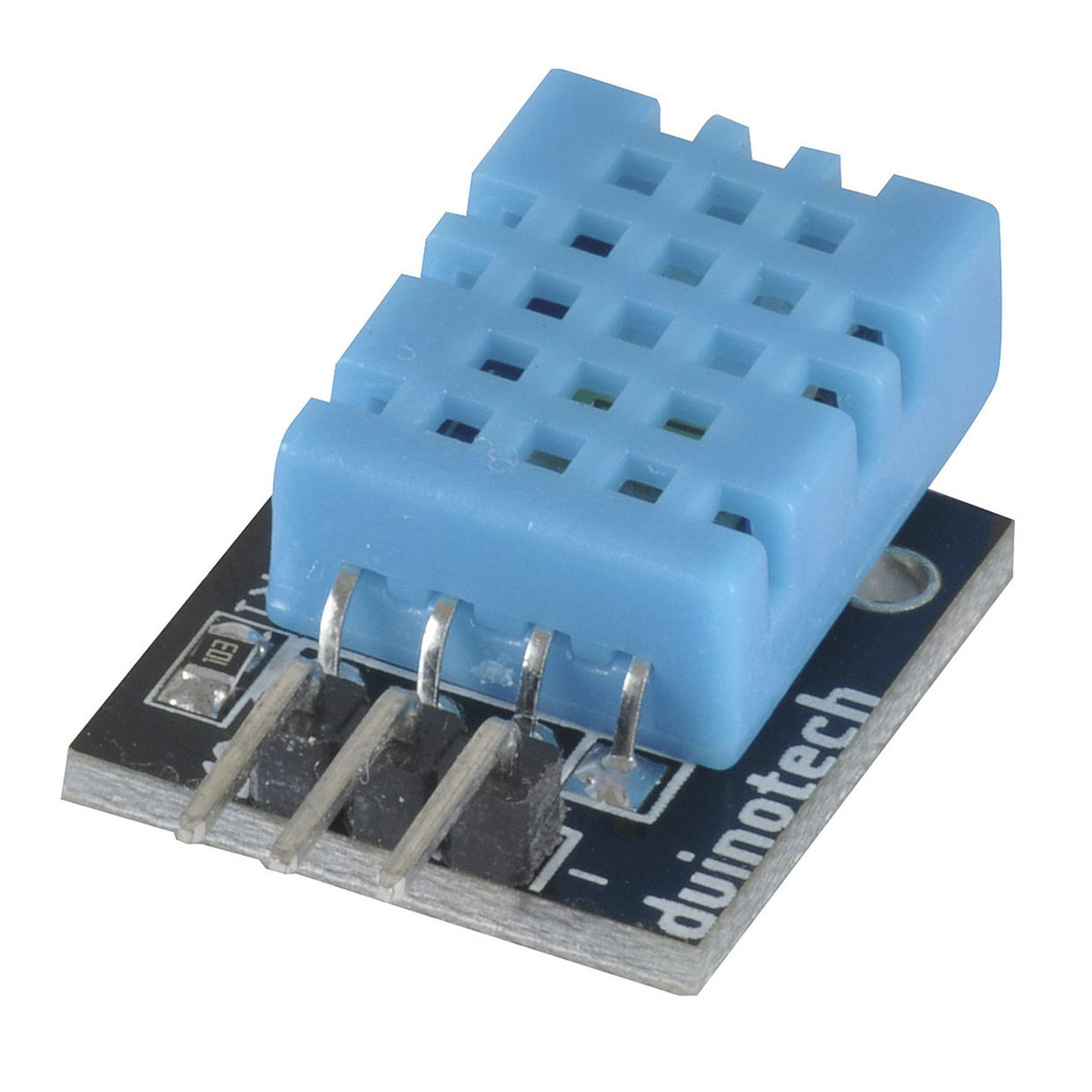

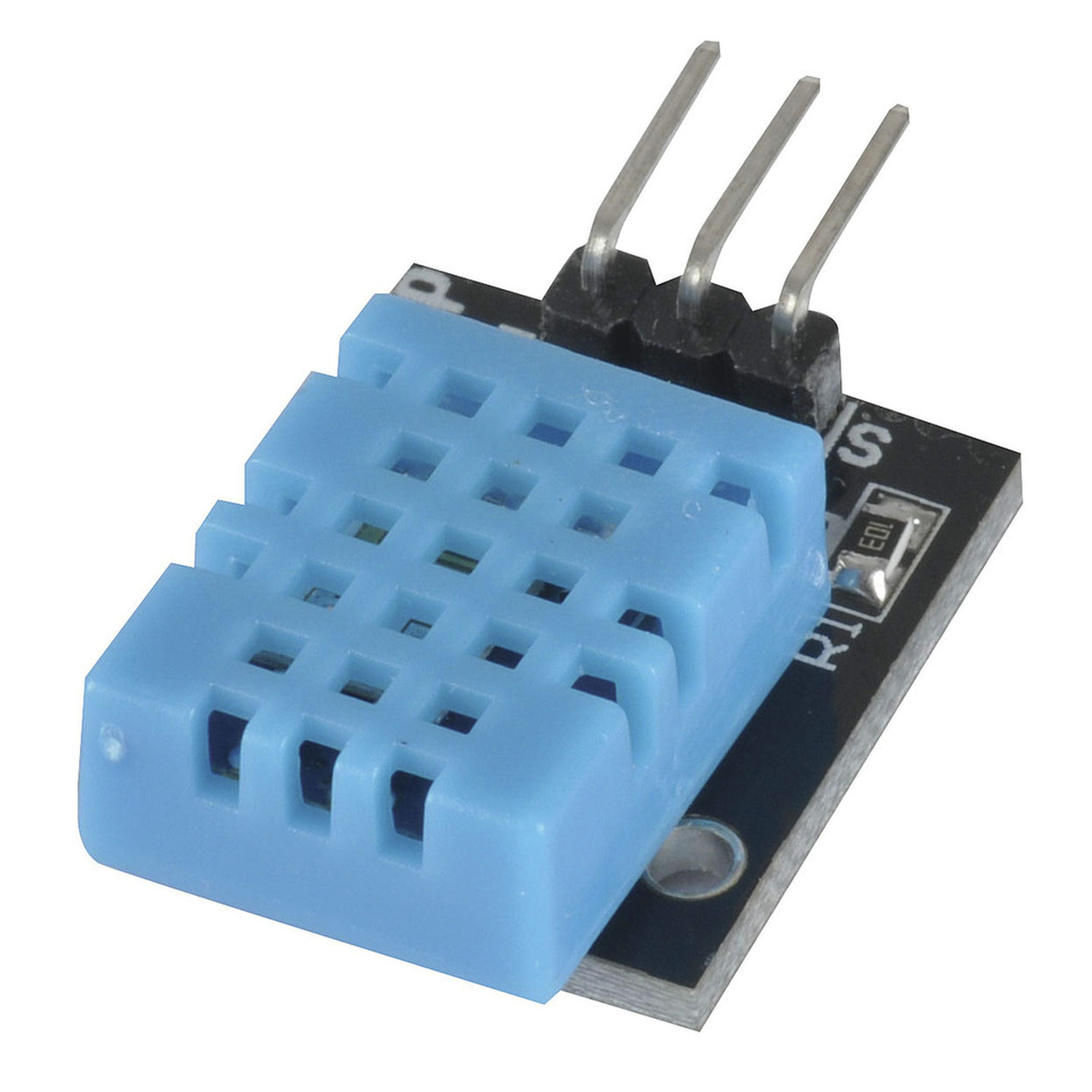

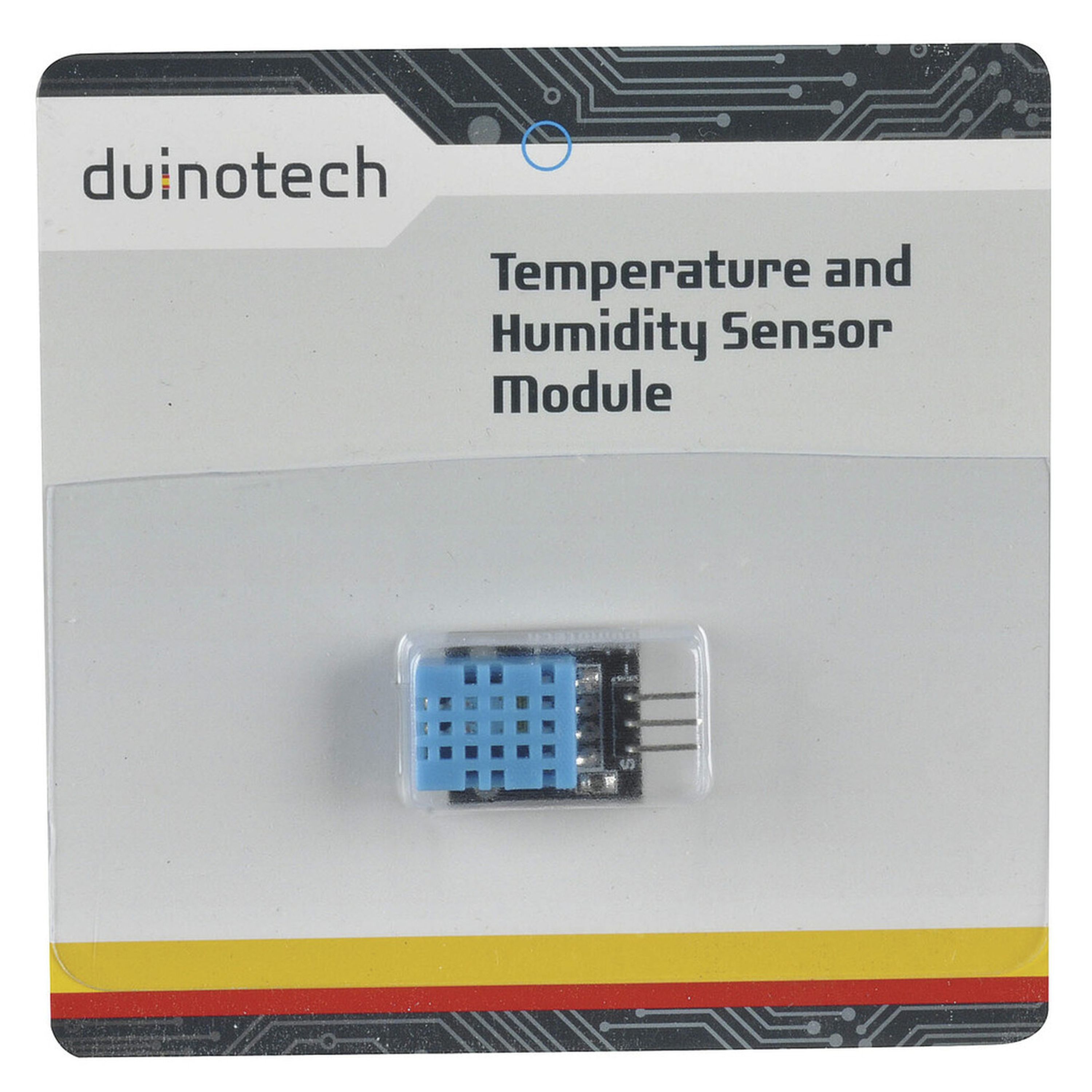

Arduino Compatible Temperature and Humidity Sensor Module
- Cat No:
- XC4520
Sold as:1 Each
In Stock$13.90
Description
Measure both temperature and humidity with this nifty module. Fully digital operated so no analogue-to-digital calibration is required. Features resistive-type humidity measurement.
Features:
• Arduino™ library available.
• Protocol: 1-Wire(Not Dallas 1-Wire, one data pin is required per sensor used)
• Temperature Range: 0 ºC - 50 ºC +/- 2 ºC
• Humidity Range: 20 – 80% +/- 5%
• Sample Rate: 1Hz
Specifications
- Linker Kit Compatible
- true
- Required Supply Voltage
- 3.0V,5.0V
- Sensor Outputs
- 1-wire protocol sends temp and humidity
- Length
- 20.0mm
- Width
- 52.0mm
- Height
- 13.0mm
- Packaged Dimensions
- 6.9cm(Length) x 4.6cm(Width) x 2.5cm(Height)
