Duinotech

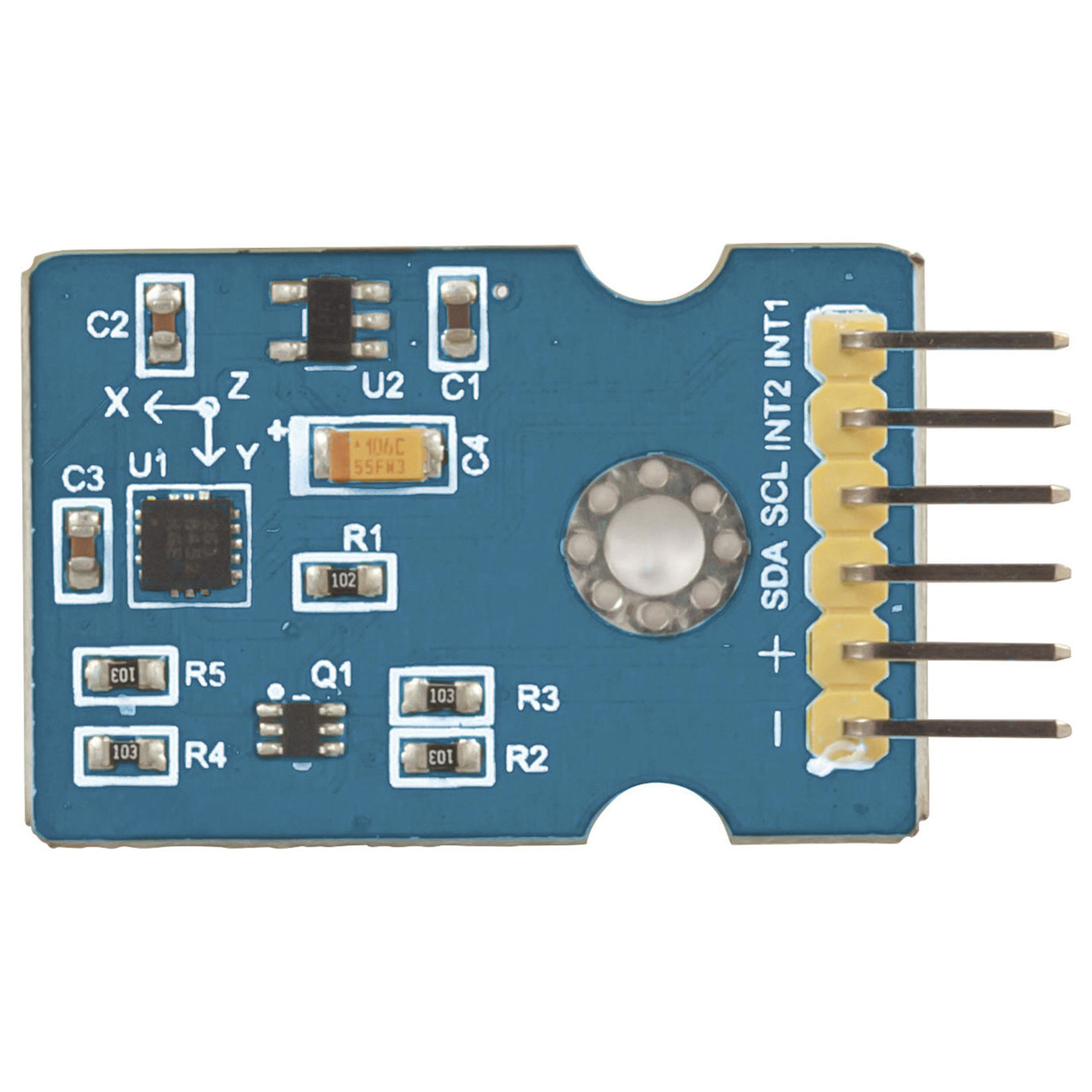

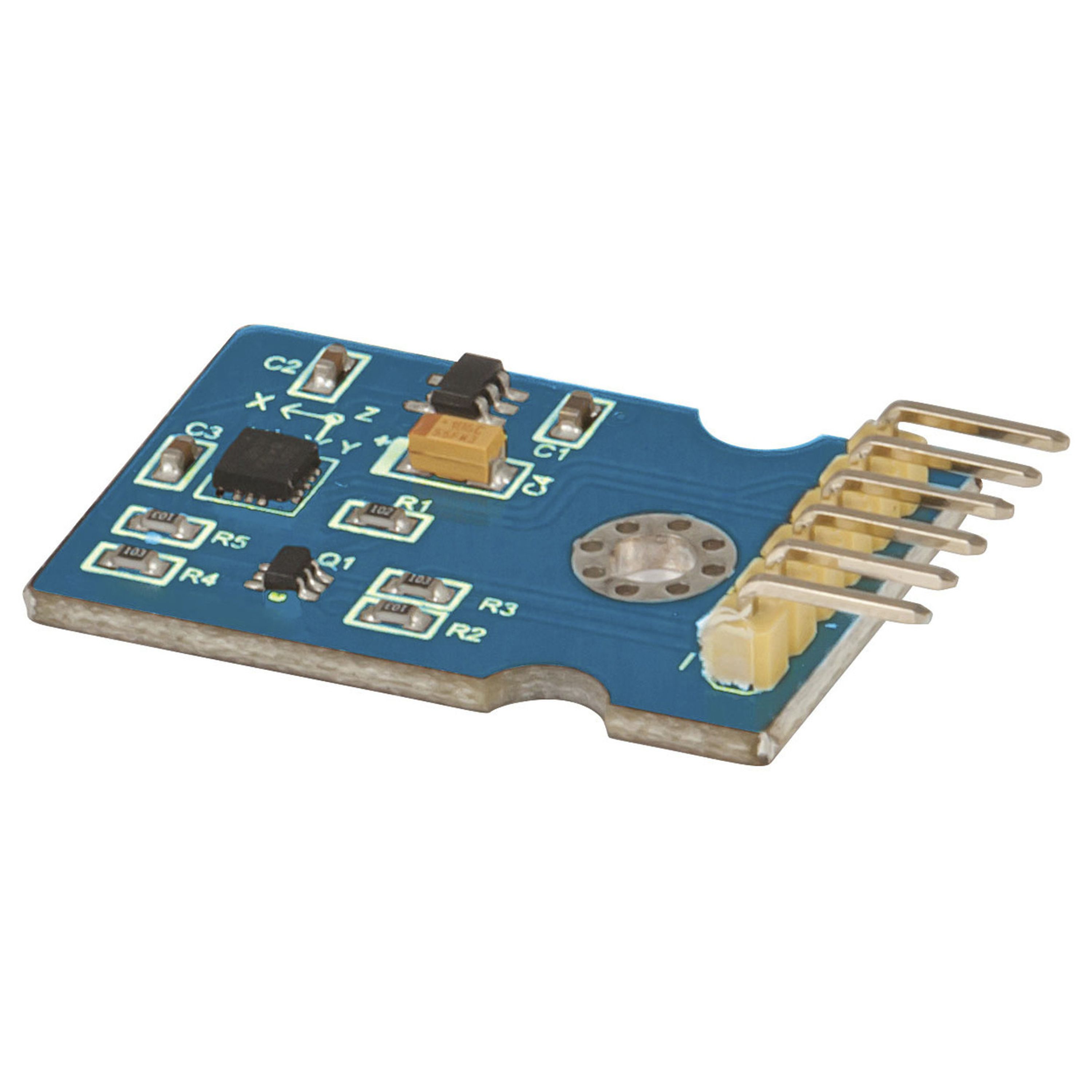

Arduino Compatible Tri-Axis Digital Tilt Sensor
- Cat No:
- XC3732
In Stock
$11.90
Description
Use this high performance acceleration sensor module in your project to detect direction (transverse/longitudinal), as well as free fall, pulse, and shake detection. The on-board MMA8452Q is a smart low-power, three-axis, capacitive micromachine acceleration sensor with 12-bit resolution. Users are able to set a range of ±2g, ±4g, or ±8g, which can output high-pass filtering data and non-filtered data in real-time. An embedded function can also be used to generate an inertial wake-up interrupt signal, which enables MMA8452Q to maintain a low-power mode in the static state while monitoring the event.
Features:
Features:
- 12 bit and 8 bit digital outputs
- I2C digital output interface (up to 2.25MHz with 4.7kΩ pull-up resistor)
- Two programmable interruption pins applied to six interruption sources
- Three motion detection embedded channels: free fall detection, pulse detection, shaking detection
- Direction (transverse/longitudinal) detection with setting lag compensation
- Automatic arousal and auto-dormant ODR can be automatically altered
- High-pass filtering data can be exported in real time
Specifications:
- Interface Voltage: 1.6V to 3.6V
- Optional Dynamic Range: ±2g/±4g/±8g
- Output Data Rate (ODR) Range: 1.56Hz to 800Hz
- Noise: 99μg/√Hz
Specifications
- Required Supply Voltage
- 1.6V,3.6V
- DC current rating
- 6.0µA
- DC Current Surge Rating
- 165.0A
- Length
- 35.0mm
- Width
- 20.0mm
- Height
- 7.0mm
- Weight
- 2.6g
- Packaged Dimensions
- 11.3cm(Length) x 6.1cm(Width) x 1.1cm(Height)
