Arduino

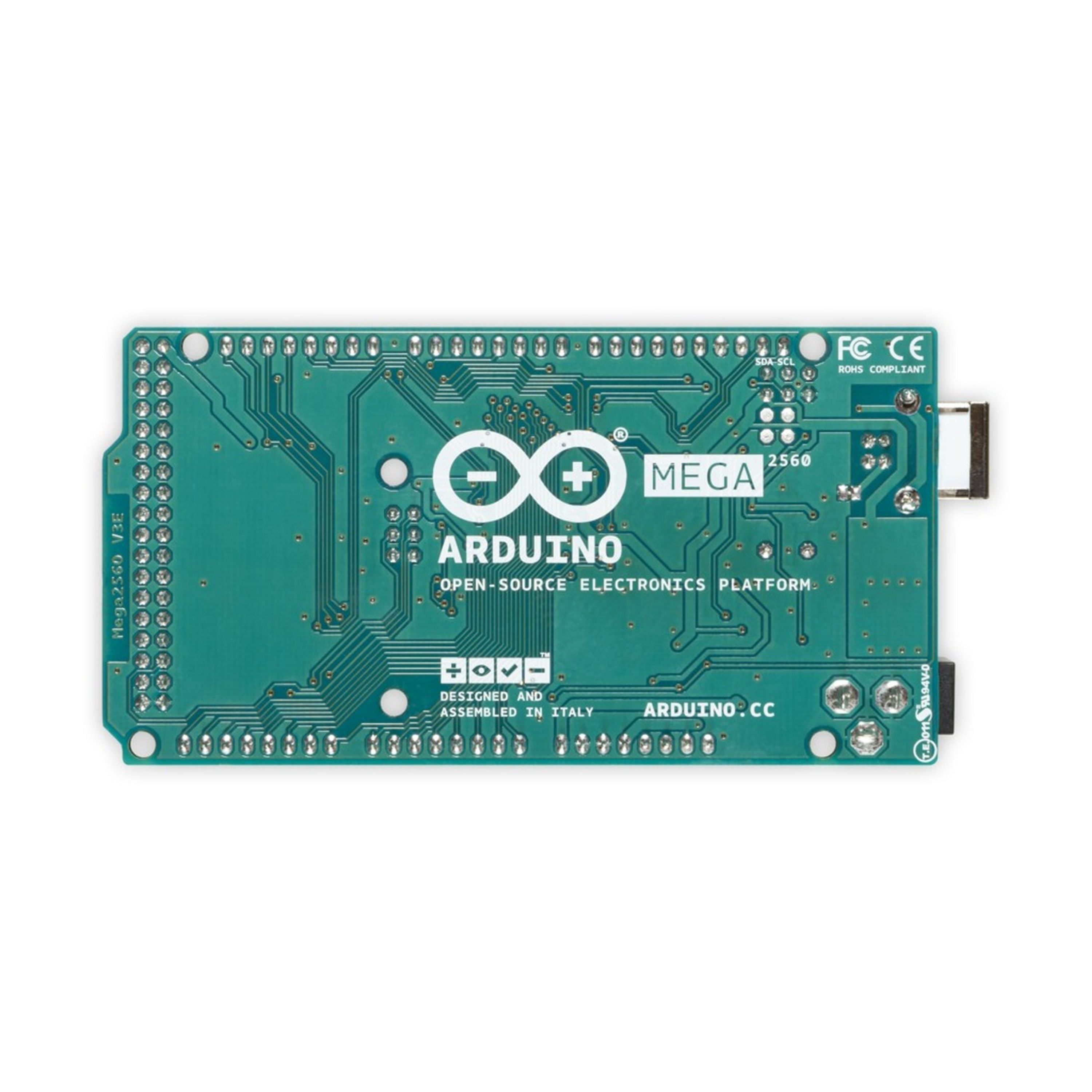

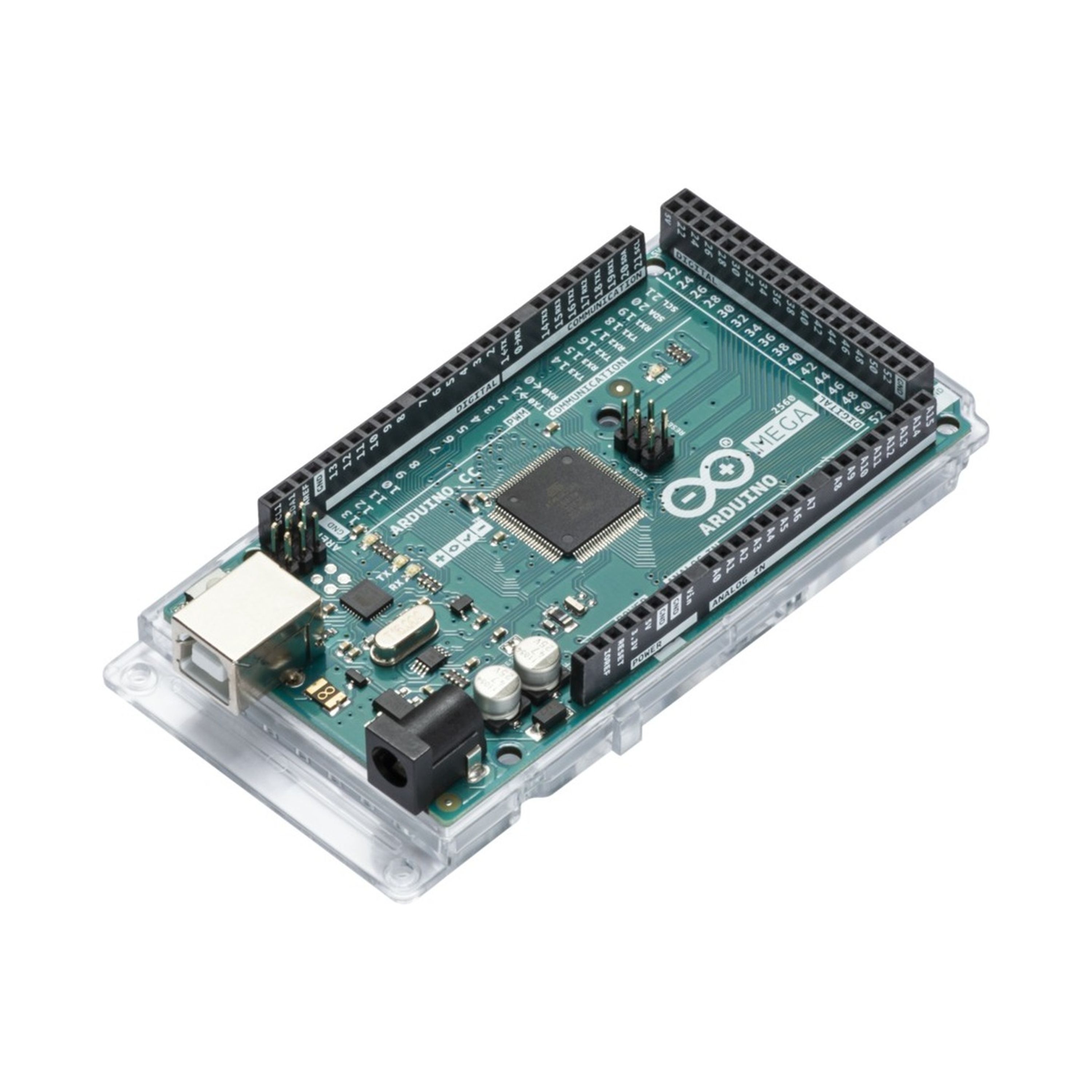

Arduino Mega2560 Rev3 Development Board
- Cat No:
- XC9203
- MPN:
- A000066
Sold as:1 Each
In Stock$109.00
Description

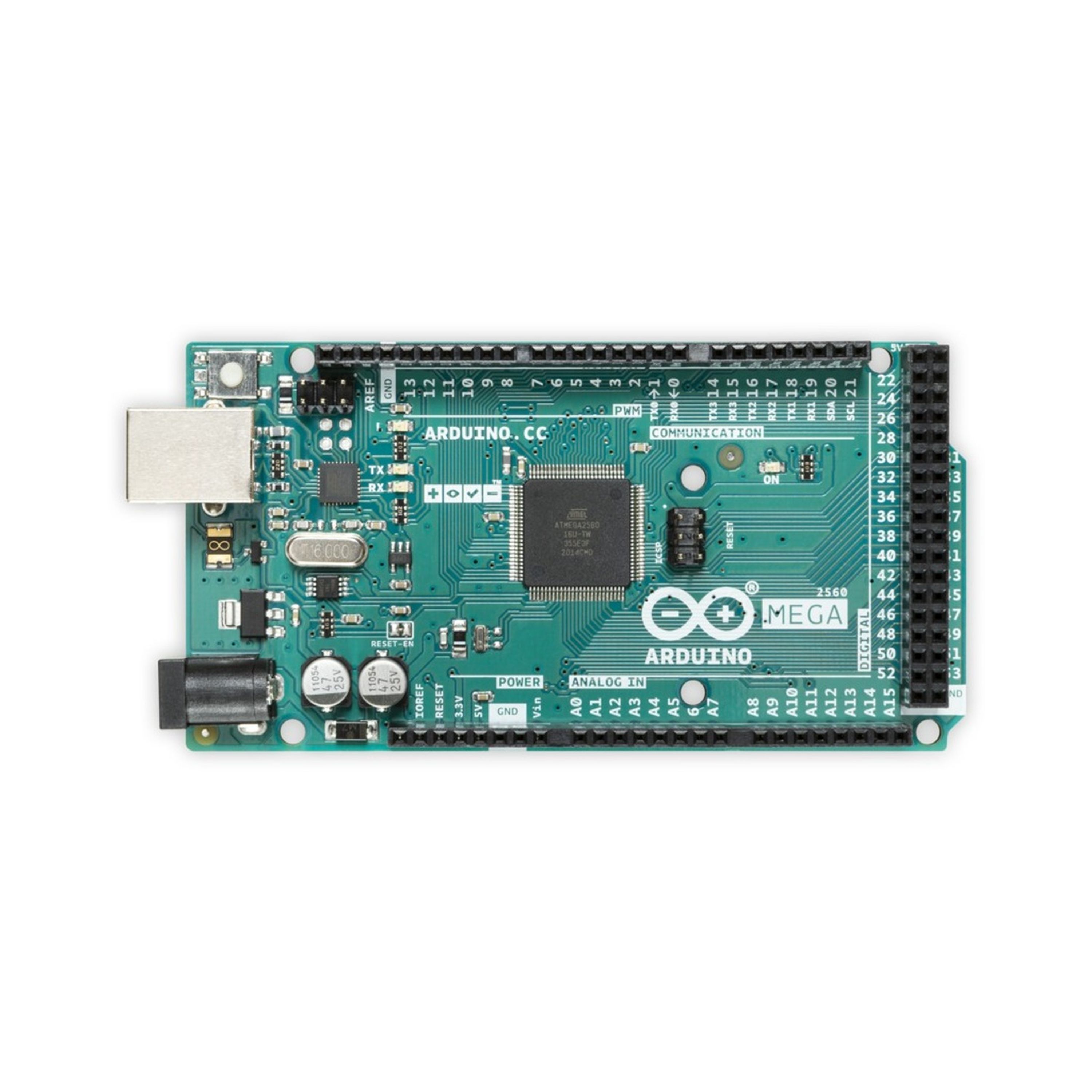

The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button.
It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
The Mega 2560 board is compatible with most shields designed for the Uno and the former boards Duemilanove or Diecimila.
Pinout details available here: https://docs.arduino.cc/resources/pinouts/A000067-full-pinout.pdf
Specifications
- Microcontroller
- ATmega2560
- Program memory
- 256.0KB
- Length
- 101.52mm
- Width
- 53.3mm
- Weight
- 37.0g
- Packaged Dimensions
- 11.8cm(Length) x 6.1cm(Width) x 2.6cm(Height)
