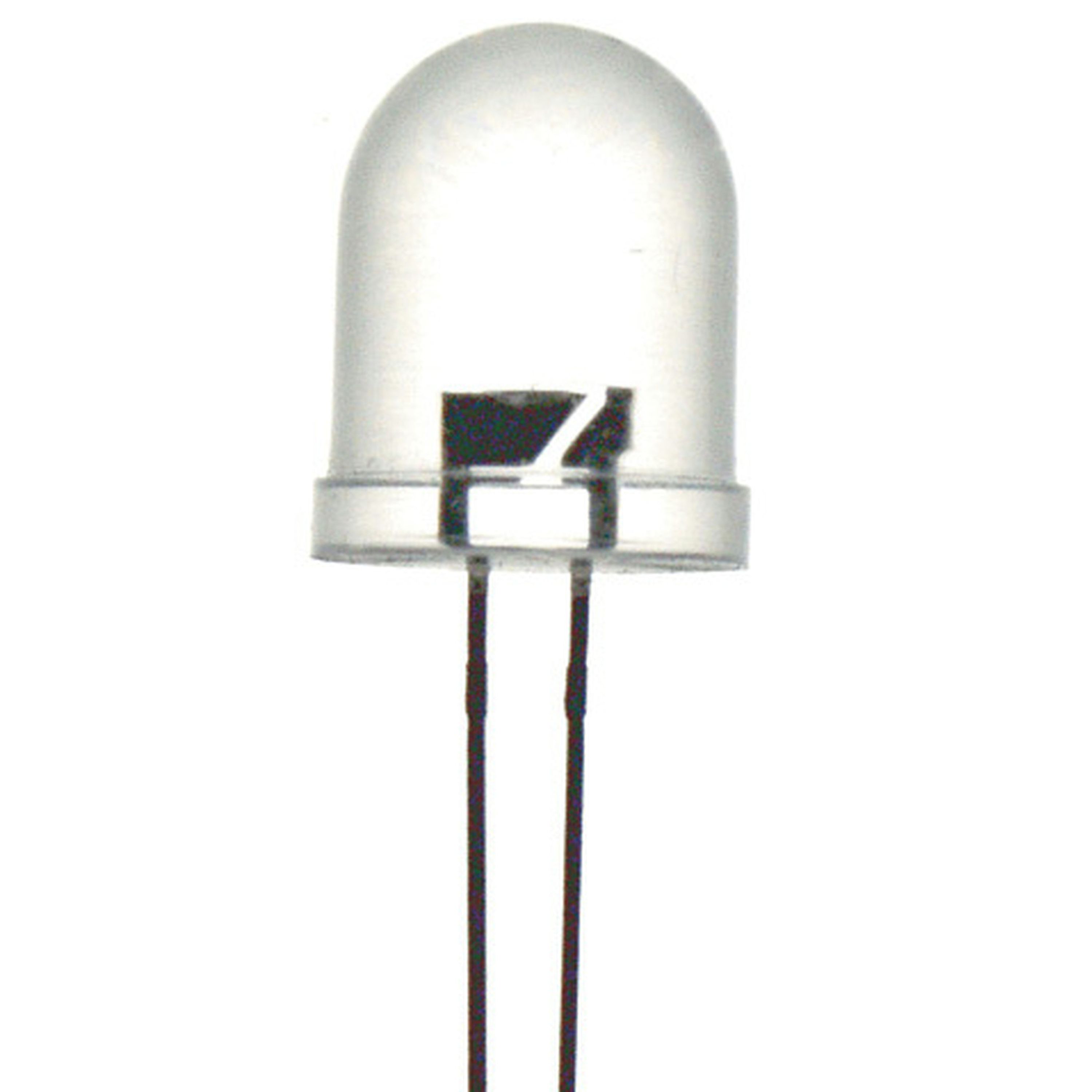

Blue 5mm LED 2500mcd Round Clear
- Cat No:
- ZD0180
In Stock
$1.40
Description
Specifications
Size (mm)5
ColourBlue
LensWaterclear
Viewing Angle (Degrees)15
Wavelength (nm)468
IF Typical (mA)20
VF Typical (V)3.2
IV Typical (mcd)2500
IF Max Continuous (mA)30
Preferred Series Resistor (ohms)
5VDC91
9VDC300
12VDC 430
Size (mm)5
ColourBlue
LensWaterclear
Viewing Angle (Degrees)15
Wavelength (nm)468
IF Typical (mA)20
VF Typical (V)3.2
IV Typical (mcd)2500
IF Max Continuous (mA)30
Preferred Series Resistor (ohms)
5VDC91
9VDC300
12VDC 430
Specifications
- LED Type
- 5mm Standard LED
- Illumination Type
- Single Colour
- Light Colour
- Blue
- Light Wavelength
- 468nm
- Lens Type
- waterclear
- Viewing Angle
- 15°
- Intensity
- 2500mcd
- V<sub>f (max)</sub> - Maximum Forward Voltage
- 3.2V
- I<sub>f (typ)</sub> - Typical Forward Current
- 20mA
- I<sub>f (max)</sub> - Maximum Forward Current
- 30mA
- Resistor for 5VDC
- 91Ω
- Resistor for 9VDC
- 300Ω
- Resistor for 12VDC
- 430Ω
- Packaged Dimensions
- 4 x 0.6 x 0.6 cm
