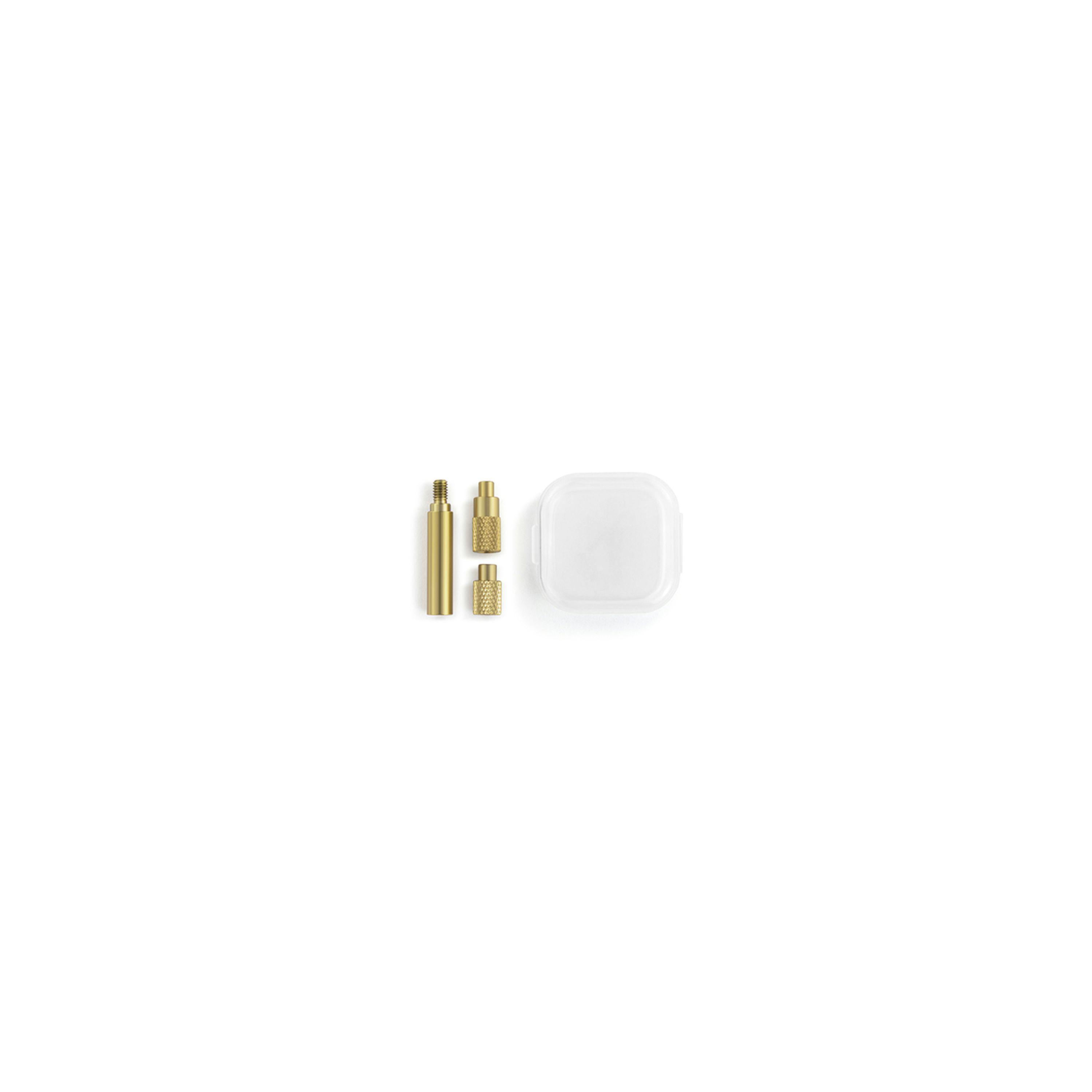

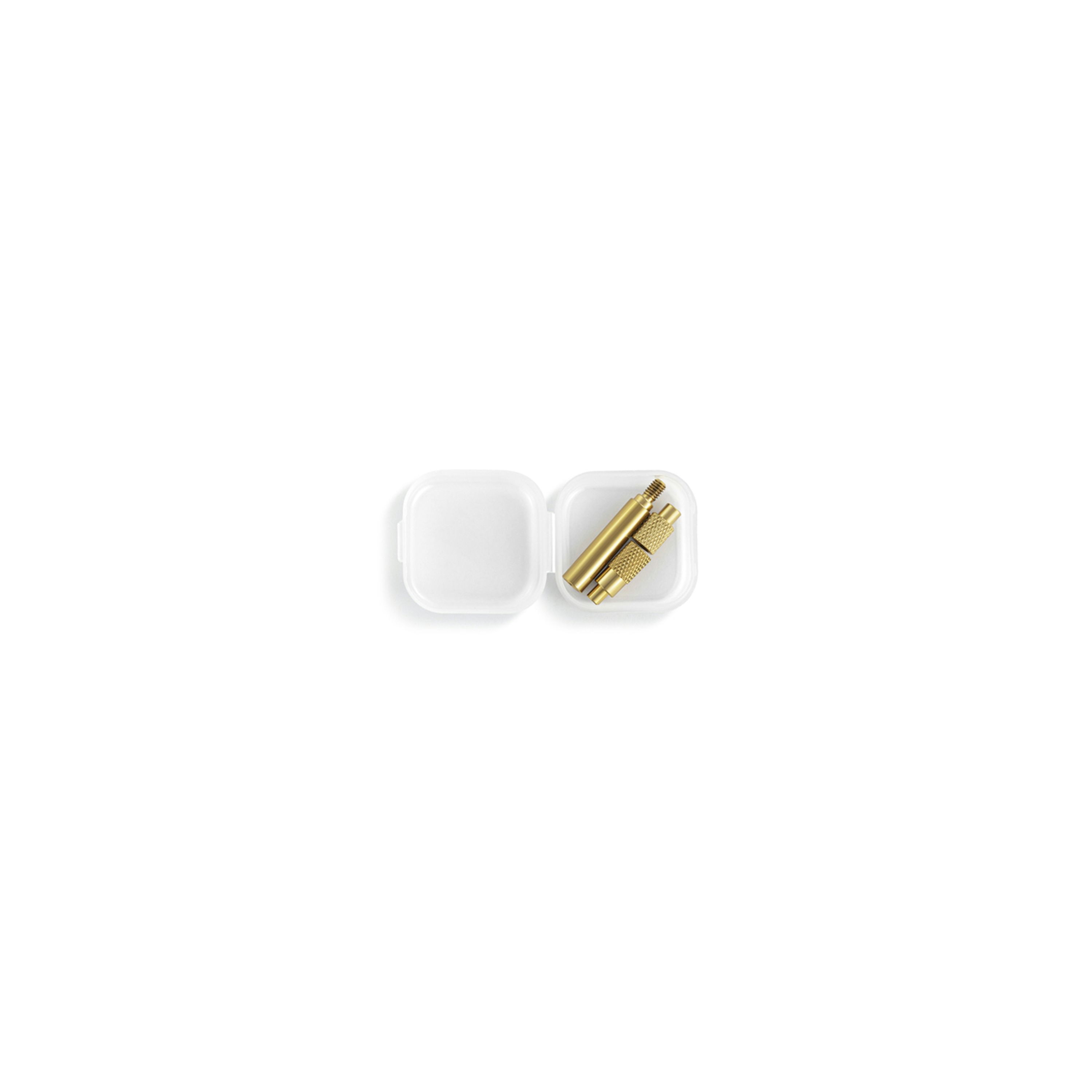

Bushing Heat Press Insert Tip suits M5 and M6 sizes

These M5 & M6 heat press insert tips are a fantastic option for 3D printing with thermoplastics.

When the tip is heated and placed in the threaded brass inserts, the surrounding plastic softens and forms around it, creating a strong, secure bond.

This keeps the insert firmly in place and strengthens the surrounding material, making the threaded connection more durable and resistant to pull-out compared to other insert types.

Shaft outside diameter: 6.5mm
Shaft inside hole diameter: 4.75mm
Shaft inside hole depth: 25mm
Shaft length to screw base: 28mm

M5 tip length: 17.5mm
M6 tip length: 15.5mm

Assembled length w/M5 tip: 44.5mm
Assembled length w/M6 tip: 40.5mm
