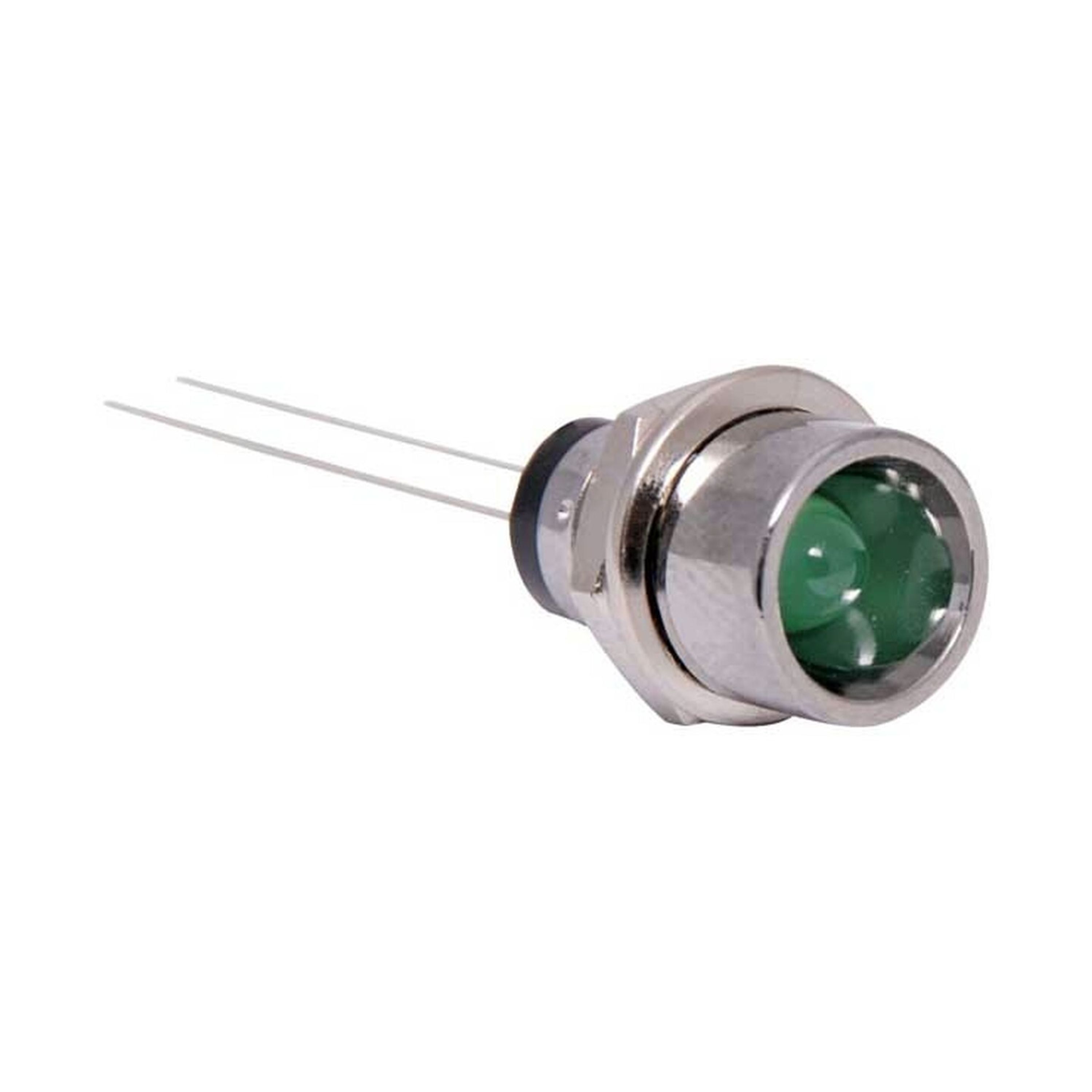

Chrome Bezel with 5mm Green LED
- Cat No:
- SL2612
Sold as:1 Each
In Stock$3.30
Description
Chrome casing low voltage panel mount LED.
Features:
- Chrome Housing
- 8mm Panel hole
Features:
- Chrome Housing
- 8mm Panel hole
Specifications
- LED Type
- 5mm Standard LED
- Illumination Type
- Single Colour
- Light Colour
- Green
- Lens Type
- Diffused
- V<sub>f (typ)</sub> - Typical Forward Voltage
- 2.0V
- I<sub>f (typ)</sub> - Typical Forward Current
- 15.0mA
- I<sub>f (max)</sub> - Maximum Forward Current
- 30.0mA
- P<sub>(max)</sub> - Maximum Operating Power
- 0.06W
- active mount type
- Panel
- active connector type
- Solder Legs
- active case colour
- Chrome
- Depth
- 18.0mm
- Diameter
- 11.0mm
- Packaged Dimensions
- 3.0cm(Length) x 1.1cm(Width) x 1.1cm(Height)
