Digital Weather Station with Monochrome Display

Cat No:
XC0432
In Stock

$299.00

Description

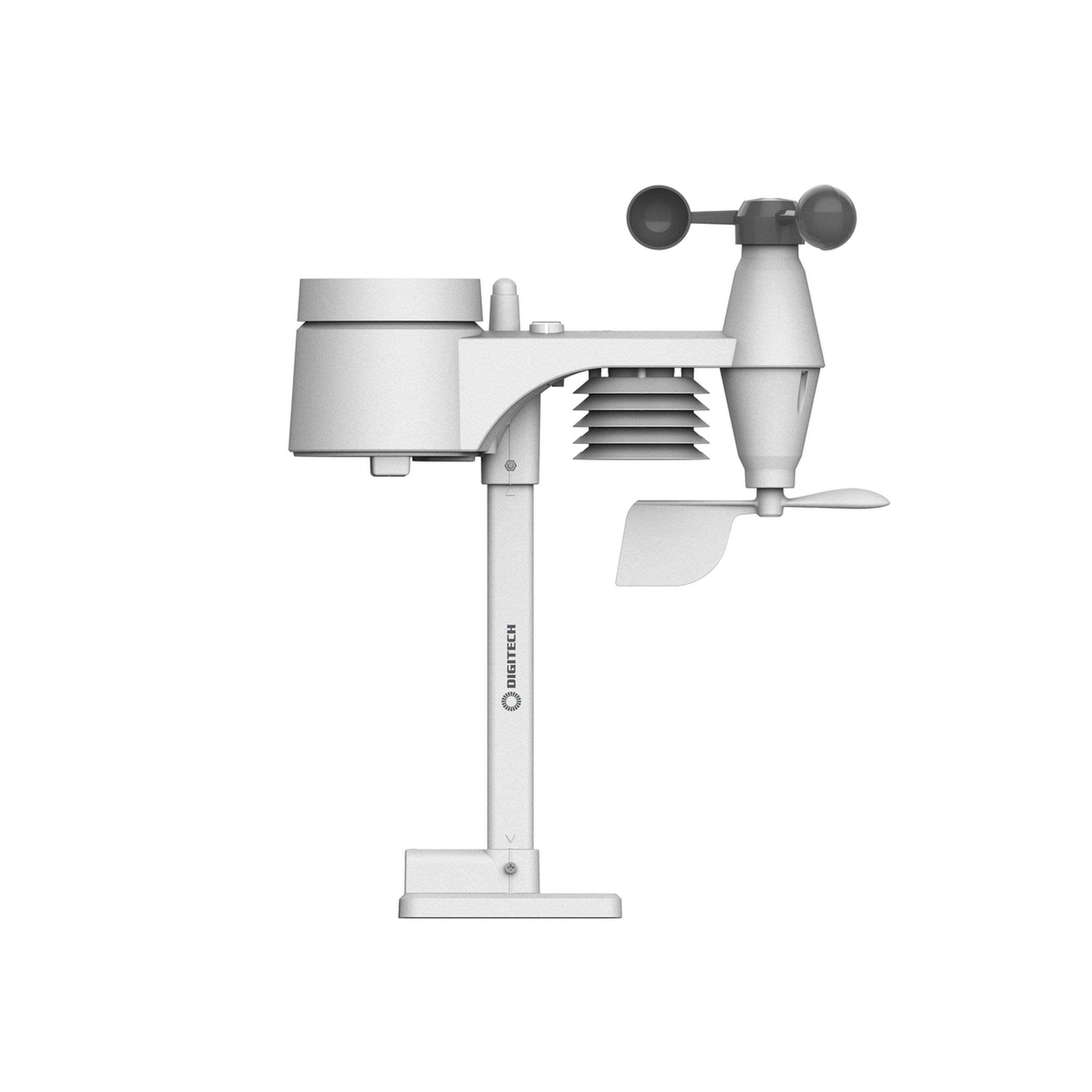

The wireless 5-in-1 sensor contains a self-emptying rain collector for measuring rainfall, anemometer, wind vane, temperature and humidity sensors. It is fully assembled and calibrated for easy installation. It sends data by a low power radio frequency signal (917MHz band) to the main display unit up to 150m away (line of sight).

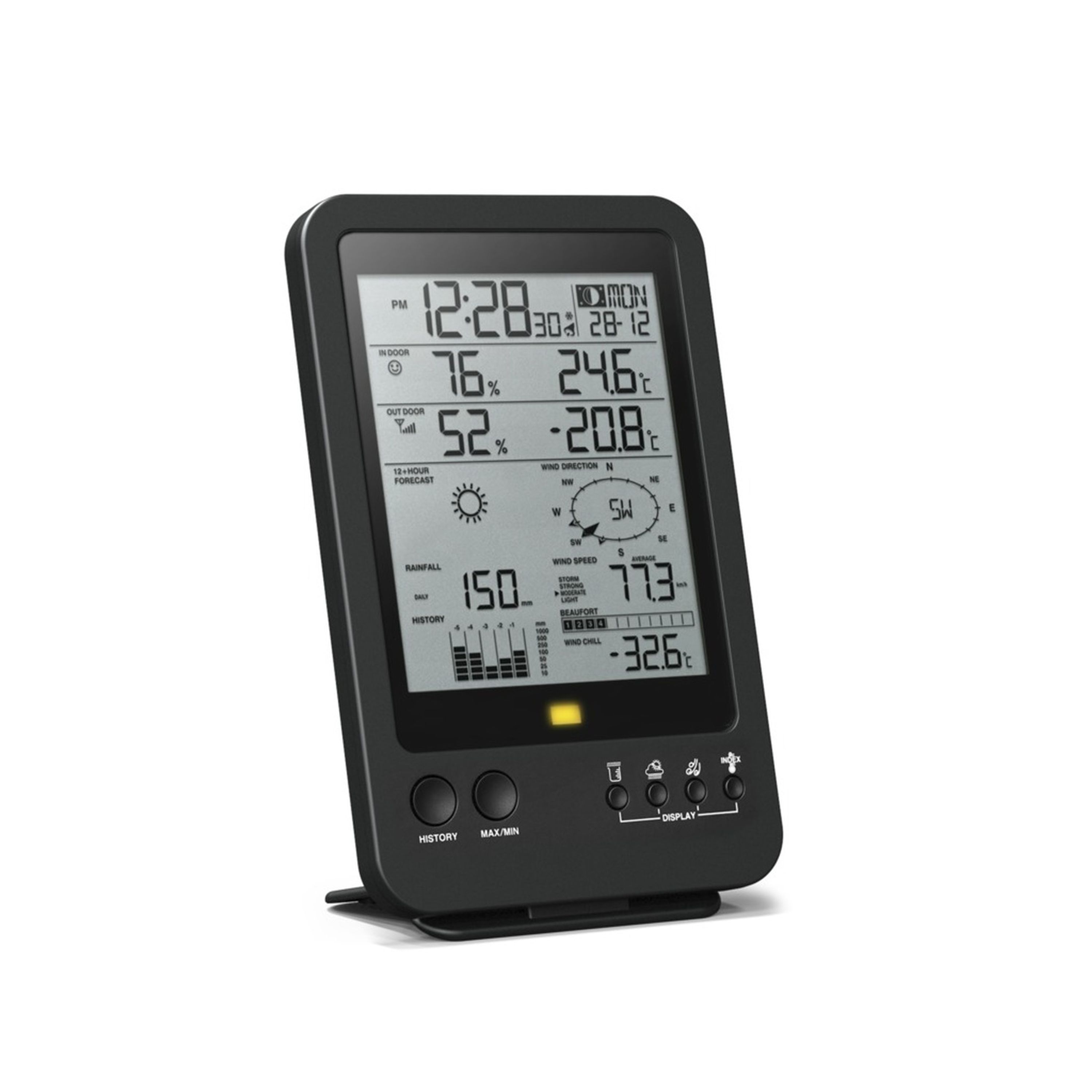

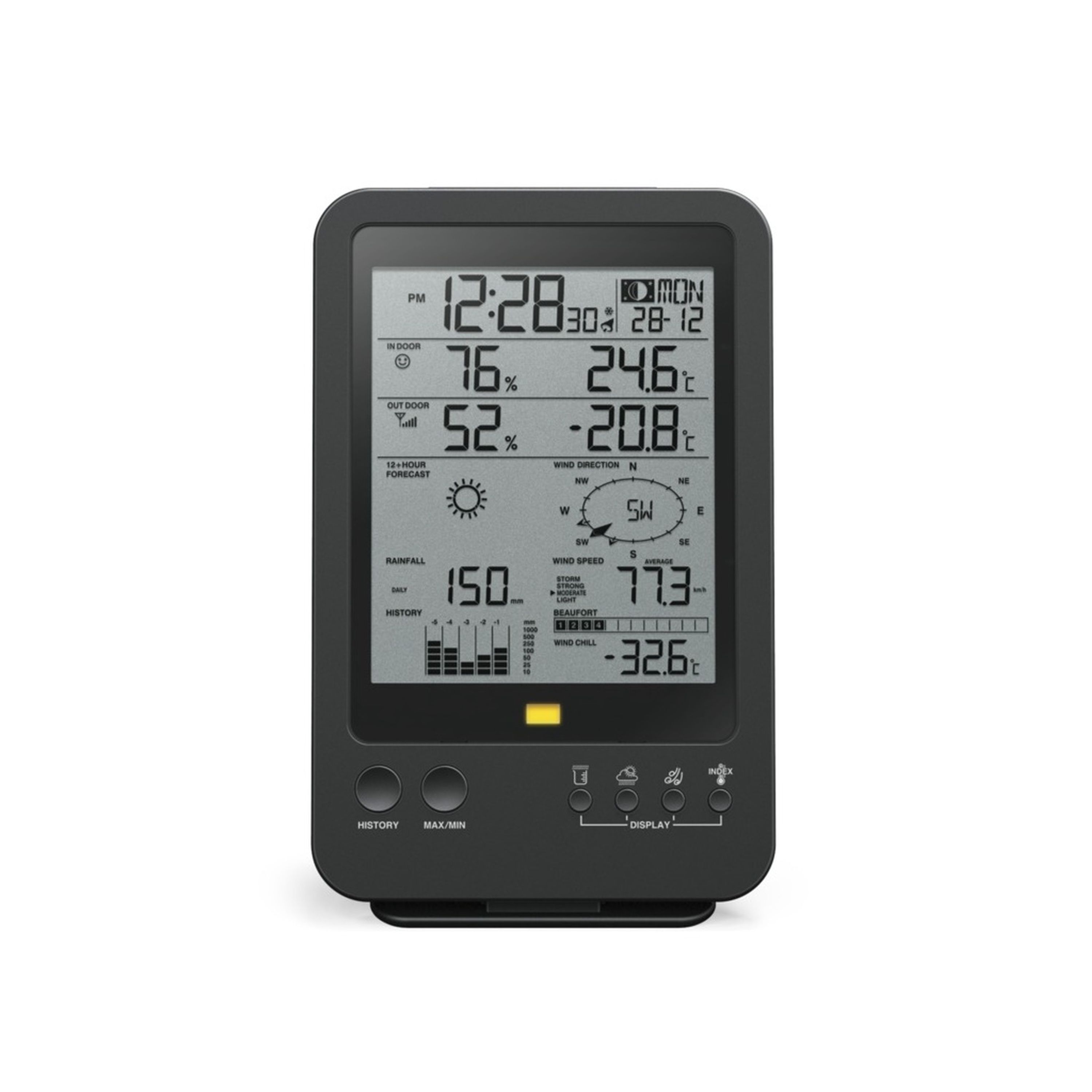

The main display shows all the weather data received from the 5-in-1 sensor outside. It remembers the data for a time range for you to monitor and analyse the weather status for the past 24 hours. It has advanced features such as the HI/LO Alert alarm which will alert the user when the set high or low weather criteria are met. The barometric pressure records are computed to give users forthcoming weather forecast and storm warning. Day and date stamps are also provided to the corresponding maximum and minimum records for each weather detail.

The system also analyses the rainfall rate, and shows daily, weekly and monthly records. Wind-speed is expressed in Beaufort Scale, and readings such as wind-chill, heat Index, dew point, and comfort level are also provided.

Features:
• Indoor & Outdoor Temperature (°C or °F)
• Min/Max Records
• Indoor & Outdoor Hygrometer
• Wind Speed  (m/s, km/h, mph, or knots)
• Wind Direction
• Wind Chill
• Dew Point
• Heat index
• Rain Gauge  (in or mm)
• Rain Rate
• Barometric Pressure (hPa, inHg, or mmHg)
• Moon Phase
• Time/Date Display
• High/Low Alarms
• 12 Hour Forecast
• Rainfall & Barometer Histogram

Specifications

Weather Station Style
Weather Station
Sensor Type
Remote wireless sensor
Sensor Battery Size
AA
Sensor Battery Quantity
3pc
Sensor Battery Type
Alkaline
Battery used for
Transmitter
Size / Shape
AA
Battery quantity
3pc
Display Type
LCD
Display Height
165mm
Display Width
90mm
Display Backlight
LED Backlit
Display colour
Monochrome
Outdoor / Exterior Scale
-40°C - 65°C
Dimensions details
Remote Sensor
Width
343mm
Height
393mm
Depth
136mm
Relative humidity range
20% - 90%
RH Humidity measure accuracy +/-
5%
Wind Speed Range
180km/h - 180km/h
Sensor Type
Rocker Collector (Continuous Flow)
Maximum Rainfall Reading
9mm
Pressure Range
54kPa - 110kPa
Transmission frequency
917MHz
Transmission power
917W
Transmission range
150m
Width
120mm
Height
190mm
Depth
22mm
Weight
370g
Dimension details
Active Display Area
Width
90mm
Height
120mm
Packaged Dimensions
39.2 x 28.9 x 15.4 cm
