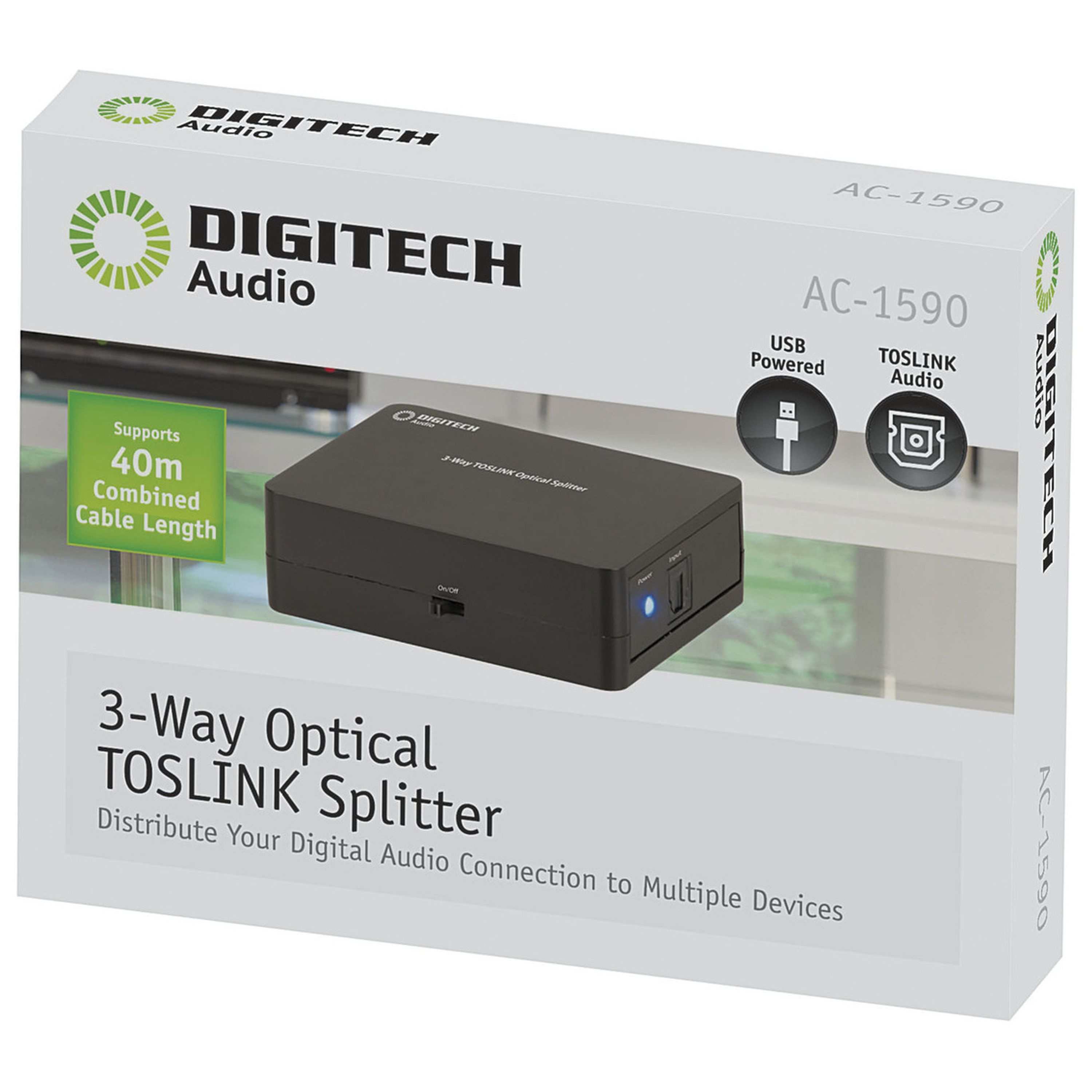

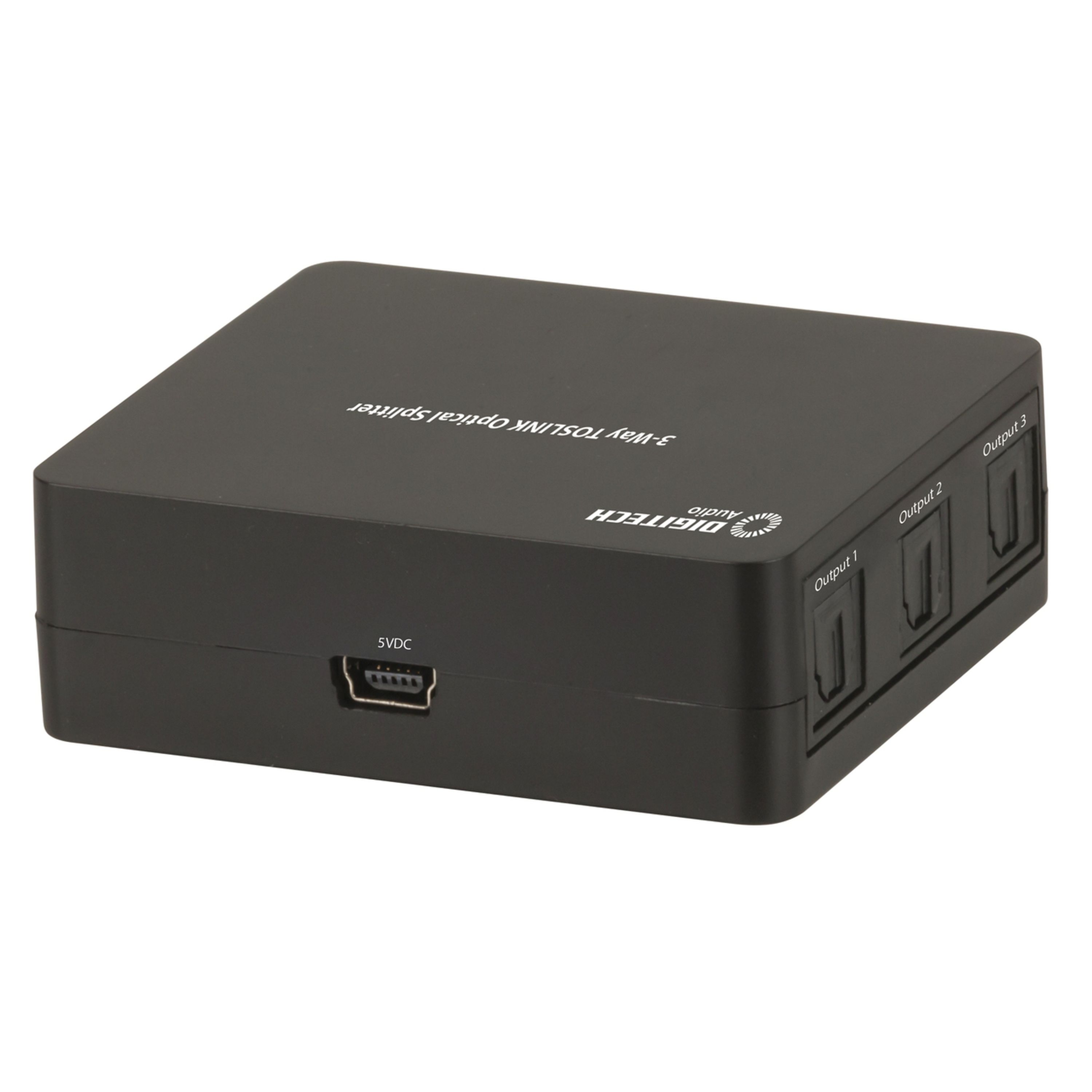

Digitech 3-Way Optical TOSLINK Splitter
- Cat No:
- AC1590
Sold as:1 Each
In Stock$39.90
Description

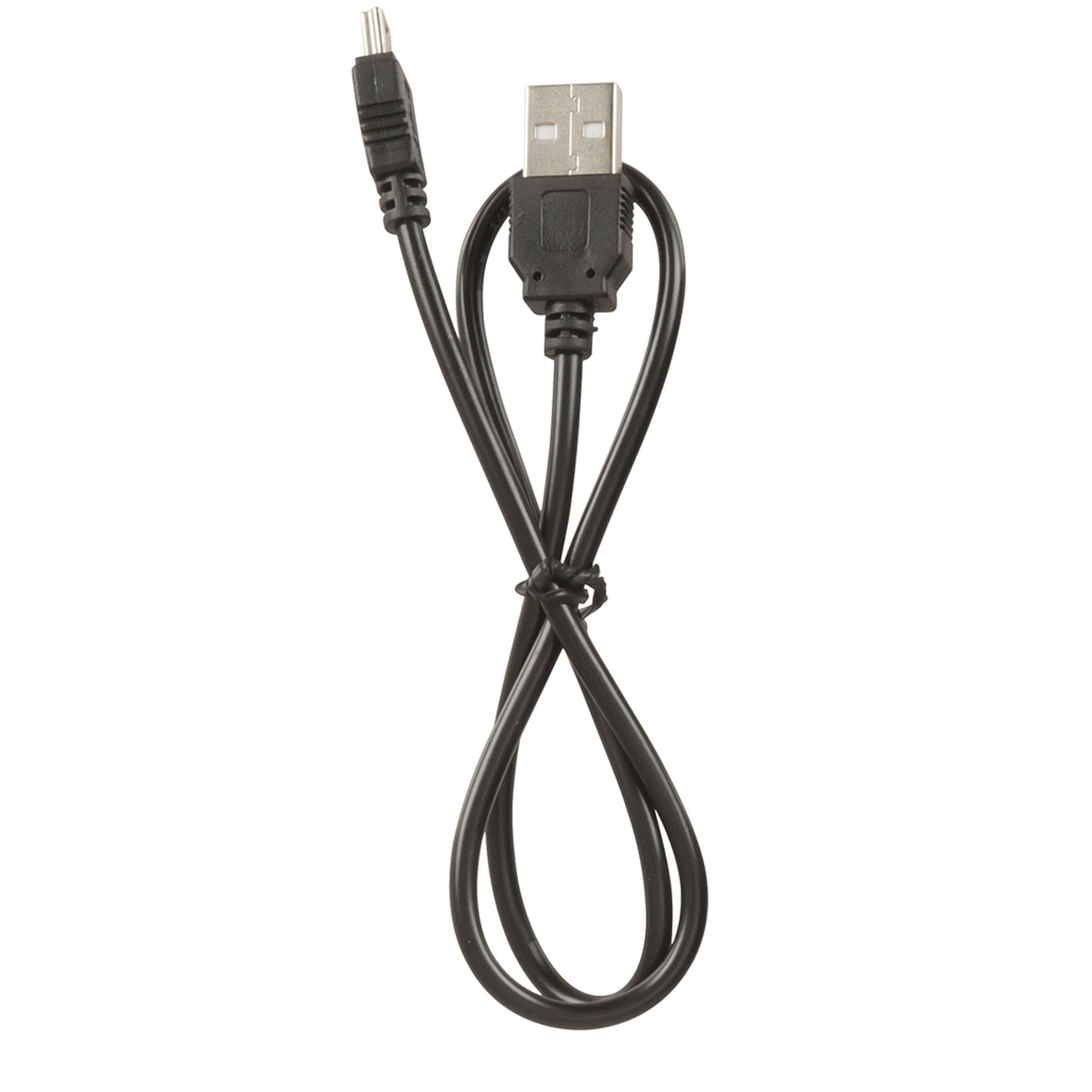

Allows a combined optical cable length of 40m with no audio quality loss. Audio format support for LPCM2.0, DTS and Dolby AC-3 with signal re-timing for perfectly synchronized audio. USB powered and features voltage overload protection. Includes USB charging cable.
Specifications:
- Inputs: 1 x TOSLINK (Optical)
- Outputs: 3 x TOSLINK (Optical)
- Frequency: 96KHz
- Baud Rate: 16Mbps
- Audio: LPCM 2.0, DTS, Dolby AC-3
- Supported Cable Length: 40m (Total)
- Power: 5VDC, 500mA (USB Mini B)
- Power Consumption: 200mA (Maximum)
- Dimensions: 60(W) x 54(D) x 20(H)mm
Specifications
- Switcher/Converter Type
- Distribution Amplifier Splitter
- Input type
- Digital Audio
- Input Connection
- TOSLINK
- Number of inputs
- 1.0pc
- Output Type
- Digital Audio
- Output Connection
- TOSLINK
- Number of Outputs
- 3.0pc
- Power Requirement
- External Power Required
- Maximum Total Cable Length (all in and out)
- 40.0m
- PSU Powers
- Main Product
- DC Plugpack Voltage
- 5.0V
- DC Current Draw
- 500.0mA
- Digital Audio Format
- LPCM 2.0,DTS,Dolby AC-3
- Maximum Signal Frequency
- 96.0kHz
- Baud Rate
- 16.0Mb/s
- Width
- 62.0mm
- Height
- 21.0mm
- Depth
- 58.0mm
- Packaged Dimensions
- 13.5cm(Length) x 2.5cm(Width) x 10.5cm(Height)
