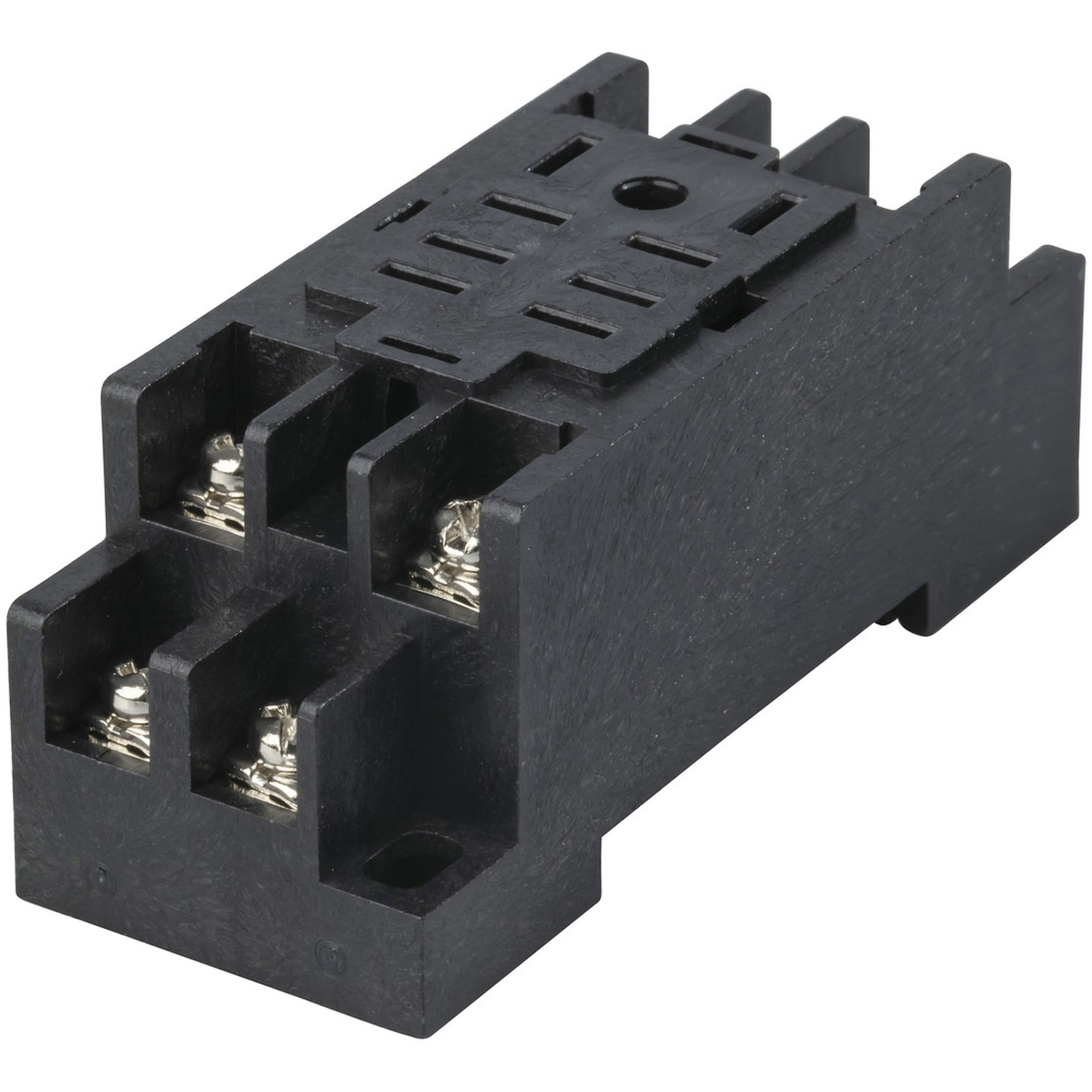

DPDT DIN Rail Mount Relay Cradle

Cat No:
SY4064
Sold as:1 Each
Carton size:250
In Stock

$9.90

Description

DIN rail mounting base for DPDT cradle mount relays. Also has 4mm holes so can be screw mounted to a chassis.
Compatible relays:
• SY-4007 24VDC PCB/Cradle Mount Relay
• SY-4008 12VDC PCB/Cradle Mount Relay
• SY-4065 12VDC Cradle Mount Relay

Specifications

Device Type
Cradle Socket for Relays
Contact format
DPDT
Item connection
Screw Terminals
Length
72mm
Width
30mm
Depth
30mm
Packaged Dimensions
11 x 4.7 x 3.8 cm
