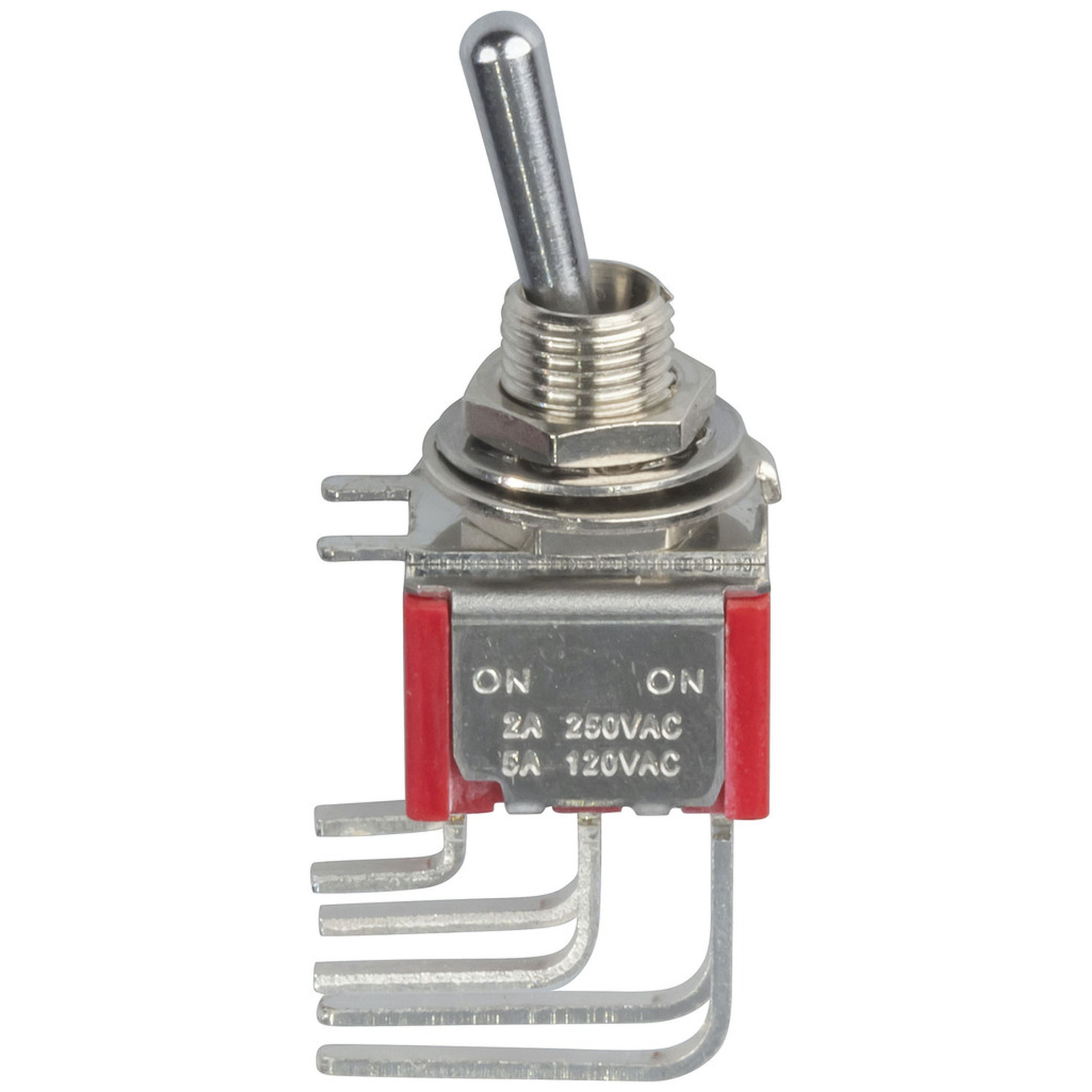

DPDT Miniature Toggle Switch - Vertical R/A

Cat No:
ST0365
Sold as:1 Each
Carton size:1000
In Stock

$4.90

Description

FEATURES:

VERTICAL RIGHT ANGLE PCB MOUNT
Brackets indicate switch position Threaded Bush (on - none - on)
OPERATING TEMPERATURE:-30 degrees - +85 degrees Celsius
CONTACT RATING (with resistive load) Subminiature: 1 Amp @ 250VAC Miniature: 2 Amps @ 250VAC
CONTACT RATING (with resistive load) Subminiature: 3 Amps @ 28VDC Miniature: 5 Amps @ 28VDC
SWITCH MATERIALS CASE:Diallyl Phthalate (DAP) (UL94V-0)
TOGGLE HANDLE:Brass, chrome plated
BUSHING:Brass, nickel-plated
HOUSING:Stainless Steel
TERMINALS:Switch support components: Brass, electro-tin plated (for solderability)
CONTACTS:Fixed and moving, Silver-plated over copper alloy (standard);Fixed and moving, gold plated over nickel-plated alloy.

Specifications

Switch Type
Toggle
Poles / Contacts
2.0 pole
Throws / Positions
1.0 pos
Switch Function
Momentary
Contact Resistance
20Ω
Insulation Resistance
1000Ω
Dielectric Strength
1000V
Mechanism Material
Metal/Plastic
DC Voltage Rating
28.0V
DC Current Rating
3.0A
Cycle Life
30000
Actuator Length
6.86mm
Actuator Width
4.83mm
Packaged Dimensions
1.5 x 1.2 x 4 cm
Switch Type
Toggle
Poles / Contacts
2 pole
Throws / Positions
1pos
Switch Connection
PCB Pins
Cycle Life
30000 cycles
Contact Resistance
20Ω
Insulation Resistance
1000Ω
Dielectric Strength
1000V
Actuator Length
6.86mm
Actuator Width
4.83mm
AC Voltage rating
250V
AC current rating
1A
DC Voltage
28V
DC current rating
3A
