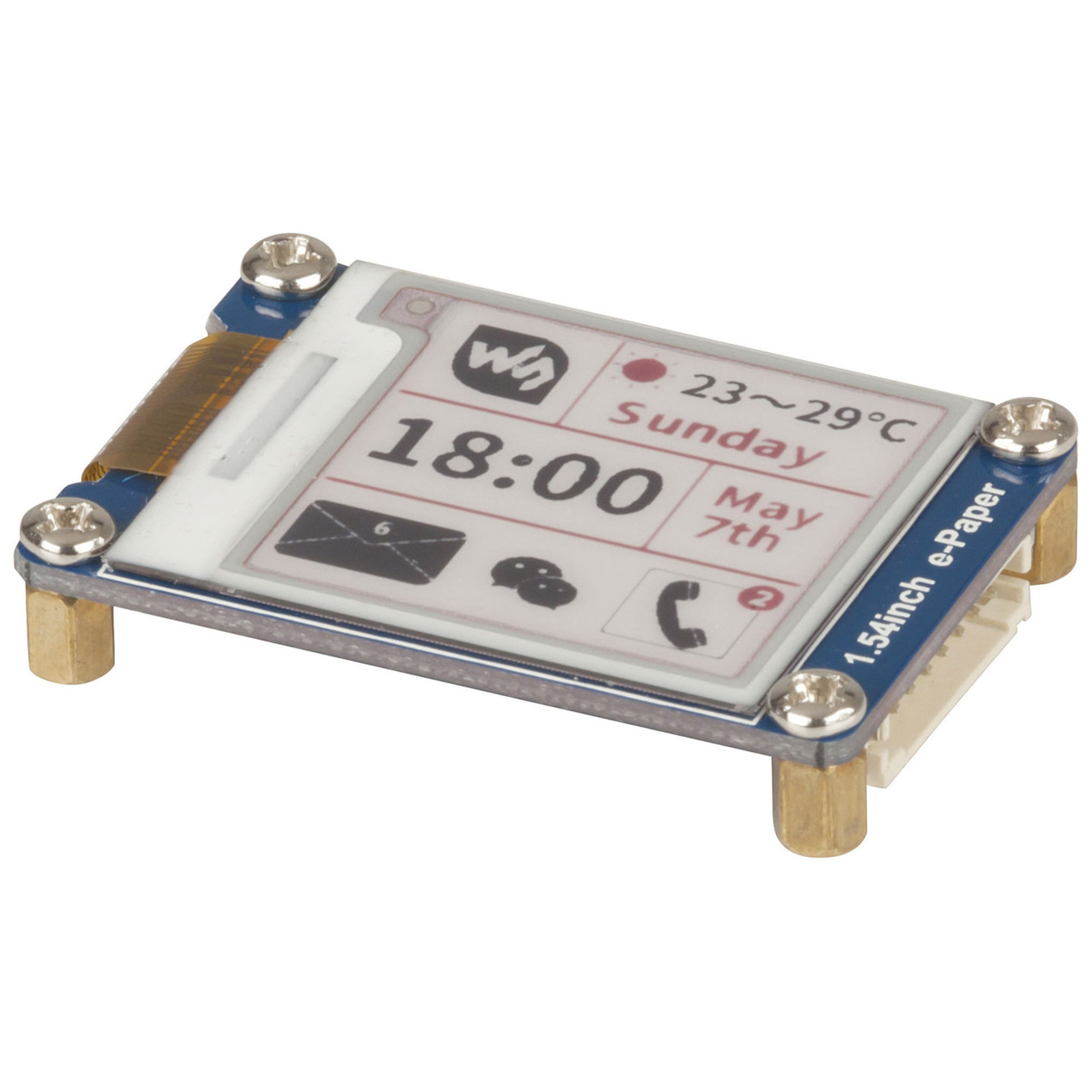

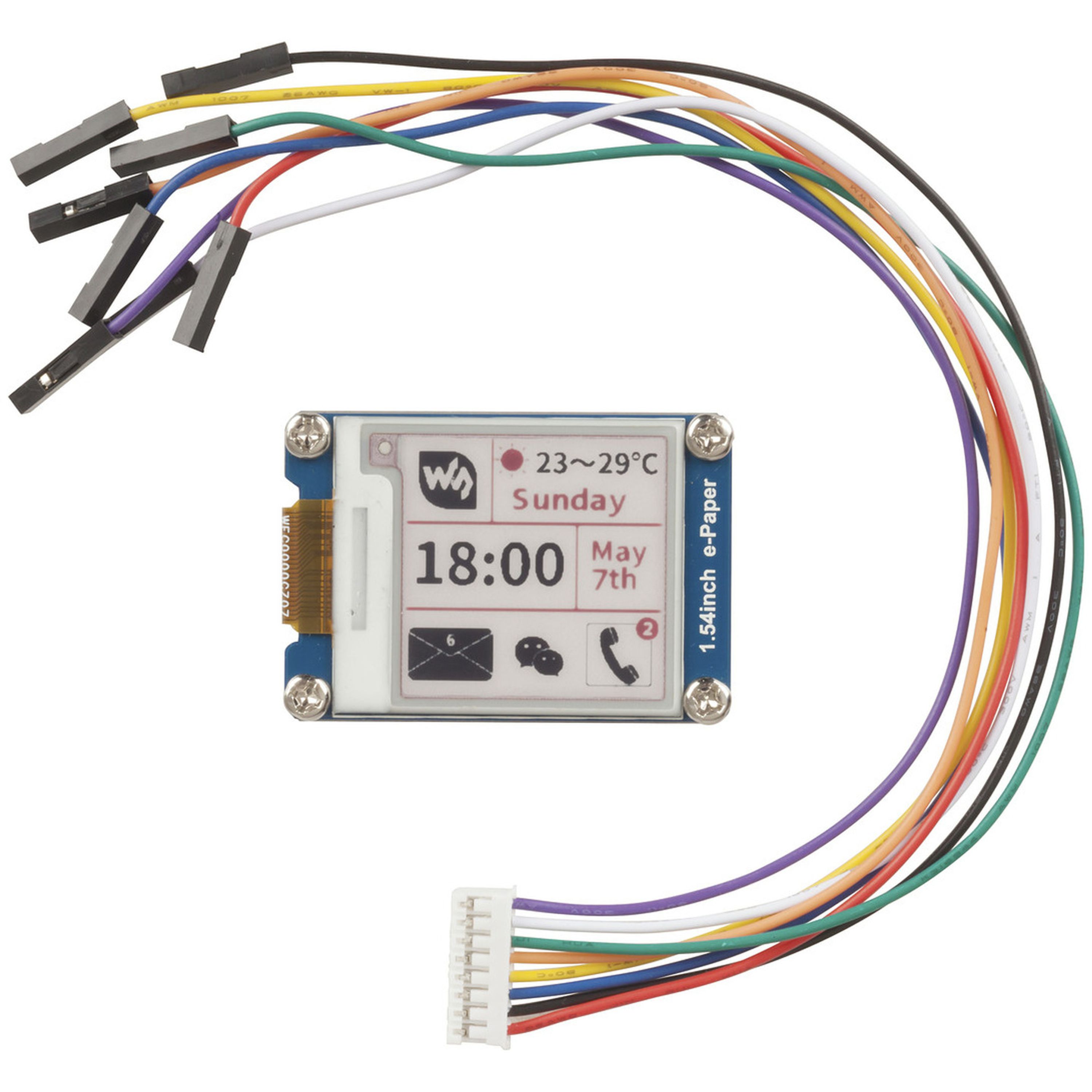

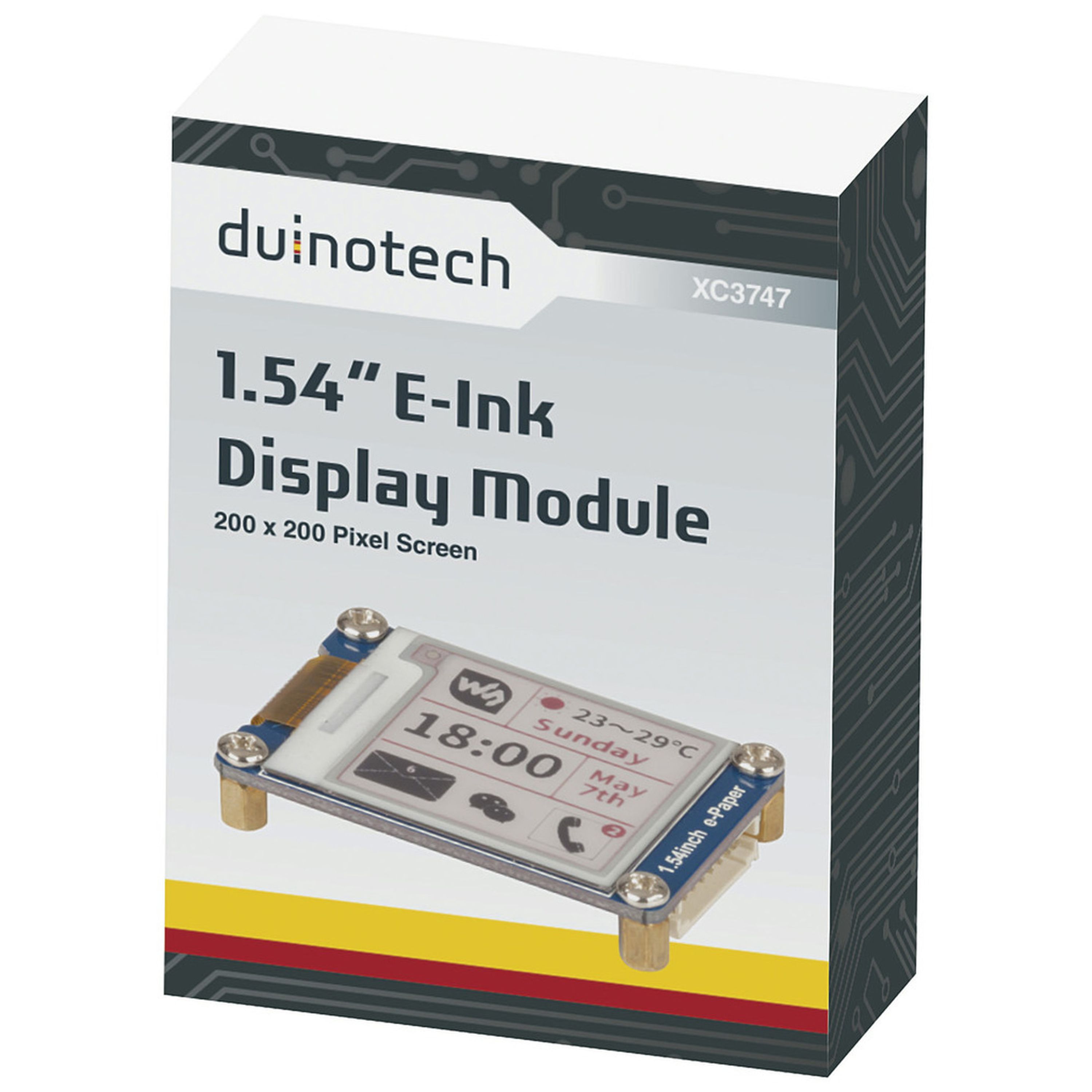

Duinotech Arduino Compatible 1.54 Inch Monochrome E-Ink Display

Cat No:
XC3747
In Stock

$62.90

Description

This screen uses very little power to refresh, and retains the last displayed content for a very long time when power is removed. The screen also reflects ambient light, which avoids the need for a backlight, and makes it easy to read under bright sunlight. It has a wide viewing angle over 170°.

Features:
  • Black, white and red display
  • 2 shades of grey
  • SPI interface
  • 8 second full refresh time
  • Low refresh power (26.4mW)
  • Extra low standby power (<0.017mW)

Specifications

Dimension details
Overall Dimensions
Length
48.0mm
Width
33.0mm
Height
9.0mm
Weight
14.0g
Dimensions details
Dot Pitch
Width
0.138mm
Height
0.138mm
Dimension details
Display Size
Length
27.6mm
Width
27.6mm
Packaged Dimensions
9.3cm(Length) x 4.3cm(Width) x 2.2cm(Height)
