Duinotech
Duinotech Arduino Compatible 8 x 16 LED Matrix Display
- Cat No:
- XC3746
In Stock
$24.90
Description

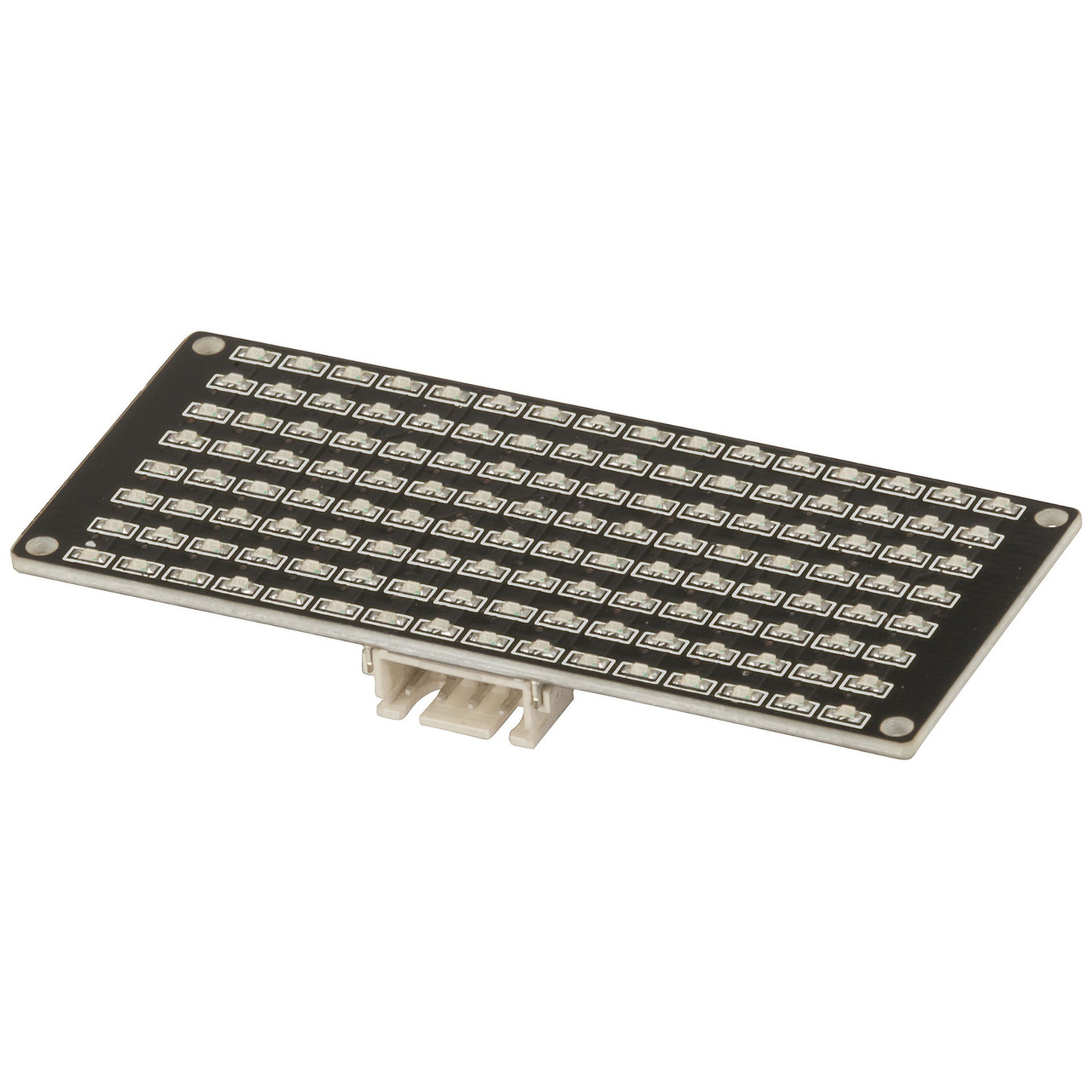

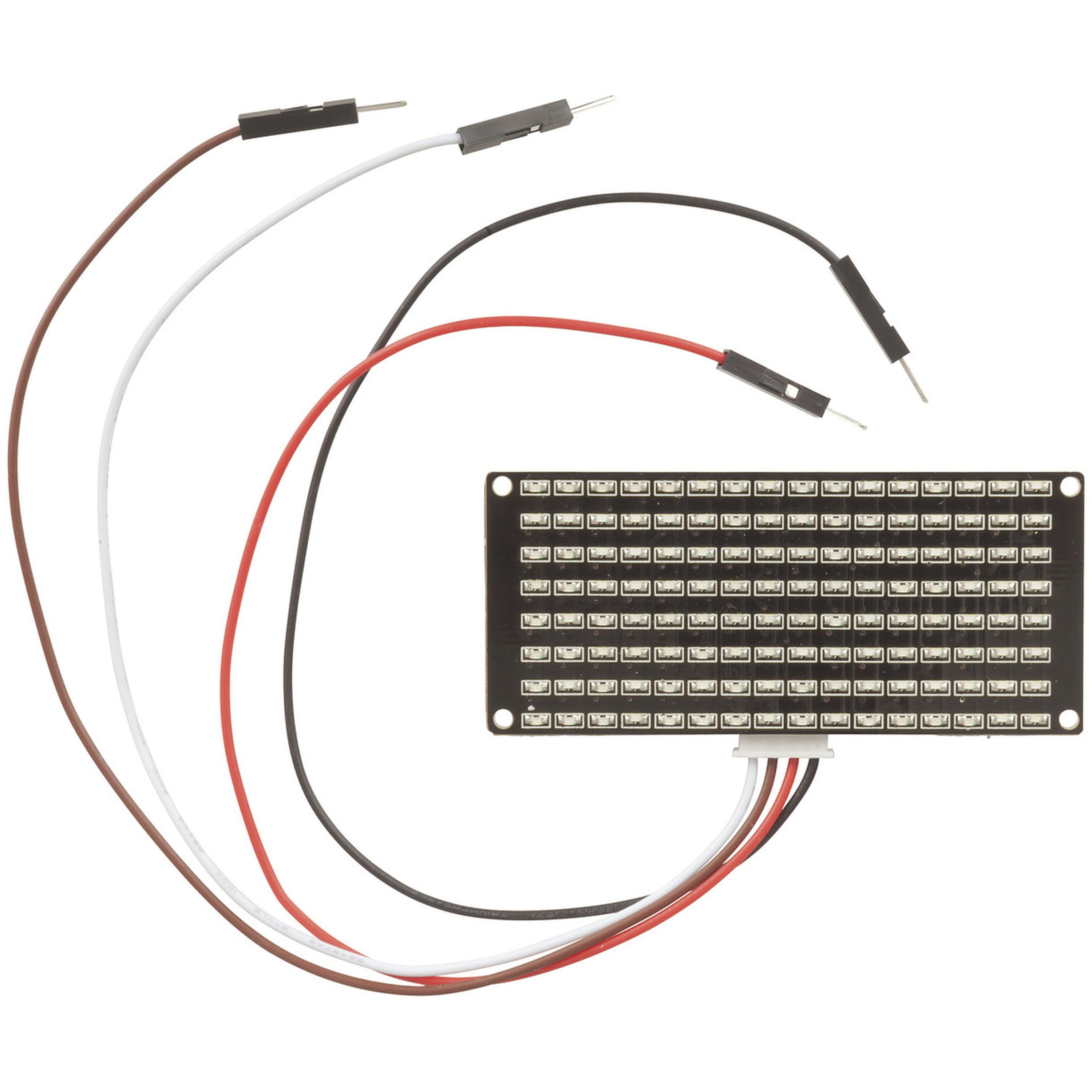

This display features 128 bright blue LEDs arranged in an 8 x 16 grid, brightness control, and communicates to your microcontroller via I2C. It can be powered from 3.3V or 5V, and connects to your controller board using the supplied 220mm long 4 pin cable.
Features:
- 128 LEDs
- AIP1640 chip
- 4 pin interface (GND, VCC, SDA, SCL)
- I2C communication protocol
- 450kHz oscillation frequency
- 400mW power consumption
Specifications
- Required Supply Voltage
- 3.3V,5.0V
- DC current rating
- 200.0mA
- Length
- 72.0mm
- Width
- 32.0mm
- Height
- 8.0mm
- Weight
- 12.2g
- Dimension details
- LED Pitch
- Width
- 4.0mm
- Packaged Dimensions
- 8.0cm(Length) x 8.0cm(Width) x 1.0cm(Height)
