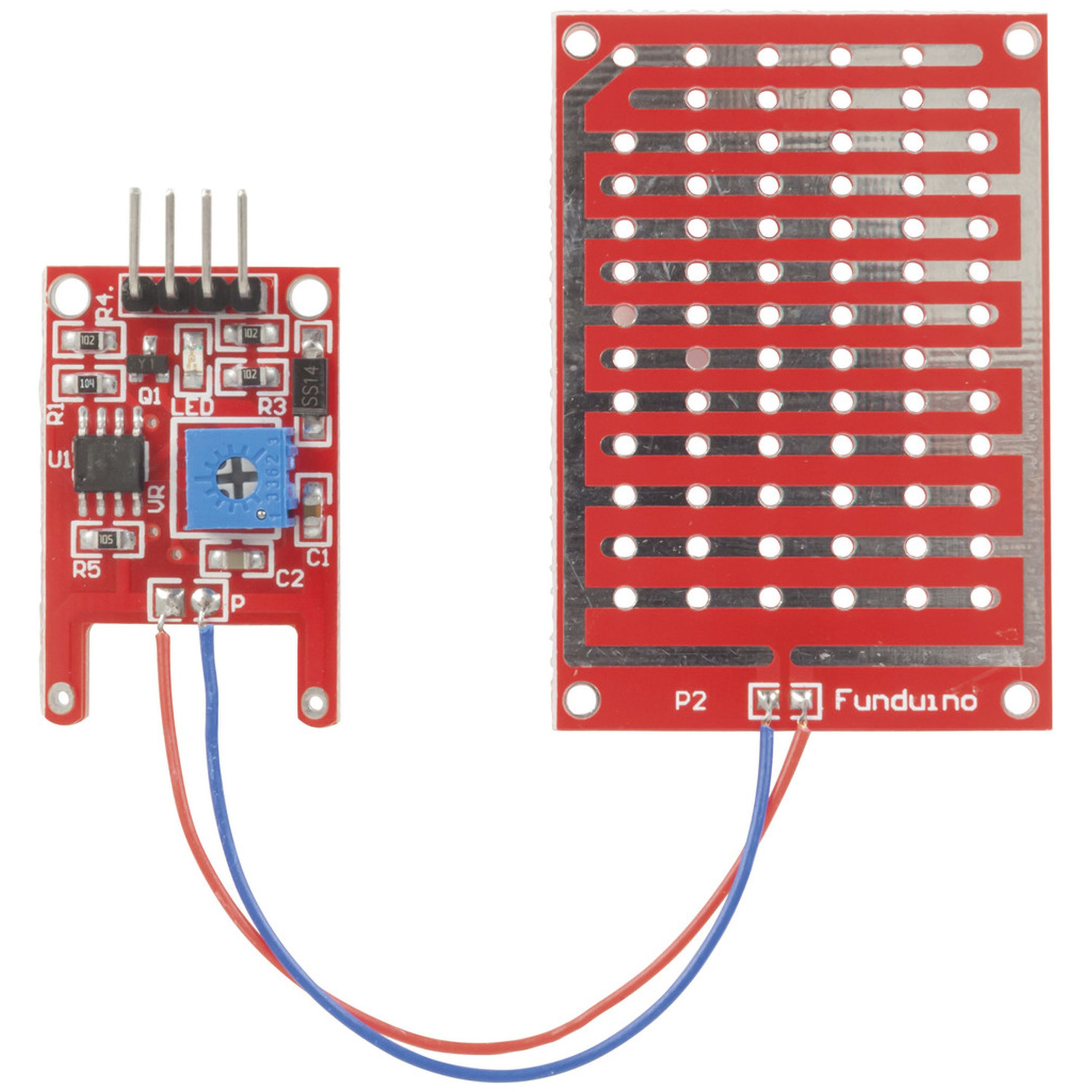

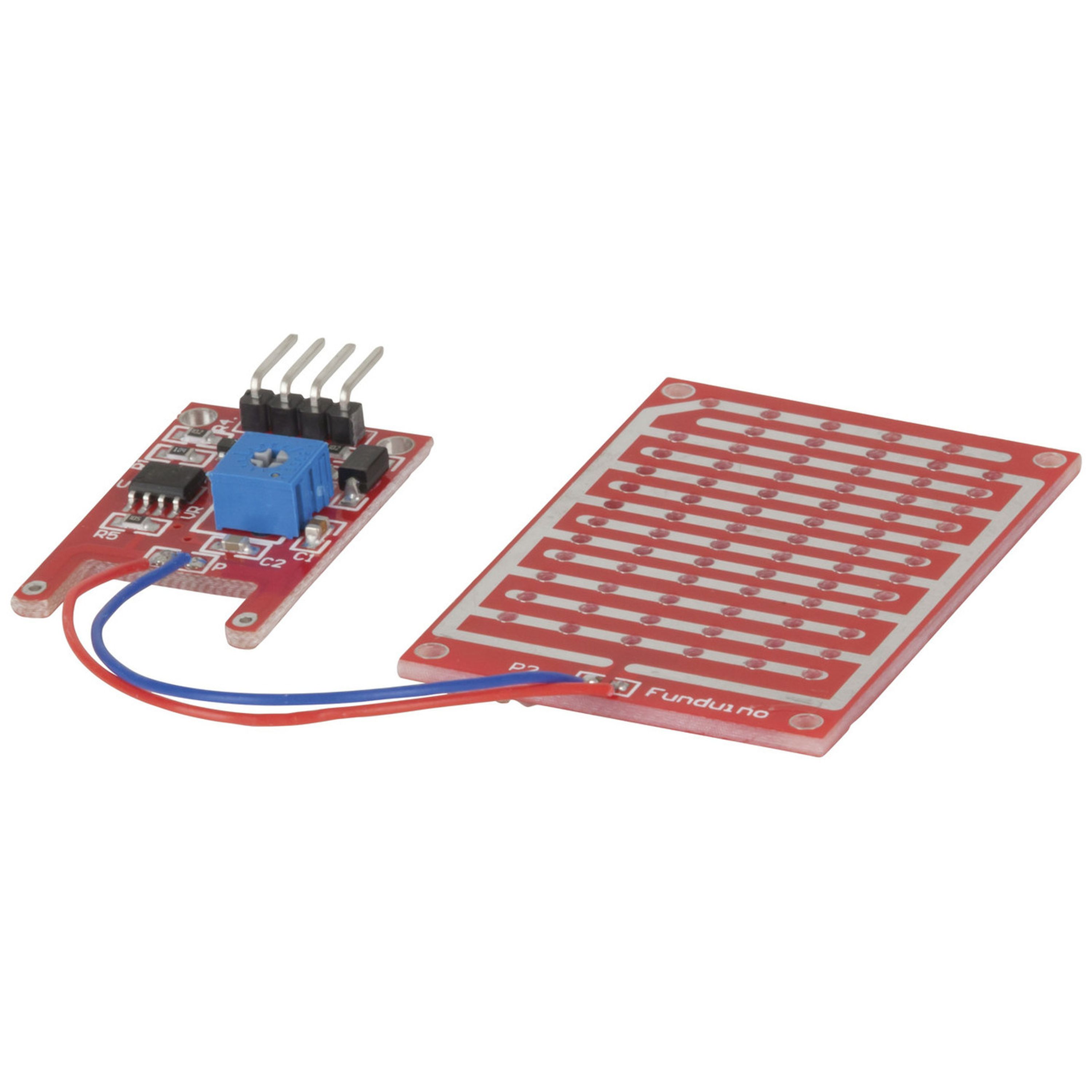

Duinotech Arduino Compatible Rain Sensor Module
- Cat No:
- XC4603
In Stock
$9.90
Description
The small blue potentiometer on the board can be used to adjust the rain level at which the digital output changes. A small relay or buzzer can also be added to one of the outputs for extra versatility in functional design.
Features:
- Adjustable sensitivity
- LED indicator
- TTL level output can drive 100mA, enough for a small relay or buzzer.
Specifications
- Required Supply Voltage
- 5.0V
- Length
- 50.0mm
- Width
- 35.0mm
- Height
- 1.0mm
- Dimension for
- Controller
- Length
- 47.0mm
- Width
- 26.0mm
- Height
- 6.0mm
- Packaged Dimensions
- 10.0cm(Length) x 4.2cm(Width) x 1.5cm(Height)
