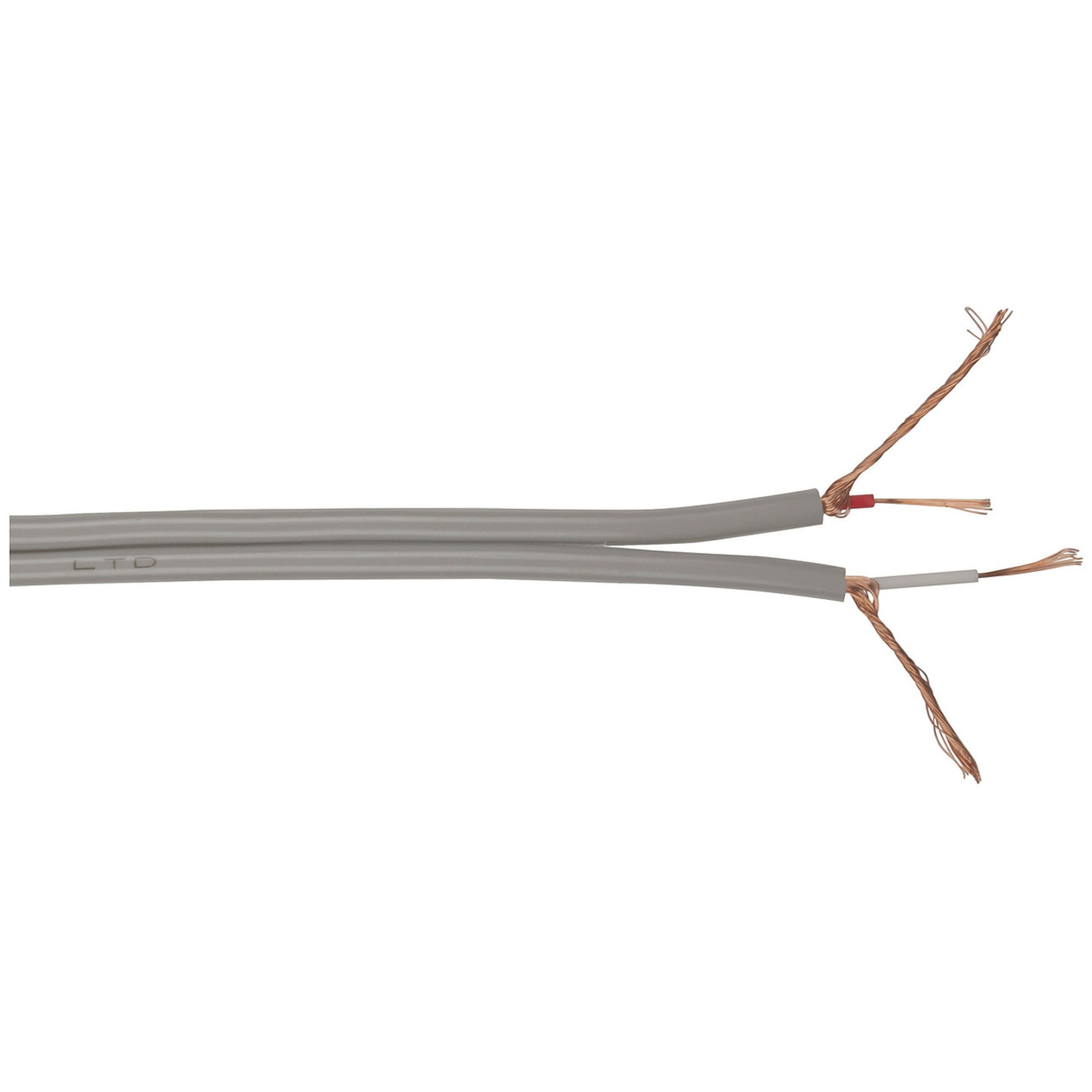

Fig.8 Twin Screened Audio Cable

Cat No:
WB1502
Sold as:Roll (100 Metre)
Carton size:400
In Stock

$1.20

Description

Light duty figure 8 audio signal cable. Includes two individually screened conductors for stereo audio signal or similar. Screens electrically separated and covered with grey PVC insulation.

Specifications

Retail Sales Unit
Metre
Roll Length
100m
AWG
28
Cross Sectional Area
0.08mm²
Conductor Overall Diameter
0.32mm
Individual Conductor Strand Diameter
0.12mm
Number of Conductor Strands
28pc
Resistance per Linear Metre
224.5mΩ
Colour
Light Grey
Wire Category
Fig.8 Screened
AWG
22
Conductor Overall Diameter
0.32mm
Number of Conductor Strand
20
Individual Conductor Strand Diameter
0.12mm
Resistance Per Linear Metre
0.0366Ω
Retail Sales Unit
Metre
Roll Length
100m
Cross Sectional Area
0.08mm²
Colour
Black
Cable length
100m
Packaged Dimensions
100 x 0.6 x 0.3 cm
