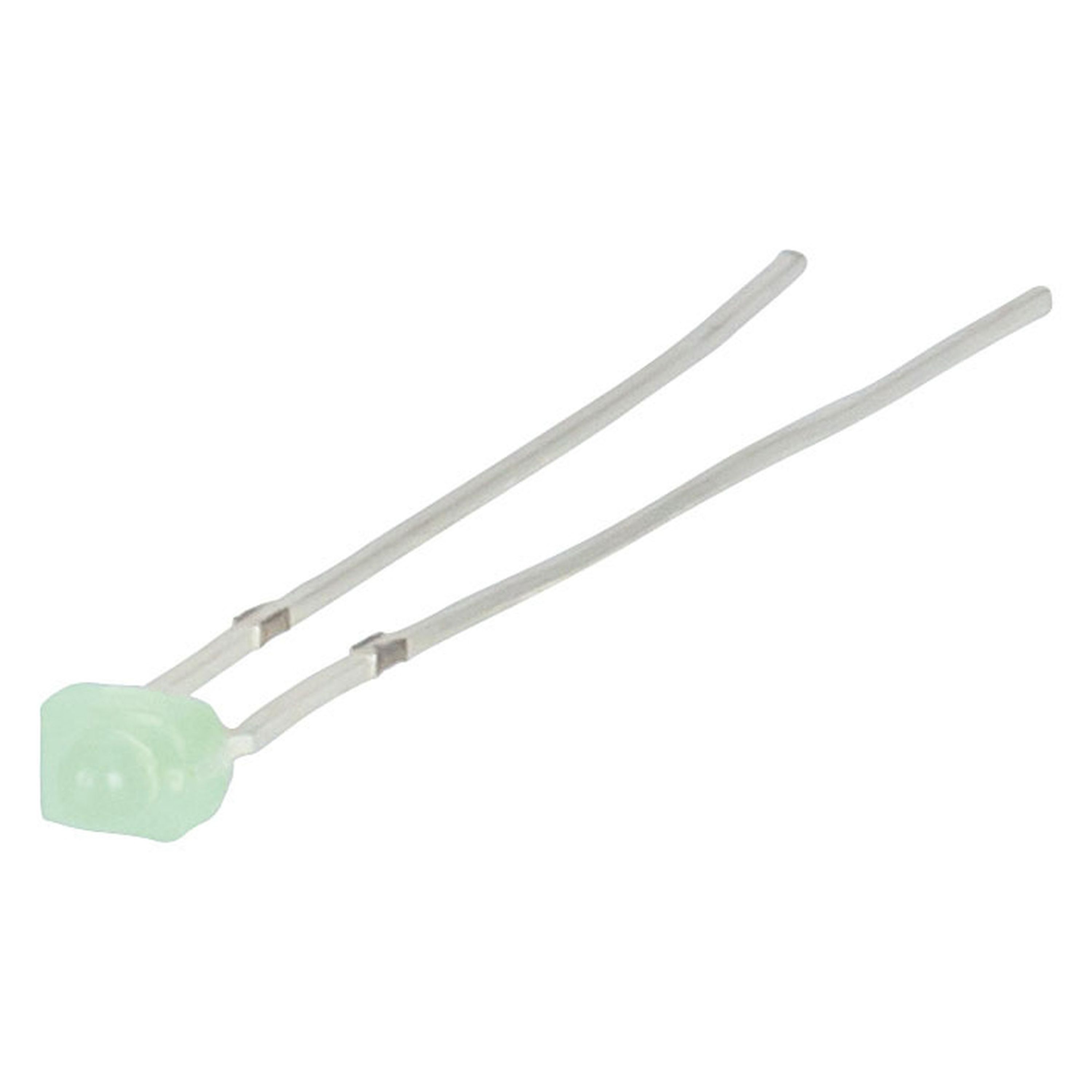

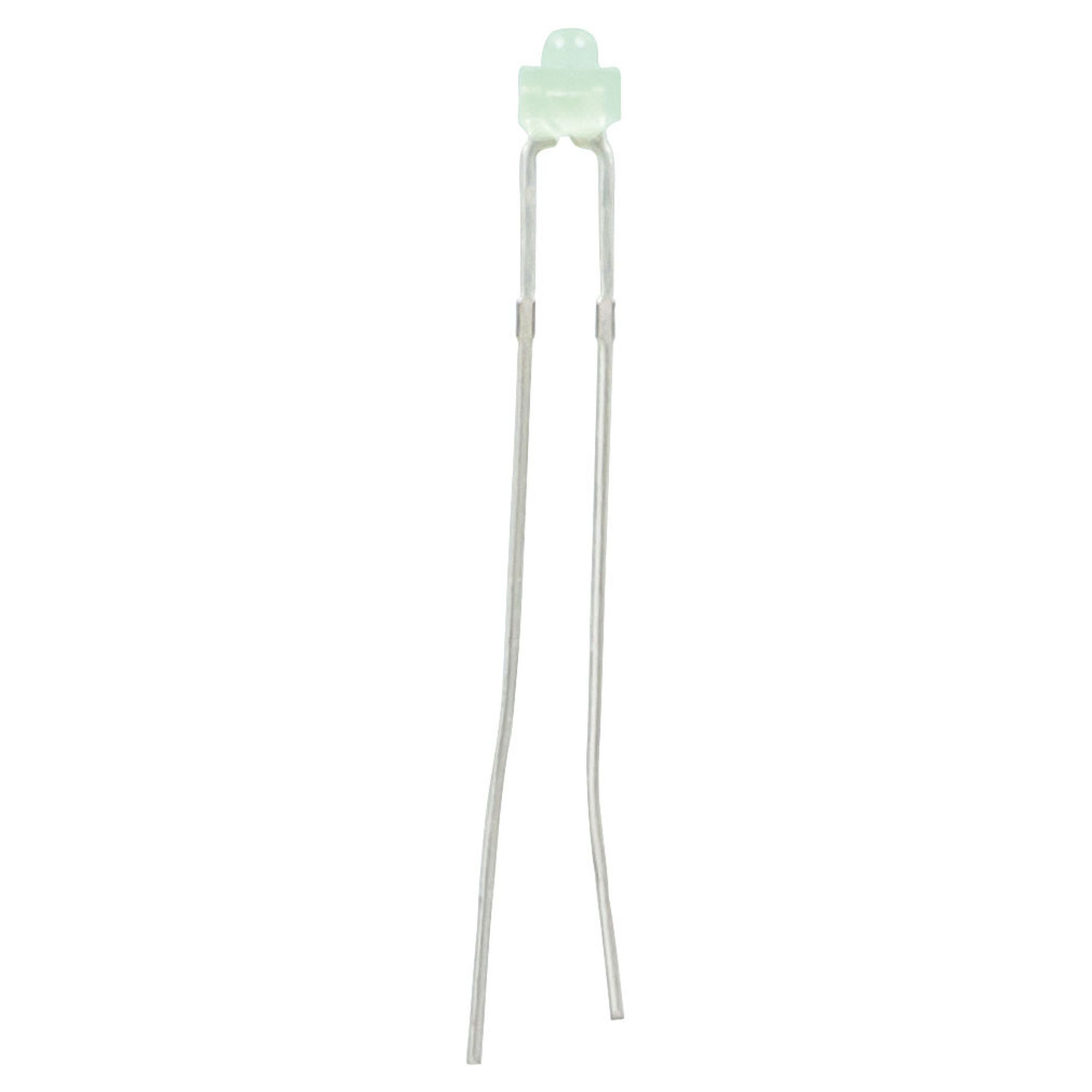

Green 2mm LED 2200mcd Tower Type Diffused
- Cat No:
- ZD0070
In Stock
$1.10
Description
A green through-hole diffused tower type LED that fits into a 1.8mm hole in a panel or enclosure.
• 5 colours to choose from
Specifications
- LED Type
- 2mm Tower Type LED
- Illumination Type
- Single Colour
- Light Colour
- Green
- Light Wavelength
- 520nm, 525nm
- Lens Type
- Diffused
- Viewing Angle
- 60°
- Intensity
- 2200mcd
- V<sub>f (typ)</sub> - Typical Forward Voltage
- 3.2V
- I<sub>f (typ)</sub> - Typical Forward Current
- 20mA
- Resistor for 5VDC
- 91Ω
- Resistor for 9VDC
- 270Ω
- Resistor for 12VDC
- 470Ω
- Diameter
- 2mm
- Packaged Dimensions
- 4 x 1 x 1 cm
